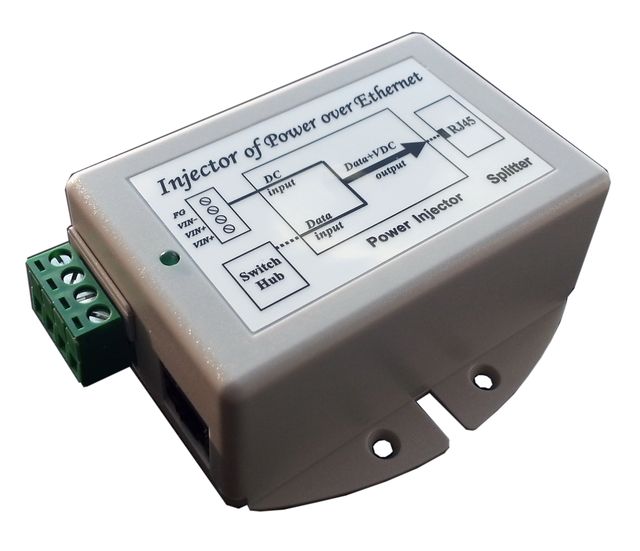

Tycon Power TP-DCDC-1224G 24V Passive PoE Output Gigabit Injector
The TP-DCDC-1224G DC to DC converters offered by Tycon Power Systems are a low cost and high reliability solution for those requiring 24VDC Gigabit Power Over Ethernet voltage from a 12 or 24V battery system.
The Tycon Power TP-DCDC-1224G has an integrated Gigabit PoE injector to apply the regulated 24VDC to the CAT5 Ethernet cable. The input voltage must be between 9VDC and 36VDC. They accept data-in to a shielded RJ45 Jack and provide data-out and PoE power on the shielded RJ45 output jack.
The Tycon Power TP-DCDC-1224G works by supplying power on the Ethernet pins 4,5(V+) and 7,8(V-). They have various protections for surge, short circuit and overload. The units have power output of 19W.
Tycon Power TP-DCDC-1224G Features:
- Input Voltage 9-36VDC; Output 24VDC
- Integrated Gigabit PoE Inserter
- High Power 19W
- Short Circuit, Over Current and Over Voltage Protection
- High Temperature Operation
- Removable Wire Terminal Input for up to 12AWG wires
Dimensions: 85mm x 76mm x 36mm
Weight: 134g
