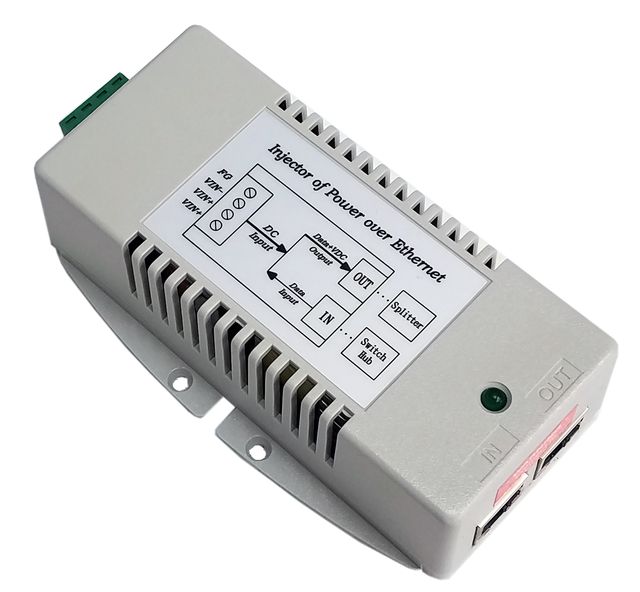

    Tycon Power TP-DC-2448GDx2-HP Gigabit Dual Output 802.3at PoE Injectors 18-36V

    Tycon Power 18-36VDC IN. Two 802.3af/at output ports with Gigabit data passthrough. Powers two PoE devices from a single 24VDC voltage source. Part Number: TP-DC-2448GDX2-HP


    • • Input Voltage 24VDC

    • • Dual 802.3af/at outputs

    • • High Power Output to 70W

    • • Surge Protected to 15kV

    • • Dual DC Inputs for Connecting 2 Power Sources

    • • 10/100/1000 Data Compatibility, Shielded Connectors

    • • Short Circuit, Over Current and Reverse/Over Voltage Protection

    • • Industrial Temperature Range, DIN Rail Mountable


    • • 24VDC Remote Power Systems running on batteries

    • • Power a Camera and Wireless using a single PoE Injector

    • • Power a Wireless AP and Backhaul using a single PoE injector

    • • PoE Lighting Applications

    The TP-DC-2448GDX2-HP is a unique high power PoE injector with Dual 802.3af/at compatible outputs. This means that two devices can be powered from a single PoE injector. The data path between the devices is handled by the injector so no PoE switch is required.

    They have two DC inputs for connecting 2 power sources, like a primary and backup power source. They have various protections for short circuit, overload and surges caused by ESD or lightning. The built-in surge protection protects sensitive connected devices from damage due to surges on data and PoE lines. All 8 wires are protected.

    The input voltage and output voltage are isolated to avoid any grounding or negative voltage issues.
