Tycon Power TP-DC-1256G-VHP 10-60VDC IN, 56VDC PASSIVE POE OUT DCDC

https://streakwave.com.au/web/image/product.template/1236/image_1920?unique=d09026b

Product Code: TP-DC-1256G-VHP

Barcode: 1PTP-DC-1256G-VHP

384.12 incl. GST 384.12 AUD 384.12

339.00


    This combination does not exist.

    Add to Cart

    Tycon Power
    Tycon Power

    Tycon Power Systems designs and manufactures turnkey remote power systems utilizing solar and wind power and accessories including a variety of unique PoE and power conversion products. Tycon Power® products include; industrial strength outdoor PoE switches, midspan power inserters, PoE surge protection, DC to DC converters, and a large selection of accessories.


    100% Original
    Fast Delivery


    Share this product:

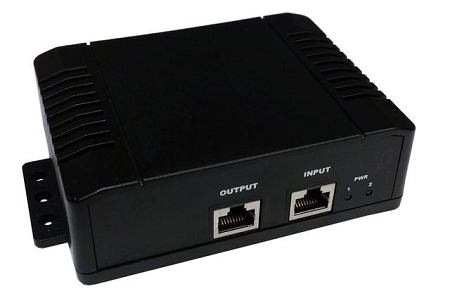

    Tycon Power TP-DC-1256G-VHP 10-60VDC IN, 56VDC PASSIVE POE OUT DCDC


    Tycon Power Gigabit compatible TP-DC-1256G-VHP and TP-DC-1256GD-VHP area special very high power DC to DC converters / POE inserters designed especially for Ubiquiti airFiber™ antenna systems and other systems which require high power passive POE such as Axis High Power POE PTZ security cameras. The unique POE inserter supplies 56VDC POE power on all 8 Ethernet wires (4 Pair).


    Tycon Power TP-DC-1256G-VHP Features:

    • Remote power or backup power for Ubiquiti airFiber™ antennas
    • Input Voltage 10-60VDC; Output 56VDC Passive POE
    • Integrated POE Inserter
    • High Power 70W
    • Short Circuit, Over Current and Over Voltage Protection
    • Industrial Temperature Operation
    • Removable Wire Terminal Input for up to 12AWG wires


    Dimensions: 125mm x 95mm x 38mm

    Weight: 255g
