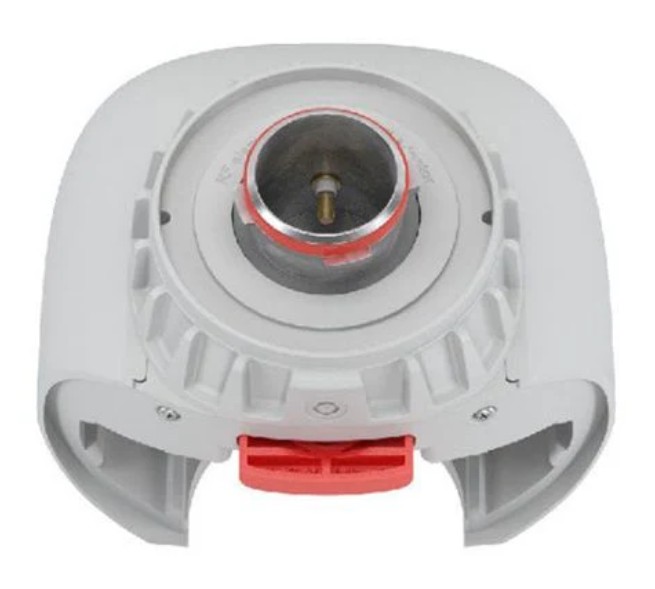

RF Elements TP-ADAP-E2K Adaptor for ePMP™ 2000 AP, ePMP4500L and 400c

The RF elements TwistPort Adaptor for Cambium ePMP 2000 AP makes the ePMP 2000 series Cambium ePMP 2000 5GHz Access Point compatible with all TwistPort Antennas. TwistPort Adaptors are equipped with our original quick-locking waveguide port.

Connecting and disconnecting the Cambium ePMP 2000 AP into the TwistPort Adaptor is very simple and requires no tools.

Compatible Wireless Platforms:

• RF Elements: Any TwistPort Antenna
• Cambium Networks: C050900A033A, C058900A132A, C050900A031A, C050900A231A, C050900A131A, C050900L033A, C058900L132A, C050900L031A, C050900L231A, C050900L131A, C050900S2KLA

Product Features:

• Antenna Connection: TwistPort- Quick Locking Waveguide Port
• Radio Connection: 2x Slide-On RP-SMA
• Materials:
  Insert- Aluminum Alloy
  Adaptor- UV stabilized and weather-resistant ABS Plastic
• Flame Rating: UL 94 HB
• Temperature: -40°C to +60°C (-40°F to +140°F)
• Wind Survival: 160 Km/H

Product Specifications:

• Frequency Range: 5180-6400 MHz
• Polarization: Dual Linear H + V
• VSWR Max: 1.8
• Impedance: 50 Ohm

Product Includes:

(1) TwistPort Adaptor
