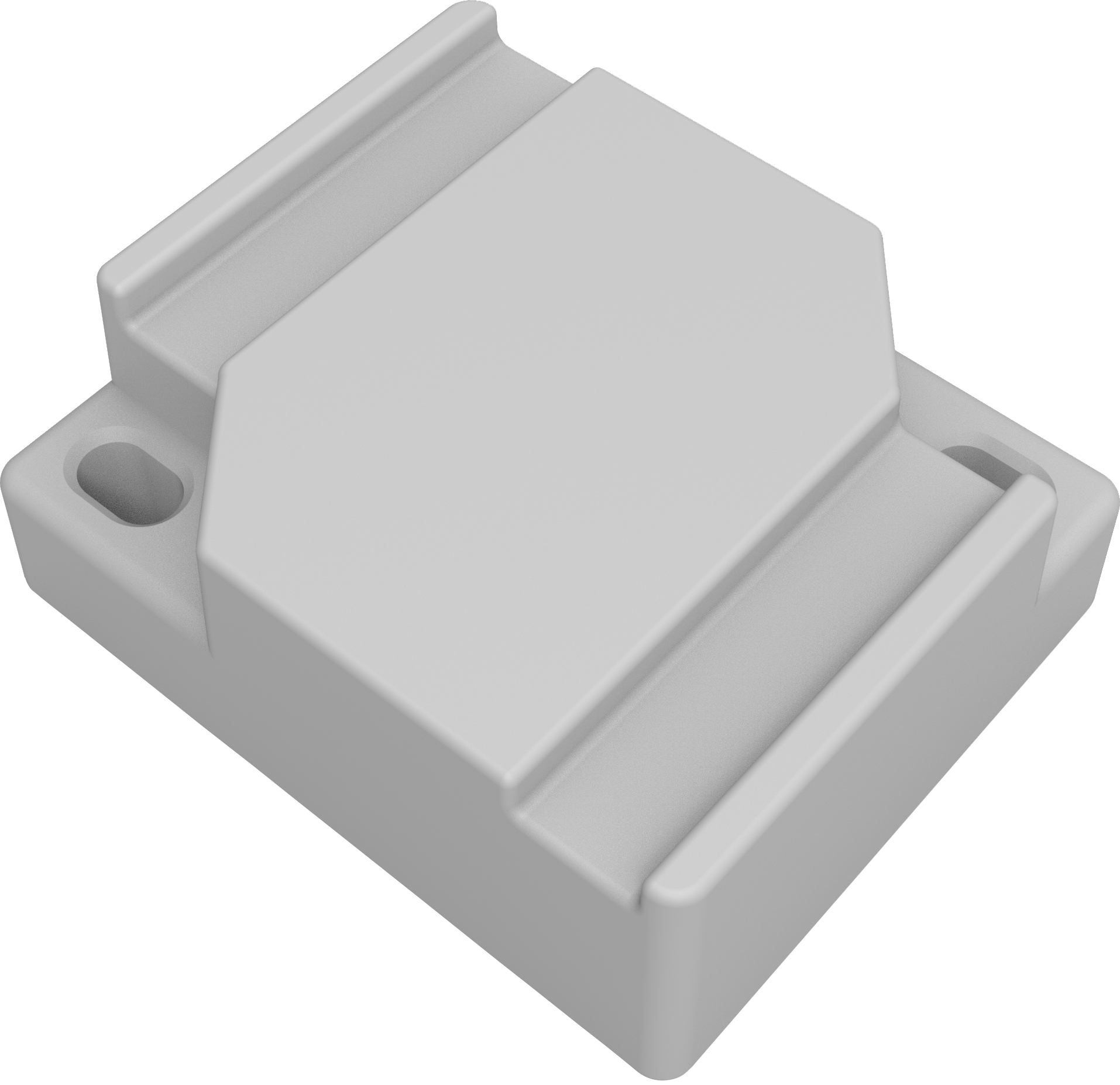

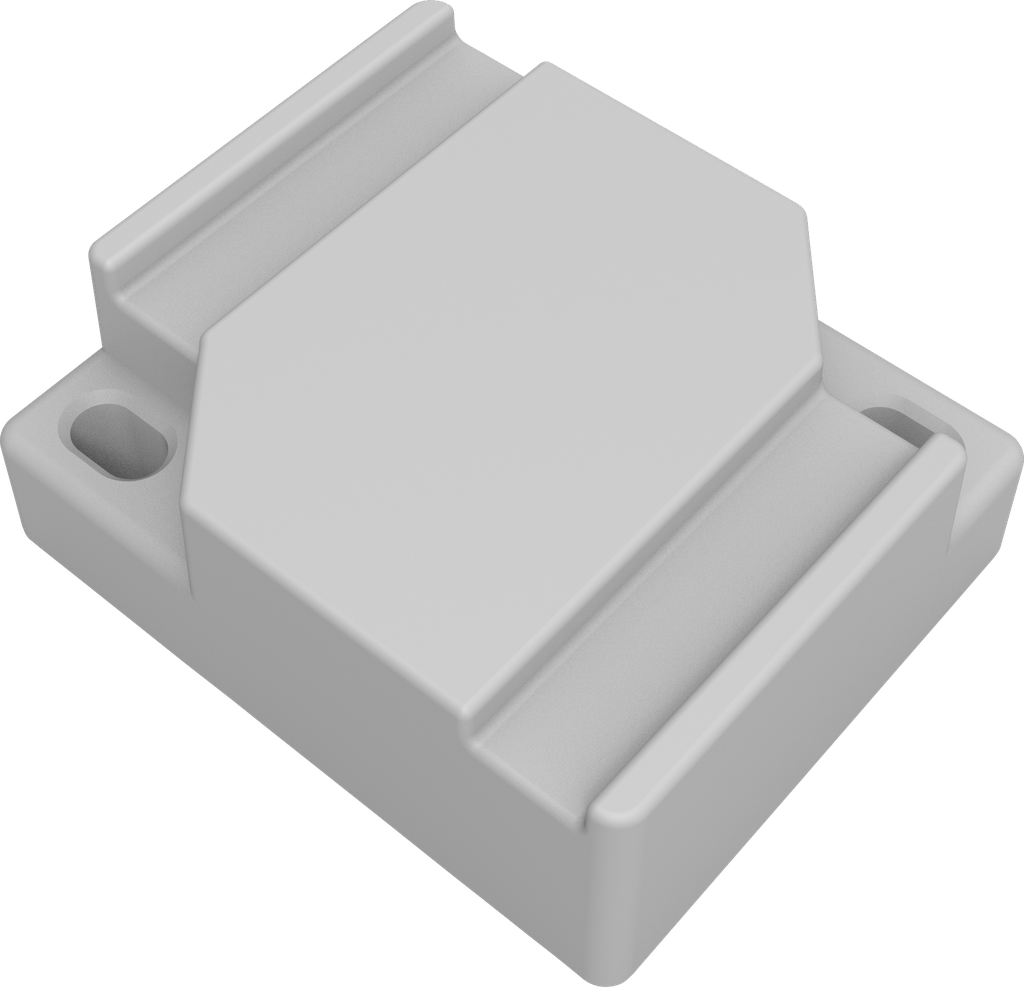

The TG-BT5-OUT is a sealed heavy-duty Bluetooth Low Energy tag for industrial asset tracking, telemetry and condition monitoring. Its IP69K enclosure, temperature sensor and accelerometer suit equipment, construction, cold-chain and demanding outdoor deployments.

Heavy-duty outdoor telemetry: sealed IP69K construction, temperature sensing, acceleration and tilt events, long battery life, and flexible BLE packet formats.

Key features

• Bluetooth 5.2 with MikroTik telemetry, iBeacon and Eddystone packet formats.
• IP69K sealed enclosure for dust, high-pressure spray and demanding outdoor or industrial environments.
• Built-in accelerometer for movement, tilt and free-fall events.
• Built-in temperature sensing with ±0.5 °C typical accuracy.
• NFC-encoded serial number, condition monitoring and logging, plus optional AES encryption.
• 550 mAh battery with an estimated 5–15 year life depending on update interval and configuration.
• Designed for MikroTik KNOT and other compatible Bluetooth IoT gateways.

Ideal applications

• Heavy equipment and construction-site asset tracking.
• Cold-chain and industrial condition monitoring.
• Outdoor equipment, materials, containers and telemetry deployments.

Technical specifications

• Product code: TG-BT5-OUT.
• Bluetooth: Version 5.2; 1.5 dBi antenna gain; 360° beam width.
• Sensors: Accelerometer and temperature sensor.
• Storage: 512 KB flash.
• Battery: 550 mAh; estimated 5–15 years depending on update interval.
• Dimensions: 38 × 32 × 16 mm.
• Weight: 27 g.
• Mounting: Strapping or M3 screw mounting.
• Operating temperature: -20 to 85 °C.
• Protection: IP69K.
• MTBF: Approximately 100,000 hours at 25 °C.
• Certifications: CE, FCC, IC, EAC and RoHS.
• Supported packet formats: MikroTik proprietary telemetry, Eddystone TLM and iBeacon.

Download the MikroTik TG-BT5 brochure

Why choose TG-BT5-OUT?

The TG-BT5-OUT combines low-power Bluetooth telemetry with practical mounting and sensor capabilities, helping organisations monitor assets and events without adding wired power or complex endpoint infrastructure.
