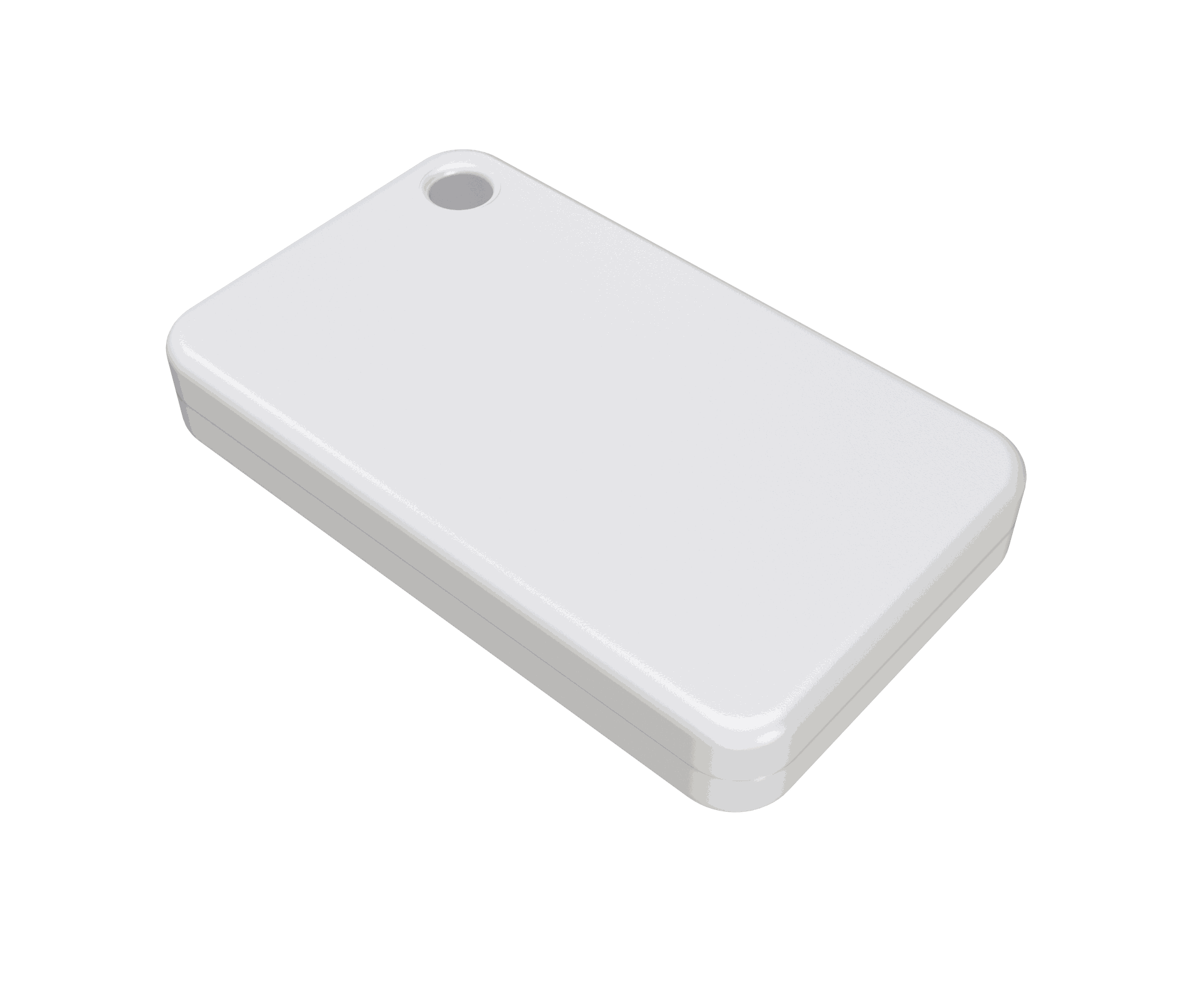

MikroTik TG-BT5-IN Indoor Bluetooth 5.2 Asset Tracking Tag

MikroTik TG-BT5-IN Indoor Bluetooth 5.2 Asset Tracking Tag

The TG-BT5-IN is a compact indoor Bluetooth Low Energy tag for inventory, proximity and asset tracking. It broadcasts identification and telemetry through MikroTik KNOT or another compatible BLE gateway and includes an accelerometer for movement, tilt and free-fall events.

Key features

• Bluetooth 5.2 with MikroTik telemetry, iBeacon and Eddystone packet formats.
• Built-in accelerometer for movement, tilt, orientation and free-fall detection.
• Configurable advertising interval for balancing reporting frequency and battery life.
• 220 mAh battery with an estimated 2–6 year life depending on update interval and configuration.

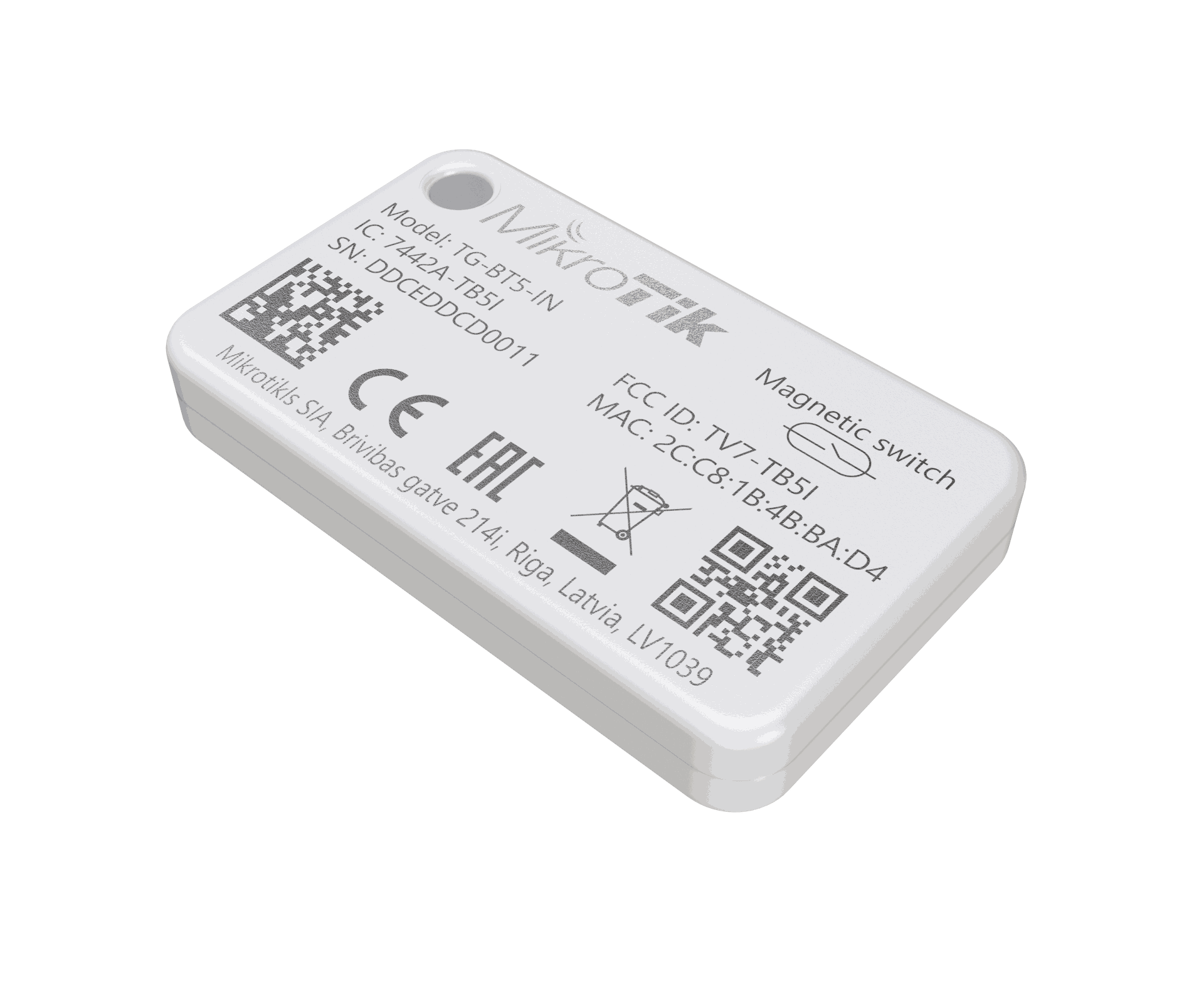

• Optional AES encryption and magnet activation.
• Compact splash-resistant IP54 enclosure for indoor use.
• Designed for MikroTik KNOT and other compatible Bluetooth IoT gateways.

Ideal applications

• Warehouse inventory and cargo-arrival tracking.
• Tools, electrical equipment and construction-site asset tracking.
• Indoor proximity, movement, tilt and handling telemetry.

Technical specifications

• Product code: TG-BT5-IN.
• Bluetooth: Version 5.2; 1.5 dBi antenna gain; 360° beam width.
• Sensor: Accelerometer.
• Storage: 352 KB flash.
• Battery: 220 mAh; estimated 2–6 years depending on update interval.
• Dimensions: 37 × 22 × 6 mm.
• Weight: 7 g.
• Mounting: Hanging, M3 screw or included double-sided 3M tape.
• Operating temperature: 0 to 70 °C.
• Protection: IP54.
• MTBF: Approximately 100,000 hours at 25 °C.
• Certifications: CE, FCC, IC, EAC and RoHS.
• Supported packet formats: MikroTik proprietary telemetry, Eddystone TLM and iBeacon.

Download the MikroTik TG-BT5 brochure

Why choose TG-BT5-IN?

The TG-BT5-IN combines low-power Bluetooth telemetry with practical mounting and sensor capabilities, helping organisations monitor assets and events without adding wired power or complex endpoint infrastructure.
