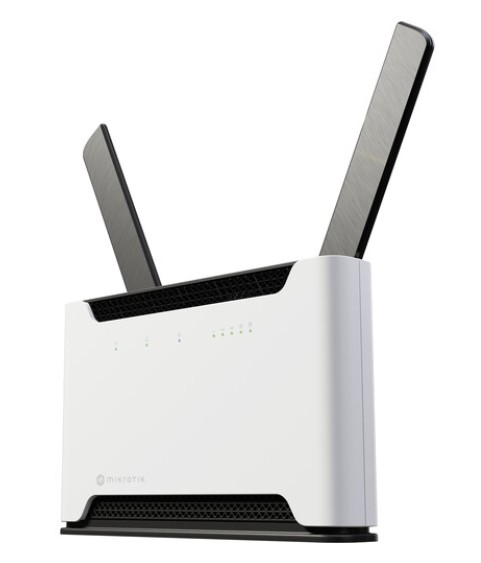

MikroTik S53UG+5HaxD2HaxD-TC&R11e-LTE7 Chateau ax LTE7 2.5G Ethernet
Chateau LTE7 ax
Your favorite high-performance home and office LTE router just got a major upgrade. Chateau LTE7 ax keeps the same powerful hardware, sleek design, and Wi-Fi 6 performance – but now features an LTE Category 7 modem, expanded frequency support, and a significantly lower price than the previous LTE6 ax version.
Powerful 1.8 GHz Quad-core ARM CPU
Strong Dual-band, Dual-chain radio
Fast and respondive LTE Cat7 modem
Container support
4x Gigabit ethernet ports
1 GB of RAM
Are you tired of those suspicious, low-quality default routers from your service providers? So many households are switching to mobile internet, but those default routers can really ruin the experience. That’s why we decided to take everything we’ve learned over the last 20 years of networking excellence and create a single device that will make most households happy: the MikroTik Chateau.
Why upgrade to CAT7?
Twice the upload speed
Depending on the LTE tower infrastructure and other variables
Expanded frequency support
Including Band 28 (700 MHz) & Band 32 (1500 MHz) for better performance in congested areas
Carrier aggregation (2×CA)
For higher efficiency and responsiveness in busy networks.
Specification
Specifications- Product codeS53UG+5HaxD2HaxD-TC&R11e-LTE7
- ArchitectureARM 64bit
- CPUIPQ-6010
- CPU core count4
- CPU nominal frequencyauto MHz
- CPU Threads count4
- Switch chip modelIPQ-6010
- RouterOS license4
- Operating SystemRouterOS v7
- Size of RAM1 GB
- Storage size128 MB
- Storage typeNAND
- MTBFApproximately 200'000 hours at 25C
- Tested ambient temperature-40°C to 70°C
Powering- Number of DC inputs1 (DC jack)
- DC jack input Voltage12-28 V
- Max power consumption21.5 W
- Max power consumption without attachments15.5 W
- Cooling typePassive
Mobile- 3G CategoryR8 (DL: 42.2 Mbps; UL: 5.76 Mbps)
- 3G bands1 (2100 MHz)
5 (850 MHz)
8 (900 MHz)
3 (1800 MHz) - LTE Category7 (DL: 300 Mbps; UL: 100 Mbps)
- MIMO DL2x2
- MIMO UL1x1
- LTE FDD bands1 (2100 MHz)
3 (1800 MHz)
5 (850 MHz)
7 (2600 MHz)
8 (900 MHz)
20 (800 MHz)
28 (700 MHz)
32 (1500 MHz) - LTE TDD bands38 (2600 MHz)
40 (2300 MHz)
41 (2500 MHz) - TAC35312597
Wireless specifications- Wireless 2.4 GHz Max data rate574 Mbit/s
- Wireless 2.4 GHz Number of chains2
- Wireless 2.4 GHz standards802.11b/g/n/ax
- Antenna gain dBi for 2.4 GHz3
- Wireless 2.4 GHz chip modelQCN-5022
- Wireless 2.4 GHz generationWi-Fi 6
- Wireless 5 GHz Max data rate1200 Mbit/s
- Wireless 5 GHz Number of chains2
- Wireless 5 GHz standards802.11a/n/ac/ax
- Antenna gain dBi for 5 GHz6
- Wireless 5 GHz chip modelQCN-5052
- Wireless 5 GHz generationWi-Fi 6
Ethernet- 10/100/1000 Ethernet ports4
- Number of 2.5G Ethernet ports1
Peripherals- Number of SIM slots1 Modem (Micro SIM)
- Number of USB ports1
- USB Power ResetYes
- USB slot typeUSB type A
- Max USB current (A)1
Other- CPU temperature monitorYes
- PCB temperature monitorYes
- Voltage MonitorYes
- Mode buttonYes
