MikroTik RBwsAP-5Hac2nD MikroTik wsAP ac lite In-wall Dual Concurrent 2.4GHz / 5GHz 3 port
MikroTik
MikroTik provides hardware and software for Internet connectivity. Our experience in using industry standard PC hardware and complete routing systems allowed us in 1997 to create the RouterOS software system that provides extensive stability, controls, and flexibility for all kinds of data interfaces and routing.
100% Original
Fast Delivery
Share this product:
MikroTik RBwsAP-5Hac2nD MikroTik wsAP ac lite In-wall Dual Concurrent 2.4GHz / 5GHz 3 port

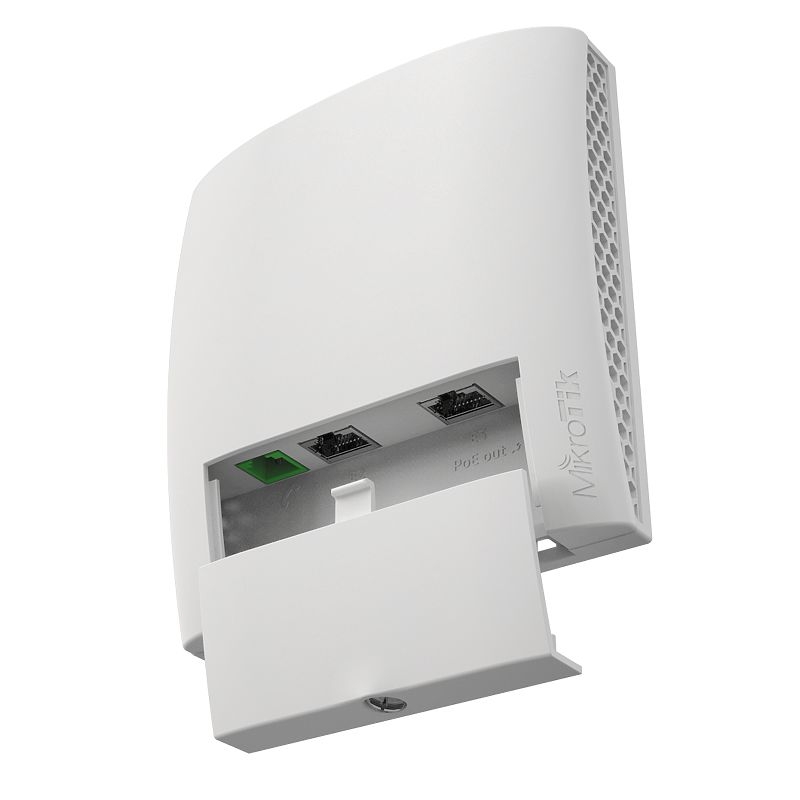

The wsAP ac lite is a perfect access point (AP) for hospitality networks (hotels, shopping malls, hospitals, airports etc.). It has an unobtrusive case that fits in standard wall power sockets. This way, the unit doesn’t attract attention and blends into any environment.
The wsAP has three Ethernet ports: one on the back side for easy PoE-in, and two LAN ports behind the front door. The device provides Dual concurrent 2.4 GHz and 5 GHz WiFi coverage, it supports 802.11ac, as well as legacy standards. A USB 2.0 port is provided, to charge mobile devices or for storage.
The device also has a pass through telephone jack (RJ11) to connect a desktop phone in a hotel room, for easier cable management. As a separate accessory you can order a special screw set (product code K50), that ensures the bottom door can only be opened by the owner. Mounting bracket fits US and EU most popular telecomunication sockets.
We have two versions available.
- wsAP ac lite-US (USA) is factory locked for 2412-2462MHz, 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.
- wsAP ac lite (International) supports 2412-2484MHz and 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).
Specifications:
Product code: RBwsAP-5Hac2nD
Architecture: MIPSBE
CPU: QCA9531
CPU core count: 1
CPU nominal frequency: 650 MHz
Dimensions: 112 x 126 x 30 mm
RouterOS licence: 4
Operating System: RouterOS
Size of RAM: 64 MB
Storage size: 16 MB
Storage type: FLASH
MTBF: Approximately 100'000 hours at 25C
Tested ambient temperature: -40°C to 60°C
Wireless capabilities:
Wireless 2.4 GHz Max data rate: 300 Mbit/s
Wireless 2.4 GHz number of chains: 2
Wireless 2.4 GHz standards: 802.11b/g/n
Antenna gain dBi for 2.4 GHz: 1.5
Wireless 2.4 GHz chip model: QCA9531
Wireless 2.4 GHz generation: Wi-Fi 4
Wireless 5 GHz Max data rate: 433 Mbit/s
Wireless 5 GHz number of chains: 1
Wireless 5 GHz standards: 802.11a/n/ac
Antenna gain dBi for 5 GHz: 3
Wireless 5 GHz chip model: QCA-9887
Wireless 5 GHz generation: Wi-Fi 5
AC speed: AC750
Ethernet:
10/100 Ethernet ports: 3
Peripherals:
Number of USB ports: 1
USB Power Reset: Yes
USB slot type: USB type A
Max USB current (A): 0.5
Powering:
Number of DC inputs: 1 (PoE-IN)
Max power consumption: 20 W
Max power consumption without attachments: 6 W
Cooling type: Passive
PoE in: 802.3af/at
PoE in input Voltage: 18-57 V
PoE-out:
PoE-out ports: Ether3
PoE out: Passive PoE
Max out per port output (input 18-30 V): 420 mA
Max out per port output (input 30-57 V): 420 mA
Max total out (A): 420 mA
Certification & Approvals:
Certification: CE, FCC, IC, EAC, ROHS
IP: IP20
Other:
Mode button: Yes
Wireless specifications:
2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 22 -96
11MBit/s 22 -89
6MBit/s 20 -93
54MBit/s 18 -74
MCS0 20 -93
MCS7 16 -71
5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 23 -93
54MBit/s 20 -75
MCS0 23 -93
MCS7 19 -71
MCS9 16 -63
