    MikroTik RBwAPR-2nD wAP R with miniPCI slot, RouterOS L4

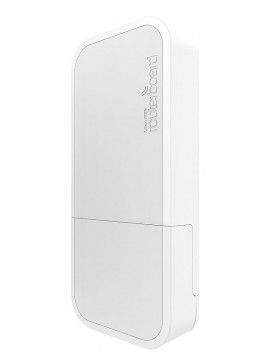

    The wAP R is a small weatherproof 2.4Ghz wireless access point with a miniPCI-e slot (so you can use your own LTE card) and LTE antennas. Unit comes with one 10/100 Ethernet LAN port for your wired devices.

    The weatherproof device can be mounted outside your house, in the vehicle, on your porch or anywhere else where you need wireless access from your phone or computer. It also includes a desktop stand so you can put it inside the building near a window.

    Unit has the several powering options - 9-30V PoE-in by Ethernet port, DC jack and automotive connector, very handy in mobile devices like car, bus or train.

    Product code: RBwAPR-2nD
    Architecture: MIPSBE
    CPU: QCA9531
    CPU core count: 1
    CPU nominal frequency: 650 MHz
    Dimensions: 185 x 85 x 30mm
    RouterOS licence: 4
    Operating System: RouterOS
    Size of RAM: 64 MB
    Storage size: 16 MB
    Storage type: FLASH
    MTBF: Approximately 100'000 hours at 25C
    Tested ambient temperature: -40°C to 60°C

    Wireless capabilities:
    Wireless 2.4 GHz Max data rate: 300 Mbit/s
    Wireless 2.4 GHz number of chains: 2
    Wireless 2.4 GHz standards: 802.11b/g/n
    Antenna gain dBi for 2.4 GHz: 2
    Wireless 2.4 GHz chip model: QCA9531
    Wireless 2.4 GHz generation: Wi-Fi 4

    10/100 Ethernet ports: 1

    Number of SIM slots: 1 Modem (Mini SIM)
    MiniPCI-e slots: 1

    Number of DC inputs: 3 (DC jack, PoE-IN, Automotive)
    DC jack input Voltage: 9-30 V
    Automotive input Voltage: 9-30 V
    Max power consumption: 6 W
    Cooling type: Passive
    PoE in: Passive PoE
    PoE in input Voltage: 9-30 V

    Certification & Approvals:
    Certification: CE, FCC, IC, E-MARK, EAC, ROHS

    PCB temperature monitor: Yes
    Voltage Monitor: Yes

    Wireless specifications:
    2.4 GHz    Transmit (dBm)   Receive Sensitivity
    1MBit/s       22                   -96
    11MBit/s     22                   -89
    6MBit/s       20                   -93
    54MBit/s     18                   -74
    MCS0       20                   -93
    MCS7       16                   -71
