MikroTik RBM33G 800MHz 256MB miniPCIe RouterOS L4

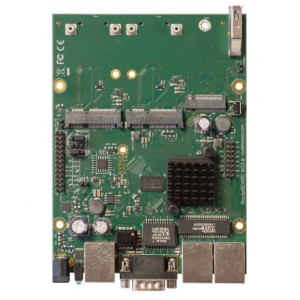

The M33G is a fully featured RouterBOARD device perfect for using in your own enclosure or building a custom solution. It uses the same PCB form factor and same mounting holes as it's predecessors.
The M33G features a new MediaTek two core CPU running at 880MHz, 256MB of DDR3 RAM, and three gigabit ethernet ports. It features two miniPCIe 3G/LTE modems (two SIM slots provided) and one miniPCIe and one USB 3G/LTE modem leaving the other miniPCIe slot for a 802.11 wireless card.
The device can be powered by PoE through its gigabit ethernet connector or through the DC power jack.
|CPU core count||2|
|CPU nominal frequency||880 MHz|
|CPU Threads count||4|
|Size of RAM||256 MB|
|Storage size||16 MB|
|MTBF||Approximately 100'000 hours at 25C|
|Tested ambient temperature||-40°C to 70°C|
|IPsec hardware acceleration||Yes|
|Number of DC inputs||2 (PoE-IN, DC jack)|
|DC jack input Voltage||11-28 V|
|Max power consumption||24 W|
|Max power consumption without attachments||5 W|
|PoE in||Passive PoE|
|PoE in input Voltage||11-28 V|
|10/100/1000 Ethernet ports||3|
|Number of SIM slots||2 Modem (Mini SIM)|
|Serial console port||RS232|
|Number of USB ports||1|
|USB Power Reset||Yes|
|USB slot type||USB 3.0 type A|
|Max USB current (A)||1|
Certification & Approvals
|Certification||CE, EAC, ROHS|
The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
