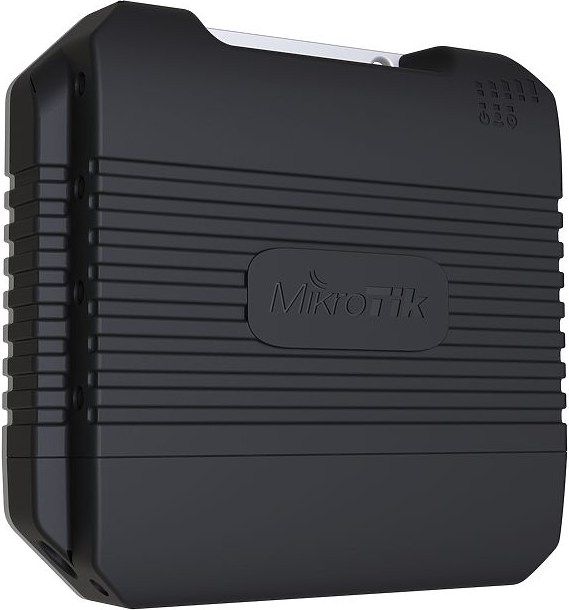

MikroTik RBLtAP-2HnD LtAP 3 Sim Card Heavy-duty AP

Introducing LtAP

Its high power 2.4 GHz 802.11b/g/n wireless capability. You can also use a Gigabit Ethernet LAN port for your wired devices. There are several power options – DC jack, POE-in and automotive.

The rugged and extremely durable case with a special wall mounting kit will be perfect for almost any challenge: from public transportation, food trucks or logistics to harsh winter and stormy desert environment. LtAP can handle any temperature from -40 C‎° to +70 C‎°. It is a perfect solution for tracking vehicles in real time. We have provided a simple tracking application example in the RouterOS documentation to help you get started. LtAP even has 3 Mini-SIM slots for easy roaming management. Saves your time and money worldwide!

The unit comes with 2 miniPCIe slot, offering many expansion options. For example, you can install a second LTE modem for redundancy or a 5GHz interface to have dual concurrent 2.4 GHz / 5GHz AP + LTE.

LtAP has a RS232 serial port, which gives you console access for debugging, as well as full size USB for other devices.

The new LtAP is more than an access point – it is what you need it to be wherever you need it to be.

Product code: RBLtAP-2HnD

Architecture: MMIPS

CPU: MT7621A

CPU core count: 2

CPU nominal frequency: 880 MHz

CPU Threads count: 4

RouterOS licence: 4

Operating System: RouterOS

Size of RAM: 128 MB

Storage size: 16 MB

Storage type: FLASH

MTBF: Approximately 200'000 hours at 25C

Tested ambient temperature: -40°C to 70°C

IPsec hardware acceleration: Yes

Number of DC inputs: 3 (DC jack, PoE-IN, Automotive)

DC jack input Voltage: 12-30 V

Automotive input Voltage: 12-27 V

Max power consumption: 24 W

Max power consumption without attachments: 12 W

Cooling type: Passive

PoE in: Passive PoE

PoE in input Voltage: 12-30 V

Wireless 2.4 GHz Max data rate: 300 Mbit/s

Wireless 2.4 GHz number of chains: 2

Wireless 2.4 GHz standards: 802.11b/g/n

Antenna gain dBi for 2.4 GHz: 2.5

Wireless 2.4 GHz chip model: AR9382

Wireless 2.4 GHz generation: Wi-Fi 4

10/100/1000 Ethernet ports: 1

Number of SIM slots: 3 Modem (Mini SIM)

MiniPCI-e slots: 2

Serial console port: RS232

Number of USB ports: 1

USB Power Reset: Yes

USB slot type: USB type A

Max USB current (A): 1

PCB temperature monitor: Yes

Voltage Monitor: Yes

GNSS standards: GPS

Certification: CE, FCC, IC, E-MARK, EAC, ROHS

IP: IP54

2.4 GHz    Transmit (dBm)      Receive Sensitivity

1MBit/s         25                            -100

11MBit/s 25                            -94

6MBit/s         26                            -96

54MBit/s 23                            -78

MCS0         26                            -96

MCS7         22                            -73
