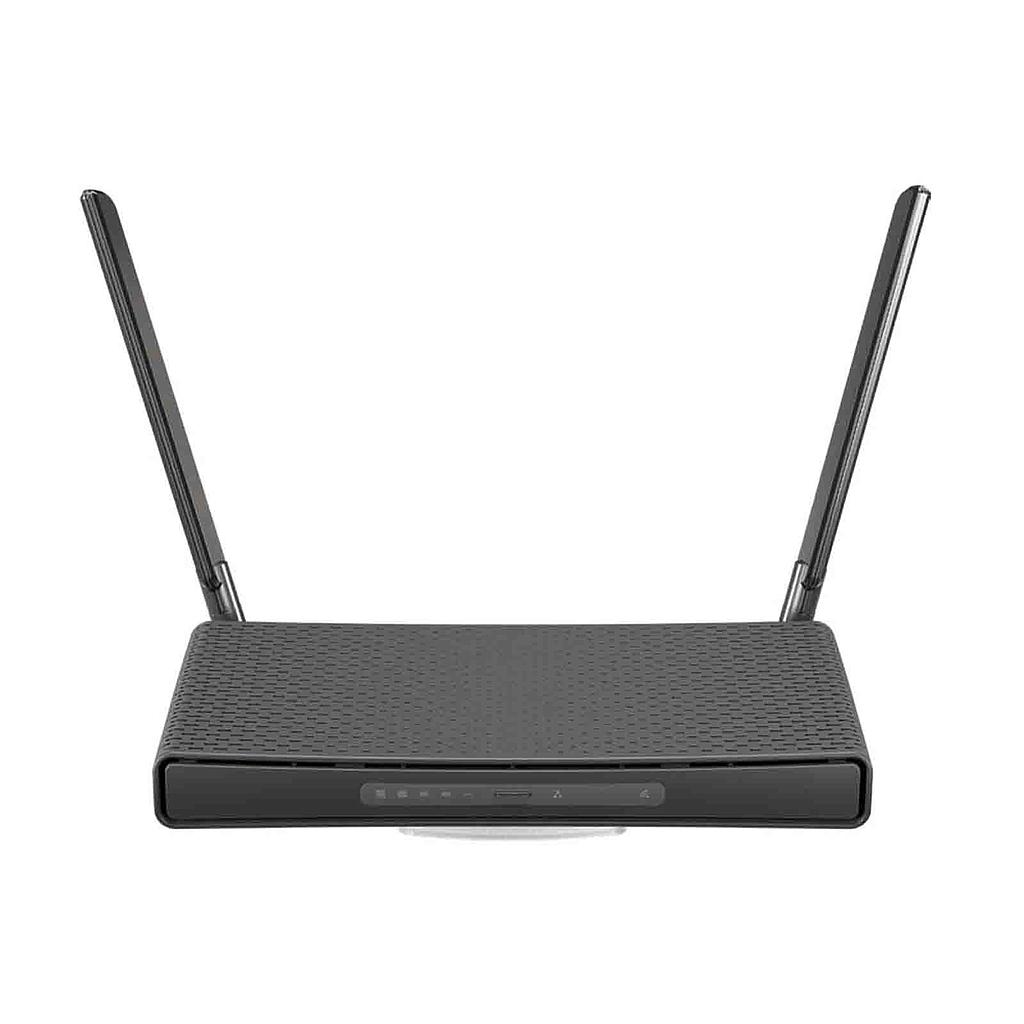

MikroTik RBD53iG-5HacD2HnD hAP ac³ Dual Band router 5 Gigabit Ports and 1 Passive POE
Forget about endless searching for the perfect router and scrolling through an eternity of reviews and specifications! We have created a single affordable home access point that has all the features you might need for years to come.
Is your old router struggling to reach every corner of your home? Well, forget about that! We have included external high gain wireless antennas with outstanding coverage. Only strong and stable wireless connection in every room from now on!
With 5 Gigabit Ethernet ports, 256 MB of RAM and quad-core CPU, hAP ac³ can satisfy even the biggest and most demanding households. With PoE support, it can power or be powered by other devices. There is a 128 MB NAND and a full-size USB port that you can use to add extra storage. The new enclosure allows mounting the device vertically or horizontally. A wall mount set is also included.
Specifications:
Product code: RBD53iG-5HacD2HnD
Architecture: ARM 32bit
CPU: IPQ-4019
CPU core count: 4
CPU nominal frequency: 716 MHz
Dimensions: 251 x 129 x 39 mm
RouterOS licence: 4
Operating System: RouterOS
Size of RAM: 256 MB
Storage size: 128 MB
Storage type: NAND
MTBF: Approximately 200'000 hours at 25C
Tested ambient temperature: -40°C to 70°C
IPsec hardware acceleration: Yes
Wireless capabilities:
Wireless 2.4 GHz Max data rate: 300 Mbit/s
Wireless 2.4 GHz number of chains: 2
Wireless 2.4 GHz standards: 802.11b/g/n
Antenna gain dBi for 2.4 GHz: 3
Wireless 2.4 GHz chip model: IPQ-4019
Wireless 2.4 GHz generation: Wi-Fi 4
Wireless 5 GHz Max data rate: 867 Mbit/s
Wireless 5 GHz number of chains: 2
Wireless 5 GHz standards: 802.11a/n/ac
Antenna gain dBi for 5 GHz: 5.5
Wireless 5 GHz chip model: IPQ-4019
Wireless 5 GHz generation: Wi-Fi 5
WiFi speed: AC1200
Ethernet:
10/100/1000 Ethernet ports: 5
Number of 1G Ethernet ports with PoE-out: 1
Peripherals:
Number of USB ports: 1
USB Power Reset: Yes
USB slot type: USB type A
Max USB current (A): 1
Powering:
Number of DC inputs: 2 (DC jack, PoE-IN)
DC jack input Voltage: 12-28 V
Max power consumption: 30 W
Max power consumption without attachments: 12 W
Cooling type: Passive
PoE in: Passive PoE
PoE in input Voltage: 18-28 V
PoE-out:
PoE-out ports: Ether5
PoE out Passive: PoE
Max out per port output (input 18-30 V): 0.5 A
Max total out (A): 0.5 A
Certification & Approvals:
Certification: CE, FCC, IC, EAC, ROHS
IP: IP20
Other:
Mode button: Yes
Wireless specifications:
2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 25 -100
11MBit/s 25 -94
6MBit/s 26 -96
54MBit/s 23 -78
MCS0 26 -96
MCS7 22 -73
5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 26 -96
54MBit/s 22 -80
MCS0 26 -96
MCS7 21 -75
MCS9 19 -70
