MiktoTik RBD52G-5HacD2HnD-TC Mikrotik hAP ac² ac2

https://streakwave.com.au/web/image/product.template/1800/image_1920?unique=1287bfe

Product Code: RBD52G-5HacD2HnD-TC

Barcode: 4752224003539

149.49 incl. GST 149.49 AUD 149.49

131.96


    This combination does not exist.

    Add to Cart

    MikroTik
    MikroTik

    MikroTik provides hardware and software for Internet connectivity. Our experience in using industry standard PC hardware and complete routing systems allowed us in 1997 to create the RouterOS software system that provides extensive stability, controls, and flexibility for all kinds of data interfaces and routing.


    100% Original
    Fast Delivery


    Share this product:

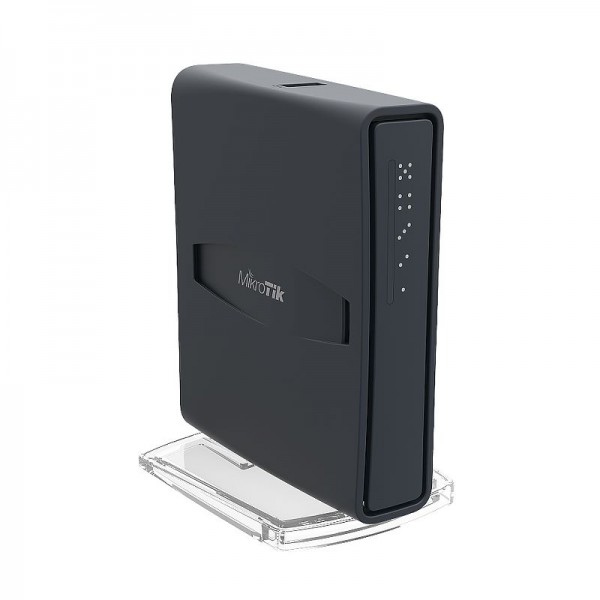

    MikroTik RBD52G-5HacD2HnD-TC Mikrotik hAP ac²


    The hAP ac² is a Dual-concurrent Access Point, that provides Wifi coverage for 2.4 GHz and 5 GHz frequencies at the same time. Five 10/100/1000 Ethernet ports provide Gigabit connections for your wired devices, USB can be used for external storage or 4G/LTE modem, and device supports IPsec hardware acceleration.

    New design universal case allows unit to be positioned either horizontally (desktop) or vertically (tower case). Wall anchored mounting kit is provided.

    We have two versions available.

    - hAP ac²-US (USA) is factory locked for 2412-2462MHz, 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.

    - hAP ac² (International) supports 2412-2484MHz and 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).

    Specifications:
    Product code: RBD52G-5HacD2HnD-TC
    Architecture: ARM 32bit
    CPU: IPQ-4018
    CPU core count: 4
    CPU nominal frequency: 716 MHz
    Dimensions: 34 x 119 x 98mm
    RouterOS licence: 4
    Operating System: RouterOS
    Size of RAM: 128 MB
    Storage size: 16 MB
    Storage type: FLASH
    MTBF: Approximately 100'000 hours at 25C
    Tested ambient temperature: -40°C to 50°C
    IPsec hardware acceleration: Yes

    Wireless capabilities:
    Wireless 2.4 GHz Max data rate: 300 Mbit/s
    Wireless 2.4 GHz number of chains: 2
    Wireless 2.4 GHz standards: 802.11b/g/n
    Antenna gain dBi for 2.4 GHz: 2.5
    Wireless 2.4 GHz chip model: IPQ-4018
    Wireless 2.4 GHz generation: Wi-Fi 4
    Wireless 5 GHz Max data rate: 867 Mbit/s
    Wireless 5 GHz number of chains: 2
    Wireless 5 GHz standards: 802.11a/n/ac
    Antenna gain dBi for 5 GHz: 2.5
    Wireless 5 GHz chip model: IPQ-4018
    Wireless 5 GHz generation: Wi-Fi 5
    AC speed: AC1200

    Ethernet:
    10/100/1000 Ethernet ports: 5

    Peripherals:
    Number of USB ports: 1
    USB Power Reset: Yes
    USB slot type: USB type A
    Max USB current (A): 1

    Powering:
    Number of DC inputs: 2 (DC jack, PoE-IN)
    DC jack input Voltage: 12-30 V
    Max power consumption: 21 W
    Max power consumption without attachments: 16 W
    Cooling type: Passive
    PoE in: Passive PoE
    PoE in input Voltage: 18-28 V

    Certification & Approvals:
    Certification: CE, FCC, IC, EAC, ROHS
    IP: IP20

    Other:
    Mode button: Yes

    Wireless specifications:
    2.4 GHz      Transmit (dBm) Receive Sensitivity
    1MBit/s          27                             -100
    11MBit/s 27                             -94
    6MBit/s          27                             -96
    54MBit/s 24                             -78
    MCS0          27                             -96
    MCS7          23                             -73

    5 GHz      Transmit (dBm) Receive Sensitivity
    6MBit/s          26                             -96
    54MBit/s 22                             -80
    MCS0          26                             -96
    MCS7          21                             -75
    MCS9          19                             -70
