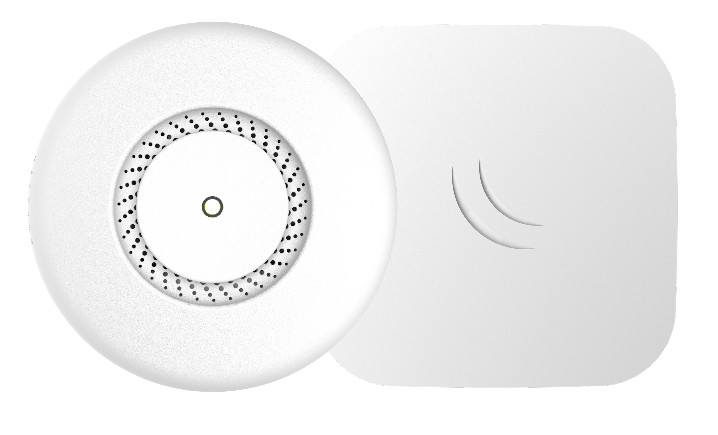

MikroTik RBcAPGi-5acD2nD MikroTik cAP ac Dual-band 2.4 / 5GHz 802.11ac
The cAP ac is a very capable and powerful wireless access point that looks beautiful on both walls and ceilings. The concurrent dual band wireless radio supports dual chain 2 GHz 802.11b/g/n and 5 GHz in a/n/ас standards, and will provide coverage in 360 degrees around it.
Even though the radio supports repeater mode, the two Ethernet ports give you the ability to extend your network with cables, even if PoE power is required, since the cAP ac supports 802.3af/at PoE input on the first port, and passive PoE output on the second port. Device supports IPsec hardware acceleration too.
- cAP ac (International) supports 2412-2484MHz and 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).
- cAP ac-US (USA) is factory locked for 2412-2462MHz, 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.
Specifications:
Product code: RBcAPGi-5acD2nD
Architecture: ARM 32bit
CPU: IPQ-4018
CPU core count: 4
CPU nominal frequency: 716 MHz
Dimensions: Round case: 136 mm, height: 30 mm; Square case: 145 mm x 145 mm x 30 mm
RouterOS licence: 4
Operating System: RouterOS
Size of RAM: 128 MB
Storage size: 16 MB
Storage type: FLASH
MTBF: Approximately 100'000 hours at 25C
Tested ambient temperature: -40°C to 50°C
IPsec hardware acceleration: Yes
Wireless capabilities:
Wireless 2.4 GHz Max data rate: 300 Mbit/s
Wireless 2.4 GHz number of chains: 2
Wireless 2.4 GHz standards: 802.11b/g/n
Antenna gain dBi for 2.4 GHz: 2
Wireless 2.4 GHz chip model: IPQ-4018
Wireless 2.4 GHz generation: Wi-Fi 4
Wireless 5 GHz Max data rate: 867 Mbit/s
Wireless 5 GHz number of chains: 2
Wireless 5 GHz standards: 802.11a/n/ac
Antenna gain dBi for 5 GHz: 2.5
Wireless 5 GHz chip model: IPQ-4018
Wireless 5 GHz generation: Wi-Fi 5
AC speed: AC1200
Ethernet:
10/100/1000 Ethernet ports: 2
Powering:
Number of DC inputs: 1 (PoE-IN)
Max power consumption: 24 W
Max power consumption without attachments: 13 W
Cooling type: Passive
PoE in: 802.3af/at
PoE in input Voltage: 17-57 V
PoE-out:
PoE-out ports: Ether2
PoE out: Passive PoE up to 57V
Max out per port output (input 18-30 V): 500 mA
Max out per port output (input 30-57 V): 400 mA
Max total out (A): 500 mA
Certification & Approvals
Certification: CE, FCC, IC, EAC, ROHS
Other:
Mode button: Yes
Wireless specifications:
2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 26 -100
11MBit/s 26 -94
6MBit/s 26 -96
54MBit/s 23 -78
MCS0 26 -96
MCS7 22 -73
5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 26 -96
54MBit/s 21 -80
MCS0 26 -96
MCS7 20 -75
MCS9 18 -70
