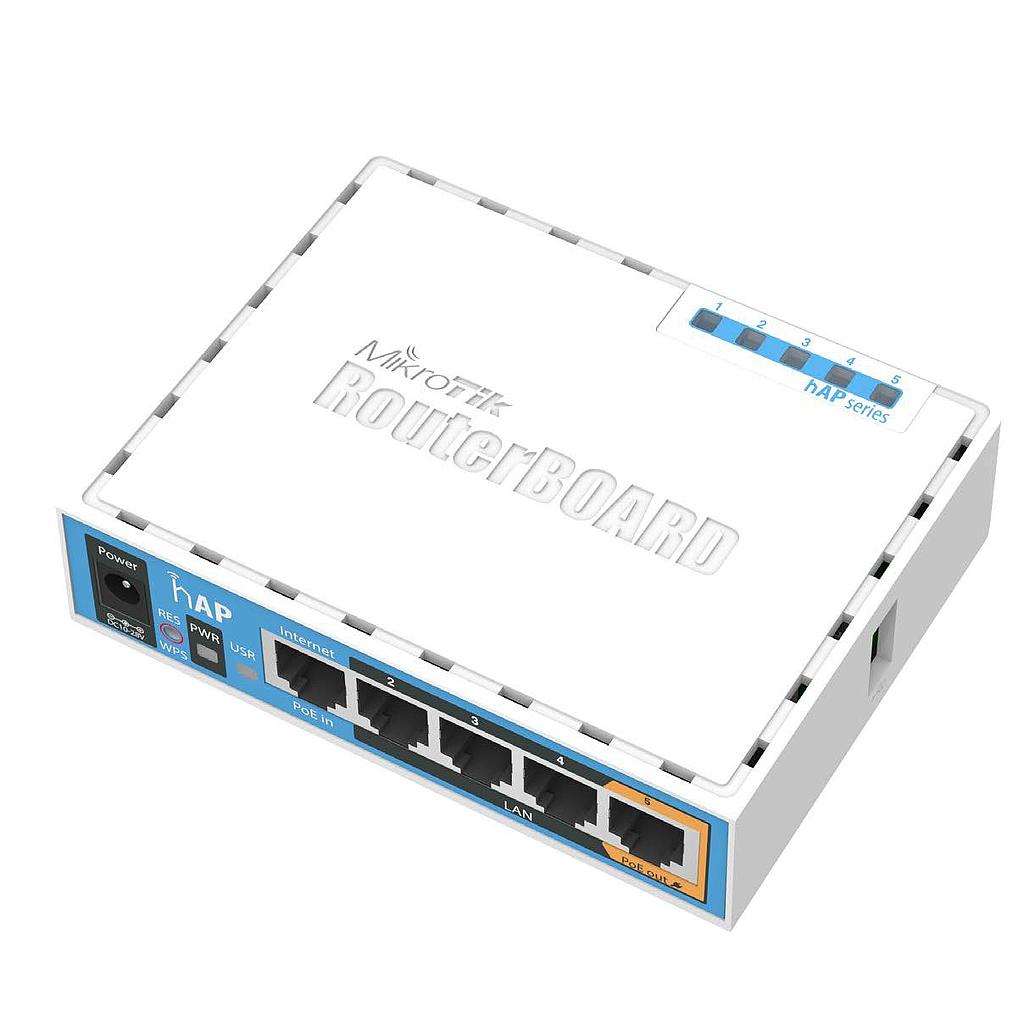

The RB951Ui-2HnD is a wireless SOHO AP with a new generation Atheros CPU and more processing power. It has five Ethernet ports, one USB 2.0 port and a high power 2.4GHz 802.11b/g/n wireless AP with antennas built in.
It has a 600MHz CPU,128MB of RAM and PoE output function for port #5 - it can power other PoE capable devices with the same voltage as applied to the unit. Maximum load on the port is 500mA.
Package contains RouterBOARD 951Ui-2HnD in a plastic case and power adapter.
|CPU core count||1|
|CPU nominal frequency||600 MHz|
|Size of RAM||128 MB|
|Storage size||128 MB|
|MTBF||Approximately 100'000 hours at 25C|
|Tested ambient temperature||-20C +60C|
|Wireless 2.4 GHz Max data rate||300 Mbit/s|
|Wireless 2.4 GHz number of chains||2|
|Wireless 2.4 GHz standards||802.11b/g/n|
|Antenna gain dBi for 2.4 GHz||2.5|
|Wireless 2.4 GHz chip model||AR9344|
|Wireless 2.4 GHz generation||Wi-Fi 4|
|10/100 Ethernet ports||5|
|Number of USB ports||1|
|USB Power Reset||Yes|
|USB slot type||USB type A|
|Max USB current (A)||1|
|Number of DC inputs||2 (PoE-IN, DC jack)|
|DC jack input Voltage||8-30 V|
|Max power consumption||24 W|
|Max power consumption without attachments||7 W|
|PoE in||Passive PoE|
|PoE in input Voltage||8-30 V|
|PoE out||Passive PoE|
|Max out per port output (input 18-30 V)||500 mA|
|Max total out (A)||500 mA|
Certification & Approvals
|Certification||CE, FCC, IC, EAC, ROHS|
|2.4 GHz||Transmit (dBm)||Receive Sensitivity|
The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
