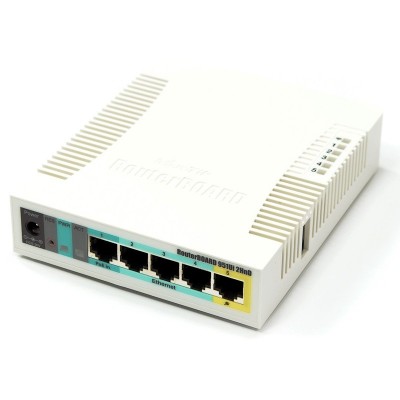

Mikrotik RB951Ui-2HnD 600MHz 128MB 5x LAN PoE Port 5 L4
The RB951Ui-2HnD is a wireless SOHO AP with a new generation Atheros CPU and more processing power. It has five Ethernet ports, one USB 2.0 port and a high power 2.4GHz 802.11b/g/n wireless AP with antennas built in.
It has a 600MHz CPU,128MB of RAM and PoE output function for port #5 - it can power other PoE capable devices with the same voltage as applied to the unit. Maximum load on the port is 500mA.
Package contains RouterBOARD 951Ui-2HnD in a plastic case and power adapter.
Specifications
Details | |
Product code | RB951Ui-2HnD |
Architecture | MIPSBE |
CPU | AR9344 |
CPU core count | 1 |
CPU nominal frequency | 600 MHz |
Dimensions | 113x138x29mm |
License level | 4 |
Operating System | |
Size of RAM | 128 MB |
Storage size | 128 MB |
Storage type | NAND |
Tested ambient temperature | -20C +50C |
Powering
Details | |
PoE in | Passive PoE |
PoE in input Voltage | 9-30 V |
Number of DC inputs | 2 (PoE-IN, DC jack) |
DC jack input Voltage | 9-30 V |
Max power consumption | 6.5 W |
PoE-out
Details | |
PoE-out ports | Ether5 |
PoE out | Passive PoE |
Max out per port output (input < 30 V) | 500 mA |
Max total out (A) | 500 mA |
Wireless
Details | |
Wireless 2.4 GHz Max data rate | 300 Mbit/s |
Wireless 2.4 GHz number of chains | 2 |
Wireless 2.4 GHz standards | 802.11b/g/n |
Antenna gain dBi for 2.4 GHz | 2.5 |
Wireless 2.4 GHz chip model | AR9344 |
Wireless 2.4 GHz generation | Wi-Fi 4 |
Ethernet
Details | |
10/100 Ethernet ports | 5 |
Peripherals
Details | |
Number of USB ports | 1 |
USB Power Reset | Yes |
USB slot type | USB type A |
Max USB current (A) | 1 |
Certification & Approvals
Details | |
Certification | CE/RED, FCC, IC, EAC, ROHS |
Wireless specifications
2.4 GHz | Transmit (dBm) | Receive Sensitivity |
6MBit/s | 30 | -96 |
54MBit/s | 25 | -80 |
MCS0 | 30 | -96 |
MCS7 | 23 | -78 |
