MikroTik RB912UAG-5HPnD-OUT BaseBox 5 RouterBOARD 912UAG 600Mhz CPU 64MB RAM 1xGigabit LAN

Product Code: RB912UAG-5HPnD-OUT

164.40 incl. GST 164.4 AUD 164.40

159.00


    This combination does not exist.

    Add to Cart

    MikroTik
    MikroTik

    MikroTik provides hardware and software for Internet connectivity. Our experience in using industry standard PC hardware and complete routing systems allowed us in 1997 to create the RouterOS software system that provides extensive stability, controls, and flexibility for all kinds of data interfaces and routing.


    100% Original
    Fast Delivery


    Share this product:

    MikroTik RB912UAG-5HPnD-OUT BaseBox 5 RouterBOARD 912UAG 600Mhz CPU 64MB RAM 1xGigabit LAN

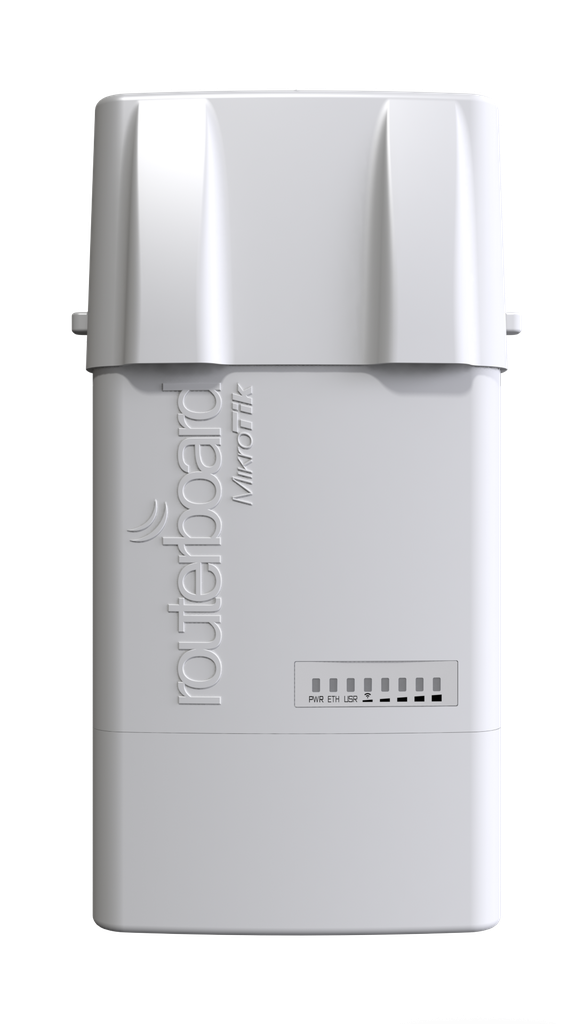

    The RB912 in an outdoor enclosure, fit with two RPSMA connectors for antennas, and a cable hood for protection against moisture. Also available are three additional places for antenna connectors, in case you wish to use the RB912 miniPCIe slot for one more wireless interface to make a dual band device.

    The case can be opened with one hand, and is protected against the elements. USB, Ethernet and a Grounding wire exits are provided on the bottom, behind a protective door.

    Comes with a mounting loop for tower/pole mounting, and a separate DIN rail mount is also provided. Package also includes a PoE injector
    and power supply unit.

    Box contains: RB912 outdoor unit, PSU, PoE injector, mounting loop, DIN rail mount

    - RB912UAG-5HPnD-OUT-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.

    - RB912UAG-5HPnD-OUT (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).


    Specifications:
    Product code: RB912UAG-5HPnD-OUT
    Architecture: MIPSBE
    CPU: AR9342
    CPU core count: 1
    CPU nominal frequency: 600 MHz
    Dimensions: 246x135x50mm
    RouterOS licence: 4
    Operating System: RouterOS
    Size of RAM: 64 MB
    Storage size: 128 MB
    Storage type: NAND
    MTBF: Approximately 100'000 hours at 25C
    Tested ambient temperature: -40°C to 70°C

    Powering:
    Number of DC inputs: 1 (PoE-IN)
    Max power consumption: 12 W
    FAN count: Passive
    PoE in: Passive PoE
    PoE in input Voltage: 8-30 V

    Wireless specifications:
    Wireless 5 GHz Max data rate: 300 Mbit/s
    Wireless 5 GHz number of chains: 2
    Wireless 5 GHz standards: 802.11a/n
    Wireless 5 GHz chip model: AR9342
    Wireless 5 GHz generation: Wi-Fi 4

    Ethernet:
    10/100/1000 Ethernet ports: 1

    Peripherals:
    Number of SIM slots: 1 Modem (Mini SIM)
    MiniPCI-e slots: 1
    Number of USB ports: 1
    USB Power Reset: Yes
    USB slot type: USB type A
    Max USB current (A): 1

    Other:
    PCB temperature monitor: Yes
    Voltage Monitor: Yes

    Certification & Approvals:
    Certification: CE, FCC, IC, EAC, ROHS

    Wireless specifications:
    5 GHz   Transmit (dBm) Receive Sensitivity
    6MBit/s     30                  -96
    54MBit/s    27                  -78
    MCS0     30                  -96
