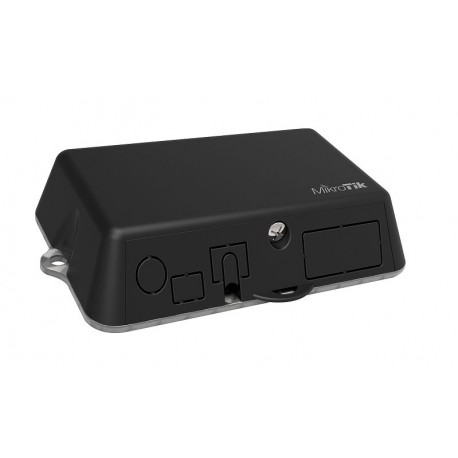

MikroTik RB912R-2nD-LTm+R11e-LTE LtAP-mini 2 SIM slots GPS LTE Modem included 2.4GHz AP L4

Product Code: RB912R-2nD-LTm+R11e-LTE

205.76 incl. GST 205.76 AUD 205.76

199.00


    This combination does not exist.

    Add to Cart

    MikroTik
    MikroTik

    MikroTik provides hardware and software for Internet connectivity. Our experience in using industry standard PC hardware and complete routing systems allowed us in 1997 to create the RouterOS software system that provides extensive stability, controls, and flexibility for all kinds of data interfaces and routing.


    100% Original
    Fast Delivery


    Share this product:

    MikroTik RB912R-2nD-LTm+R11e-LTE LtAP-mini 2 SIM slots GPS LTE Modem included 2.4GHz AP L4

    The LtAP mini LTE kit is a small weatherproof wireless access point with a built in cellular modem that supports 2G, 3G and 4G (LTE) connectivity on International LTE bands 1,2,3,7,8,20,38 and 40.


    Connect to the LtAP mini’s built-in 802.11b/g/n wireless and access the LTE network from your phone or any other wireless device. The LtAP mini LTE also has one 10/100 Ethernet LAN port for your wired devices. The RS232 serial port gives you console access for debugging.


    LtAP mini has a special enclosure with a wall mounting kit, two SIM slots to alternate between cellular providers, and integrated GPS support, making this a perfect device for use in moving vehicles like cars, buses or trains.


    External GPS antenna is available for ordering separately (not included, product code ACGPSA).


    The LTE card is connected to two internal antennas with u.FL connectors, so if you want, you can unplug the connectors and add your own external LTE antenna for better coverage. The unit has several powering options: 9-30 V PoE-in by Ethernet port, DC jack and microUSB.


    Use the built in GPS module to track the location of your vehicle in real time, we have even provided a simple tracking application example in the RouterOS documentation, to help you start development of your platform.



    Specifications:

    Details

    Product code

    RB912R-2nD-LTm&R11e-LTE

    Architecture

    MIPSBE

    CPU

    QCA9531

    CPU core count

    1

    CPU nominal frequency

    650 MHz

    Dimensions

    139 x 77 x 28,5 mm

    License level

    4

    Operating System

    RouterOS

    Size of RAM

    64 MB

    Storage size

    16 MB

    Storage type

    FLASH

    Tested ambient temperature

    -40°C to 70°C


    Powering:

    Details

    MicroUSB input Voltage

    5-5 V

    PoE in

    802.3af/at

    PoE in input Voltage

    12-57 V

    Number of DC inputs

    3 (DC jack, PoE-IN, MicroUSB)

    DC jack input Voltage

    8-30 V

    Max power consumption

    9 W


    Mobile:

    Details

    2G Category

    Class12

    3G Category

    R7 (21Mbps Downlinks, 5.76Mbps Uplink)

    LTE Category

    4 (150Mbps Downlink, 50Mbps Uplink)

    LTE FDD bands

    1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz)

    LTE TDD bands

    38 (2600MHz) / 40 (2300MHz)

    2G bands

    2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)

    3G bands

    1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz)


    Wireless:

    Details

    Wireless 2.4 GHz Max data rate

    300 Mbit/s

    Wireless 2.4 GHz number of chains

    2

    Wireless 2.4 GHz standards

    802.11b/g/n

    Antenna gain dBi for 2.4 GHz

    1.5

    Wireless 2.4 GHz chip model

    QCA9531


    Ethernet:

    Details

    10/100 Ethernet ports

    1


    Peripherals:

    Details

    Number of SIM slots

    2 Modem (Mini SIM)

    MiniPCI-e slots

    1

    Serial port

    RS232

    Number of USB ports

    1

    USB Power Reset

    Yes

    USB slot type

    microUSB type AB

    Max USB current (A)

    1


    Other:

    Details

    Mode button

    Yes


    Wireless specifications:

    2.4 GHz

    Transmit (dBm)

    Receive Sensitivity

    1MBit/s

    22

    -96

    11MBit/s

    22

    -89

    6MBit/s

    20

    -93

    54MBit/s

    18

    -74

    MCS0

    20

    -93

    MCS7

    16

    -71
