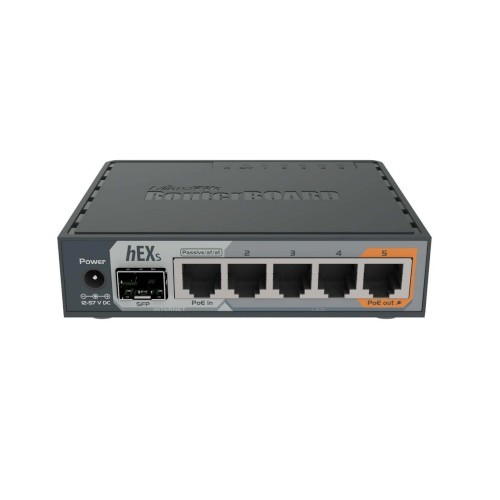

MikroTik RB760iGS hEX S 880MHz Dual Core 256MB 5xGb PoE L4
MikroTik hEX S 5x Gigabit Ethernet, SFP, Dual Core 880MHz CPU, 256MB RAM, USB, microSD, RouterOS L4, support for IPsec hardware encryption and The Dude server packagehEX S is a five port Gigabit Ethernet router for locations where wireless connectivity is not required. Compared to the hEX, the hEX S also features an SFP port and PoE output on the last port.
It is affordable, small and easy to use, but at the same time comes with a very powerful dual core 880 MHz CPU and 256 MB RAM, capable of all the advanced configurations that RouterOS supports. The device has a USB 2.0, PoE output for Ethernet port #5 and a 1.25Gbit/s SFP cage.
IPsec hardware encryption (~470 Mbps) and The Dude server package is supported, microSD slot on it provides improved r/w speed for file storage and Dude.
Specifications:
Details | |
Product code | RB760iGS |
Architecture | MMIPS |
CPU | MT7621A |
CPU core count | 2 |
CPU nominal frequency | 880 MHz |
CPU Threads count | 4 |
Dimensions | 113 x 89 x 28 mm |
License level | 4 |
Operating System | RouterOS |
Size of RAM | 256 MB |
Storage size | 16 MB |
Storage type | FLASH |
Tested ambient temperature | -40°C .. +70°C |
Powering:
Details | |
Max Power consumption | 11W |
PoE in | 802.3af/at |
PoE out | Passive PoE up to 57V |
PoE in input Voltage | 12-57 V |
Number of DC inputs | 2 (DC jack, PoE-IN) |
DC jack input Voltage | 12-57 V |
Ethernet:
Details | |
10/100/1000 Ethernet ports | 5 |
Fibre:
Details | |
SFP ports | 1 |
Peripherals:
Details | |
Number of USB ports | 1 |
USB Power Reset | Yes |
USB slot type | USB type A |
Max USB current (A) | 1 |
Other:
Details | |
PCB temperature monitor | Yes |
Voltage Monitor | Yes |
