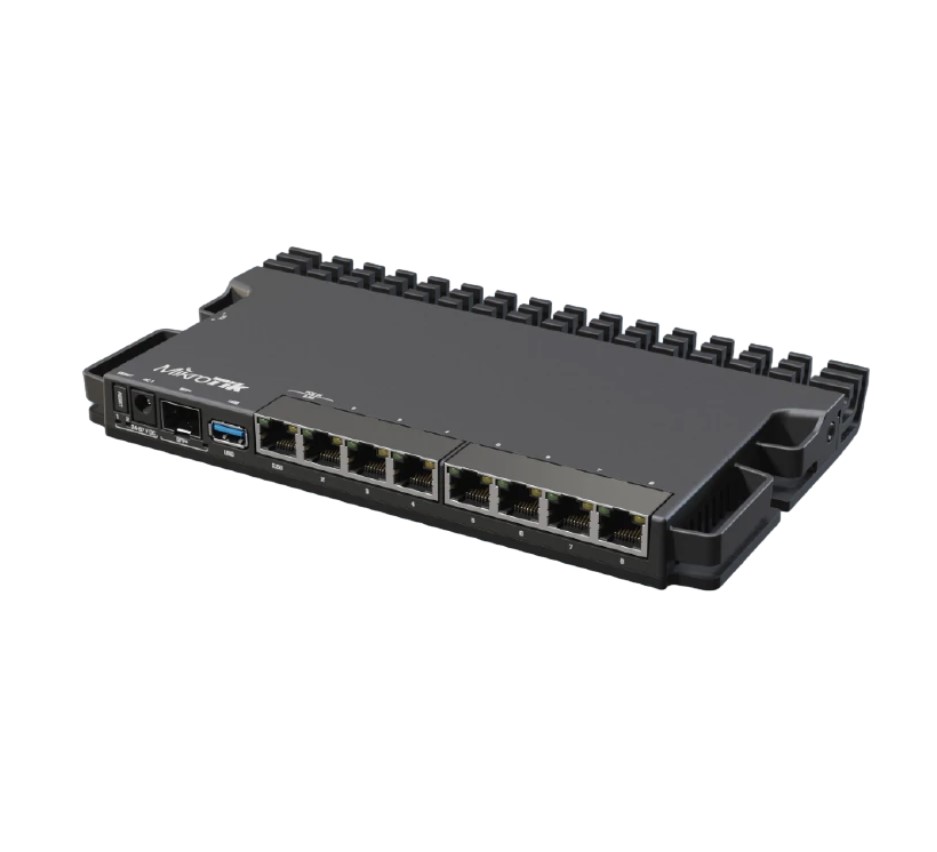

    Mikrotik RB5009UPr+S+IN 8 x POE Out, 4x 1.4 GHz, 7x Gbit LAN, 1x 2.5Gbit Lan, 1x SFP+, 1GB NAND

    This version of the Mikrotik RB5009 has all the bells and whistles of the previous model: Gigabit Ethernet, 2.5 Gigabit Ethernet, and a 10 Gigabit SFP+ cage for fiber connectivity. It has the speed, the power, and the durability. But this time, we have added PoE-in & PoE-out on all eight Ethernet ports. Combined with the 2-pin connector and the DC jack, you’re getting 10 separate ways of powering. Dual redundant power supplies would usually take your uninterrupted uptime to the next level. RB5009UPr+S+IN takes it one step above that!

    All power options support a wide voltage range of 24 – 57 V. However, you can not mix the voltages. If you’re using PoE-out to power other devices, the board will choose the source with the highest voltage (DC jack or the 2-pin connector) to power those. Each PoE-out port can supply up to 25W of power. All the ports combined are limited to 130W, which should be enough for most setups. You can specify maximum available power from your power sources manually, if necessary. When it comes to PoE-out features, the new RB5009 can trade blows with our legendary PoE switches: CRS354 & CRS328. In the smallest possible form-factor and for the best price on the market!

    Protect your uptime, protect your tranquility

    So what exactly happens if there is a problem with one of your power sources? Here’s a quick example: you have 24V on the DC jack, 48V on the 2-pin connector, and 57V on the PoE-in. The board itself gets powered by the highest voltage input – the PoE-in. If there’s a problem, RB5009 will fall back to the second highest voltage - the 2-pin connector. And if that fails – there’s the 24V option on the DC jack.

    What about the PoE-out devices? Once again – the highest voltage wins. PoE-out devices will draw power from the 48V source on the 2-pin connector. If that fails – the 24V on the DC jack come into play. The board will always reserve 20 watts to power itself. If there is not enough power for all the PoE-out ports, it will start disabling the ones with the lowest priority. You can set the port priority manually

    RB5009UPr+S+IN can be powered in 3 different ways:

    a) PoE-in from Ethernet port #1

    b) DC Jack

    c) 2-pin terminal on the side

    Boards come with 1GB of DDR4 RAM and 1GB NAND storage. This combination of ports and components, compared to our other products in a similar form factor, provides almost double the performance in configurations with heavy CPU loads.

    With a simple set of mounting accessories, you can mount FOUR of these routers in a single 1U rackmount space! No more server-room-Tetris, just pure productivity.

    Specifications:

    • Product code RB5009UPr+S+IN

    • CPU 88F7040 1.4 GHz

    • CPU architecture ARM 64bit

    • CPU core count 4

    • Size of RAM 1 GB

    • RAM type DDR4

    • Storage 1 GB, NAND

    • Number of 1G Ethernet ports 7

    • Number of 2.5G Ethernet ports 1

    • Number of 10G SFP+ ports 1

    • USB port 1 (3.0 type A)

    • Operating system Only v7 RouterOS

    • Switch chip model 88E6393

    • Dimensions 220 x 125 x 22 mm

    • Operating temperature -40°C to +60°

    Powering:

    • PoE-in 802.3af/at

    • PoE-Out 802.3af/at

    • PoE-Out ports Ether1 - Ether8, max out per port output (input < 30 V): 640 mA,

    • max out per port output (input > 30 V): 420 mA

    • Smart PoE Controller

    • Max total out 2.59 A

    • Total output power 130 W

    • Total output current 2.28 A

    • Number of DC inputs 3

    • Supported input voltage 24-57 V (PoE in) 24-57 V (DC jack) 24-57 (2-pin terminal)

    • Power adapter nominal voltage 48 V

    • Power adapter nominal current 2 A

    • Max power consumption (without attachments) 15 W

    • Max power consumption 150 W

    • 48V 96W Power supply included

    Ethernet:

    • 10/100/1000 Ethernet port x 7

    • Number of 2.5G Ethernet ports x 1

    Fibre:

    • SFP+ ports 1

    Peripherals:

    • Number of USB ports 1

    • USB Power Reset Yes

    • USB slot type USB 3.0 type A

    • Max USB current (A) 1
