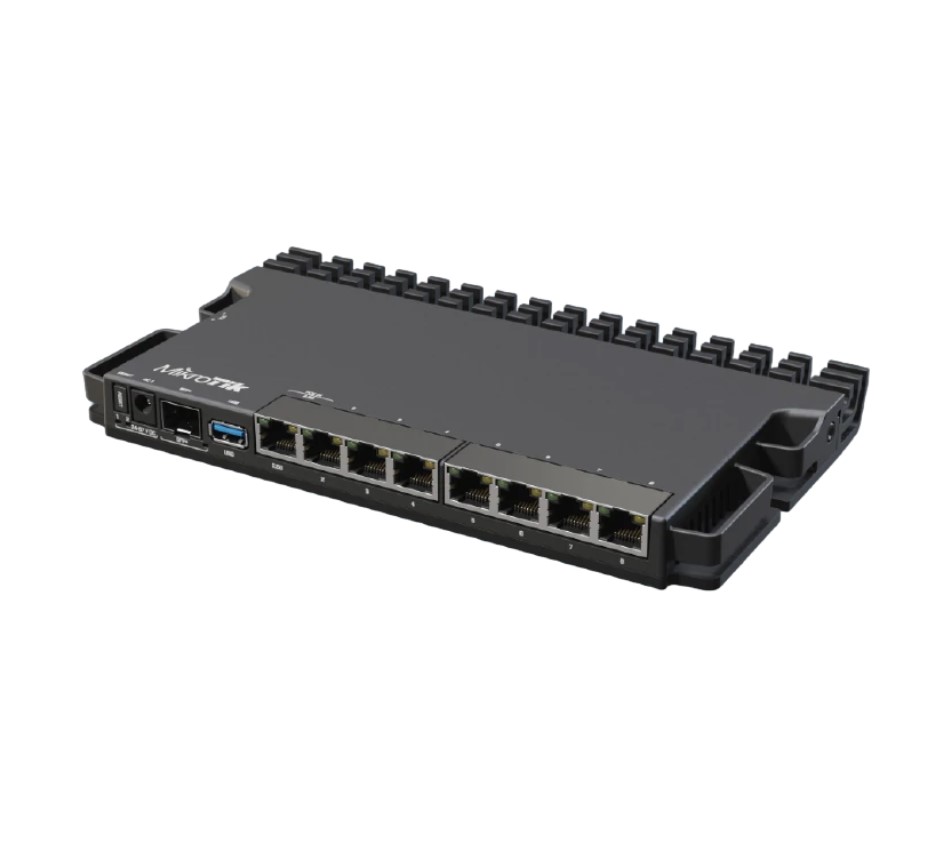

Mikrotik RB5009UG+S+IN 4x 1,4 GHz, 7x Gbit LAN, 1x 2.5Gbit Lan, 1x SFP+, 1GB NAND

Product Code: RB5009UG+S+IN

Barcode: 4752224007148

342.65 incl. GST 342.65000000000003 AUD 342.65

331.39


    This combination does not exist.

    Add to Cart

    MikroTik
    MikroTik

    MikroTik provides hardware and software for Internet connectivity. Our experience in using industry standard PC hardware and complete routing systems allowed us in 1997 to create the RouterOS software system that provides extensive stability, controls, and flexibility for all kinds of data interfaces and routing.


    100% Original
    Fast Delivery


    Share this product:

    Mikrotik RB5009UG+S+IN 4x 1,4 GHz, 7x Gbit LAN, 1x 2.5Gbit Lan, 1x SFP+, 1GB NAND


    Double the usual performance: we took your feedback from the MikroTik User Meetings to create the perfect home lab router: compact, powerful, with multiple powering options and efficient cooling.RB5009 has it all, and even more!

    The board features 9 wired ports and a full-sized USB 3.0. Seven of the ports are Gigabit Ethernet, another one is 2.5 Gigabit Ethernet, and the last one is a 10G SFP+ cage. All the ports are connected to a powerful Marvell Amethyst family switch-chip with a 10 Gbps full-duplex line leading to the Marvell Armada Quad-core ARMv8 1.4 GHz CPU. Both CPU and the switch-chip are located on the bottom of the board – so the case acts as a massive heat-sink!

    RB5009UG+S+IN can be powered in 3 different ways:

    a) PoE-in from Ethernet port #1

    b) DC Jack

    c) 2-pin terminal on the side

    Boards come with 1GB of DDR4 RAM and 1GB NAND storage. This combination of ports and components, compared to our other products in a similar form factor, provides almost double the performance in configurations with heavy CPU loads.

    With a simple set of mounting accessories, you can mount FOUR of these routers in a single 1U rackmount space! No more server-room-Tetris, just pure productivity.


    Specifications:

    Product code RB5009UG+S+IN

    Architecture ARM 64bit

    CPU 88F7040

    CPU core count 4

    CPU nominal frequency 350-1400 (auto) MHz

    RouterOS license 5

    Operating System RouterOS (v7 only)

    Size of RAM 1 GB

    Storage size 1 GB

    Storage type NAND

    MTBF Approximately 200'000 hours at 25C

    Tested ambient temperature -40°C to 60°C


    Powering:

    Number of DC inputs 3 (DC jack, PoE-IN, 2-pin terminal)

    DC jack input Voltage 24-57 V

    2-pin terminal input Voltage 24-57 V

    Max power consumption 20 W

    Max power consumption without attachments 14 W

    FAN count Passive

    PoE in 802.3af/at

    PoE in input Voltage 24-57 V


    Ethernet:

    10/100/1000 Ethernet ports 7

    Number of 2.5G Ethernet ports 1


    Fibre:

    SFP+ ports 1


    Peripherals:

    Number of USB ports 1

    USB Power Reset Yes

    USB slot type USB 3.0 type A

    Max USB current (A) 1
