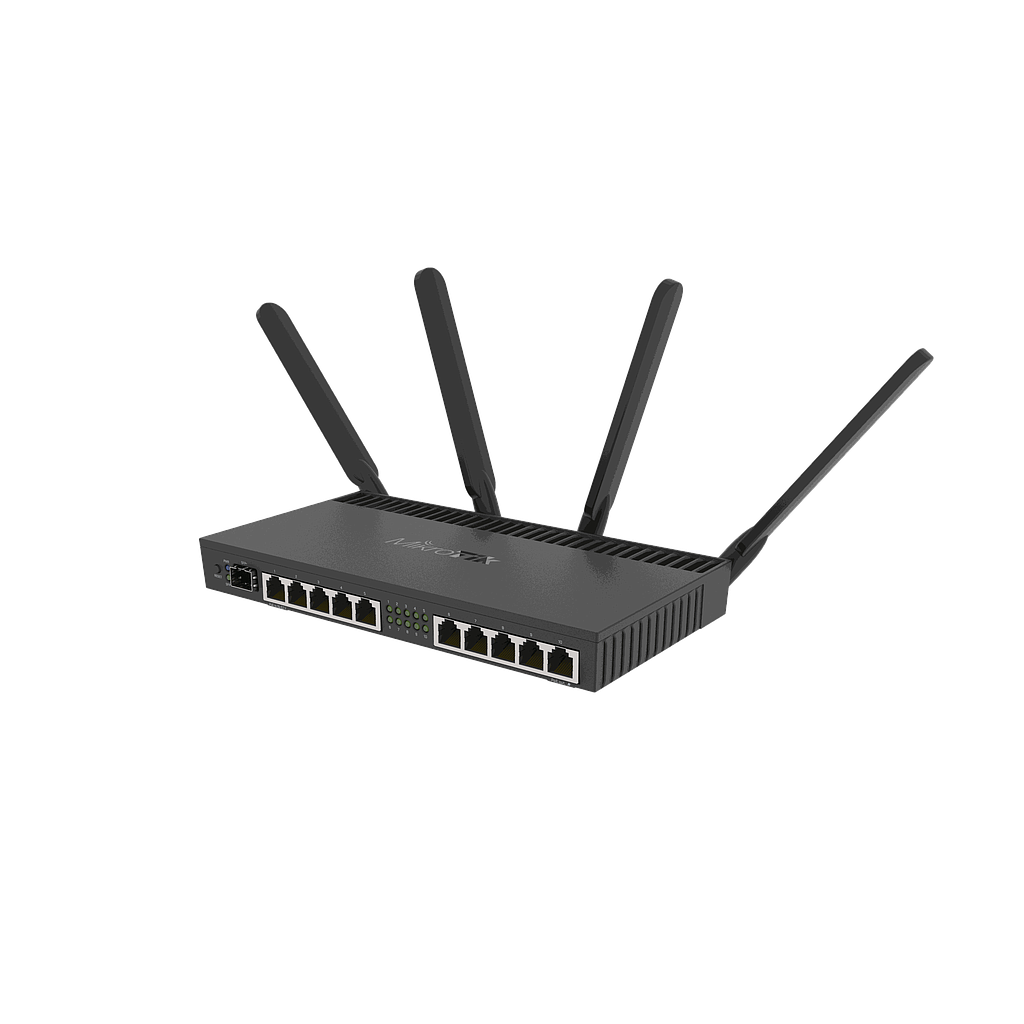

Mikrotik RB4011iGS+5HacQ2HnD-IN 4x 1,4 GHz, 10x Gigabit LAN SFP+ L5 WiFi Desktop Case
MikroTik
MikroTik provides hardware and software for Internet connectivity. Our experience in using industry standard PC hardware and complete routing systems allowed us in 1997 to create the RouterOS software system that provides extensive stability, controls, and flexibility for all kinds of data interfaces and routing.
100% Original
Fast Delivery
Share this product:
Mikrotik RB4011iGS+5HacQ2HnD-IN 4x 1,4 GHz, 10x Gigabit LAN SFP+ L5 WiFi Desktop Case
RB4011 series - amazingly powerful routers with ten Gigabit ports, SFP+ 10Gbps interface and IPsec hardware acceleration for a great price!
The RB4011 uses a quad core Cortex A15 CPU, same as in our carrier grade RB1100AHx4 unit. The unit is equipped with 1GB of RAM, can provide PoE output on port #10 and comes with a compact and professional looking solid metal enclosure in matte black.
RB4011iGS+5HacQ2HnD-IN (WiFi model) is dual band, four chain unit with a supported data rate of up to 1733 Mbps in 5GHz. For legacy devices, the unit also has a dual chain 2GHz wireless card installed in miniPCI-e slot.
We have two versions available.
RB4011iGS+5HacQ2HnD-IN-US (USA) is factory locked for 2412-2462MHz, 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.
RB4011iGS+5HacQ2HnD-IN (International) supports 2412-2484MHz and 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).
Note: Passive DAC (MikroTik S+DA0001/S+DA0003) are not supported.
Specifications:
Product code: RB4011iGS+5HacQ2HnD-IN
Architecture: ARM 32bit
CPU: AL21400
CPU core count: 4
CPU nominal frequency: 1.4 GHz
Dimensions: 228 x 120 x 30 mm
RouterOS licence: 5
Operating System: RouterOS
Size of RAM: 1 GB
Storage size: 512 MB
Storage type: NAND
MTBF: Approximately 200'000 hours at 25C
Tested ambient temperature: -40°C to 45°C
IPsec hardware acceleration: Yes
Wireless capabilities:
Wireless 5 GHz Max data rate: 1733 Mbit/s
Wireless 5 GHz number of chains: 4
Wireless 5 GHz standards: 802.11a/n/ac
Antenna gain dBi for 5 GHz: 3
Wireless 5 GHz chip model: QCA9984
Wireless 5 GHz generation: Wi-Fi 5
Wireless 2.4 GHz Max data rate: 300 Mbit/s
Wireless 2.4 GHz number of chains: 2
Wireless 2.4 GHz standards: 802.11b/g/n
Antenna gain dBi for 2.4 GHz: 3
Wireless 2.4 GHz chip model: R11e-2HnD
Wireless 2.4 GHz generation: Wi-Fi 4
AC speed: AC2000
Ethernet:
10/100/1000 Ethernet ports: 10
Fibre:
SFP+ ports: 1
Peripherals:
MiniPCI-e slots: 1
Serial console port: RJ45
Powering:
Number of DC inputs: 2 (DC jack, PoE-IN)
DC jack input Voltage: 12-57 V
Max power consumption: 44 W
Max power consumption without attachments: 23 W
Cooling type: Passive
PoE in: Passive PoE
PoE in input Voltage: 18-57 V
PoE-out:
PoE-out ports: Ether10
PoE out: Passive PoE up to 57V
Max out per port output (input 18-30 V): 600 mA
Max out per port output (input 30-57 V): 420 mA
Max total out (A): 600 mA
Certification & Approvals:
Certification: CE, FCC, IC, EAC, ROHS
IP: IP20
Other:
PCB temperature monitor: Yes
Voltage Monitor: Yes
Wireless specifications:
5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 33 -96
54MBit/s 29 -81
MCS0 33 -96
MCS7 28 -77
MCS9 26 -72
2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 28 -100
11MBit/s 28 -94
6MBit/s 29 -96
54MBit/s 25 -80
MCS0 26 -96
MCS7 24 -79
