Mikrotik RB1100x4 Power PC 1.4Ghz CPU quad-core, 1GB RAM, 13xGbit LAN, L6


Product Code: RB1100x4

Barcode: 4752224002662

589.82 incl. GST 589.82 AUD 589.82


    This combination does not exist.

    Add to Cart


    MikroTik provides hardware and software for Internet connectivity. Our experience in using industry standard PC hardware and complete routing systems allowed us in 1997 to create the RouterOS software system that provides extensive stability, controls, and flexibility for all kinds of data interfaces and routing.

    100% Original
    Fast Delivery

    Share this product:

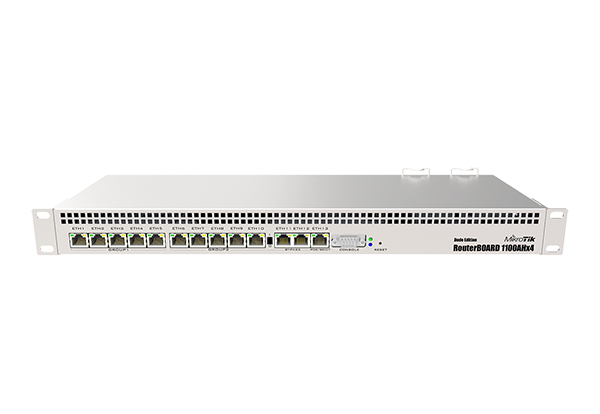

    Mikrotik RB1100x4 Power PC 1.4Ghz CPU quad-core, 1GB RAM, 13xGbit LAN, L6

    Introducing RB1100x4, 13x Gigabit Ethernet ports Router, powered by Annapurna Alpine AL21400 CPU with four Cortex A15 cores, clocked at 1.4GHz each, for a maximum throughput of up to 7.5Gbit. The device supports IPsec hardware acceleration (up to 2.2Gbps with AES128).

    Unit comes with 1U rackmount case, RS232 serial port and dual redundant power supplies (with -48v DC telecom power and 802.3at/af support).

    Product code: RB1100x4
    Architecture: ARM 32bit
    CPU: AL21400
    CPU core count: 4
    CPU nominal frequency: 1.4 GHz
    Dimensions: 443 x 148 x 44 mm
    RouterOS licence: 6
    Operating System: RouterOS
    Size of RAM: 1 GB
    Storage size: 128 MB
    Storage type: NAND
    MTBF: Approximately 200'000 hours at 25C
    Tested ambient temperature: -40°C to 70°C
    IPsec hardware acceleration: Yes

    Number of AC inputs: 2
    AC input range: 100-240
    Number of DC inputsL: 2 (2-pin terminal, PoE-IN)
    2-pin terminal input Voltage: -48, 12-57 V
    Max power consumption: 20 W
    Cooling type: Passive
    PoE in: 802.3af/at
    PoE in input Voltage: 20-57 V

    10/100/1000 Ethernet ports: 13

    Memory card type: microSD
    Memory Cards: 1
    Serial console port: RS232

    Current Monitor: Yes
    PCB temperature monitor: Yes
    Voltage Monitor: Yes
    Mode button: Yes
    Beeper: Yes

    Certification & Approvals:
    Certification: CE, EAC, ROHS
    IP: IP20
