Mikrotik RB1100Dx4 Power PC 1.4Ghz CPU quad-core, 1GB RAM, 13xGbit LAN, L6 Dude Edition

Product Code: RB1100Dx4

Barcode: 4752224002648

557.32 incl. GST 557.32 AUD 557.32

539.00


    This combination does not exist.

    Add to Cart

    MikroTik
    MikroTik

    MikroTik provides hardware and software for Internet connectivity. Our experience in using industry standard PC hardware and complete routing systems allowed us in 1997 to create the RouterOS software system that provides extensive stability, controls, and flexibility for all kinds of data interfaces and routing.


    100% Original
    Fast Delivery


    Share this product:

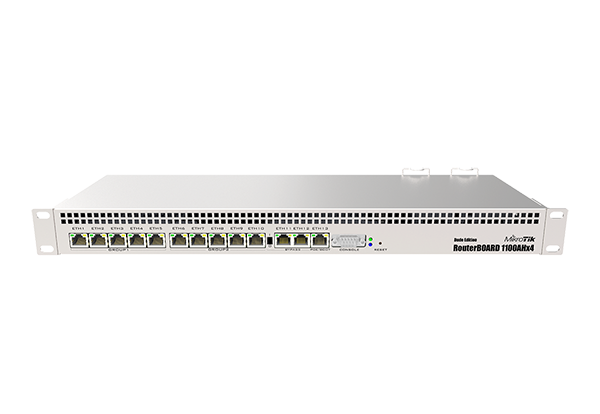

    Mikrotik RB1100Dx4 Power PC 1.4Ghz CPU quad-core, 1GB RAM, 13xGbit LAN, L6 Dude Edition


    New RB1100AHx4 Dude Edition has Annapurna Alpine AL21400 CPU with four Cortex A15 cores clocked at 1.4GHz each, for a maximum throughput of up to 7.5Gbps. The device supports IPsec hardware acceleration and is faster at it than any previous RouterBOARD device (up to 2.2Gbps with AES128).

    Unit comes with 1U rackmount case, 13x Gigabit Ethernet ports, RS232 serial port and dual redundant power supplies (with -48v DC telecom power and 802.3at/af support). The RB1100AHx4 Dude edition features several high speed storage connectors (two SATA and two M.2) for using a Dude database, proxy cache or any other storage intensive feature. It includes a 60GB M.2 drive already installed.

    Details:
    Product code: RB1100Dx4
    Architecture: ARM 32bit
    CPU: AL21400
    CPU core count: 4
    CPU nominal frequency: 1.4 GHz
    Dimensions: 443 x 148 x 44 mm
    License level: 6
    Operating System: RouterOS
    Size of RAM: 1 GB
    Storage size: 128 MB
    Storage type: NAND
    Tested ambient temperature: -40°C to 70°C

    Powering:
    PoE in: 802.3af/at
    PoE in input Voltage:20-57 V
    Number of AC inputs: 2
    Number of DC inputs: 2 (2-pin terminal, PoE-IN)
    2-pin terminal input Voltage: -48, 20-57 V
    Max power consumption: 33 W
    Max power consumption without attachments: 25 W
    Ethernet: 10/100/1000
    Ethernet ports: 13

    Peripherals:
    Extended storage: 60GB M.2 SSD included
    M.2 slots: 2
    Memory card type: microSD
    Memory Cards: 1
    SATA ports:2x SATA3
    Serial port: RS232

    Other:
    Current Monitor: Yes
    PCB temperature monitor: Yes
    Voltage Monitor: Yes
