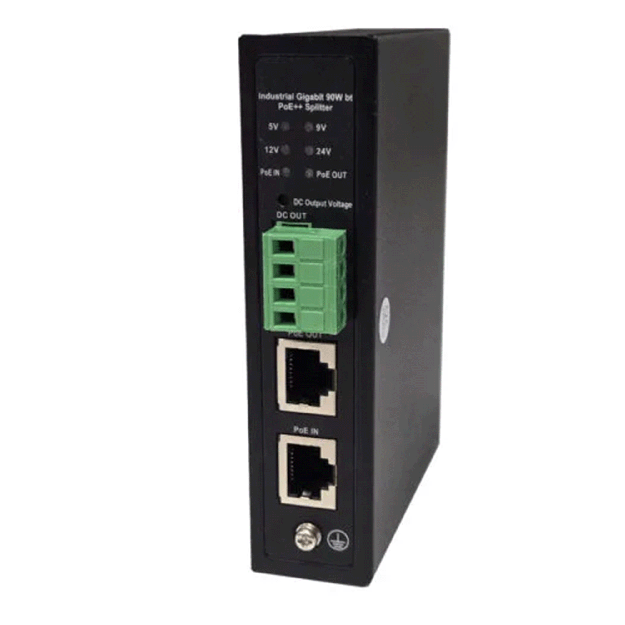

Tycon Power POE-SPLT-BT-UNI-P Gigabit 90W PoE Splitter, 802.3af/at/bt 48VDC 2/4 Pair PoE IN; 5V, 9V, 12V, 24V, 802.3bt PoE Output, 72W Max

https://streakwave.com.au/web/image/product.template/22741/image_1920?unique=f3ccd5c

Product Code: POE-SPLT-BT-UNI-P

$ 168.85 incl. GST 168.85 AUD $ 168.85

$ 149.00

    This combination does not exist.

    Add to Cart
    Tycon Power
    Tycon Power

    Tycon Power Systems designs and manufactures turnkey remote power systems utilizing solar and wind power and accessories including a variety of unique PoE and power conversion products. Tycon Power® products include; industrial strength outdoor PoE switches, midspan power inserters, PoE surge protection, DC to DC converters, and a large selection of accessories.

    Terms and Conditions
    100% Original
    Fast Delivery

    Share this product:

    Tycon Power POE-SPLT-BT-UNI-P Gigabit 90W PoE Splitter, 802.3af/at/bt 48VDC 2/4 Pair PoE IN; 5V, 9V, 12V, 24V, 802.3bt PoE Output, 72W Max.

    Features

    • PoE Splitter
    • Ethernet compatible
    • Combined Outputs up to 72W with 90W input
    • 2 pair and 4 pair input compatible
    • Short Circuit, Over Current, Over Temperature Protections
    • DIN Mount Metal Housing
    • Industrial Temperature Operation: -40C to +75C

    Application:

    The Tycon universal PoE Splitter POE-SPLT-BT-UNI-P is the perfect device to supply DC power and data to a device that is not PoE capable. The PoE Splitter works by accepting a combined PoE/Data input and splitting out the Voltage and Data on separate connectors. The POE-SPLT-BT-UNI-P is universal in nature in that it will supply 5V, 9V, 12V or 24V DC to accommodate almost any DC powered equipment. Additionally, the PoE Splitter features an 802.3af/at/bt PoE output with data passthrough so you can power a PoE device and also another device like a sensor or camera.

    With it’s hardened Industrial design, the POE-SPLT-BT-UNI-P PoE Splitter, is ready for any application where you need to reliably power a non-PoE device or a PoE Device and another DC powered device.

    Description:

    The POE-SPLT-BT-UNI-P Active PoE splitters are unique, Gigabit speed, Power over Ethernet adapters which convert an
    802.3af/at/bt PoE input to an 802.3af/at/bt PoE output plus a selectable VDC output of 5V, 9V,12V or 24VDC on a wire
    terminal connector.

    They have various protections for short circuit, overload and over temperature. If powered by 802.3bt PoE @ 90W the
    PoE Splitter total output power is 72W Max. If powered by 802.3at @ 30W then total output power is 24W. If powered by 802.3af
    @15.4W the total output power is 12W. Input power should be ~20% higher than required total output power.
