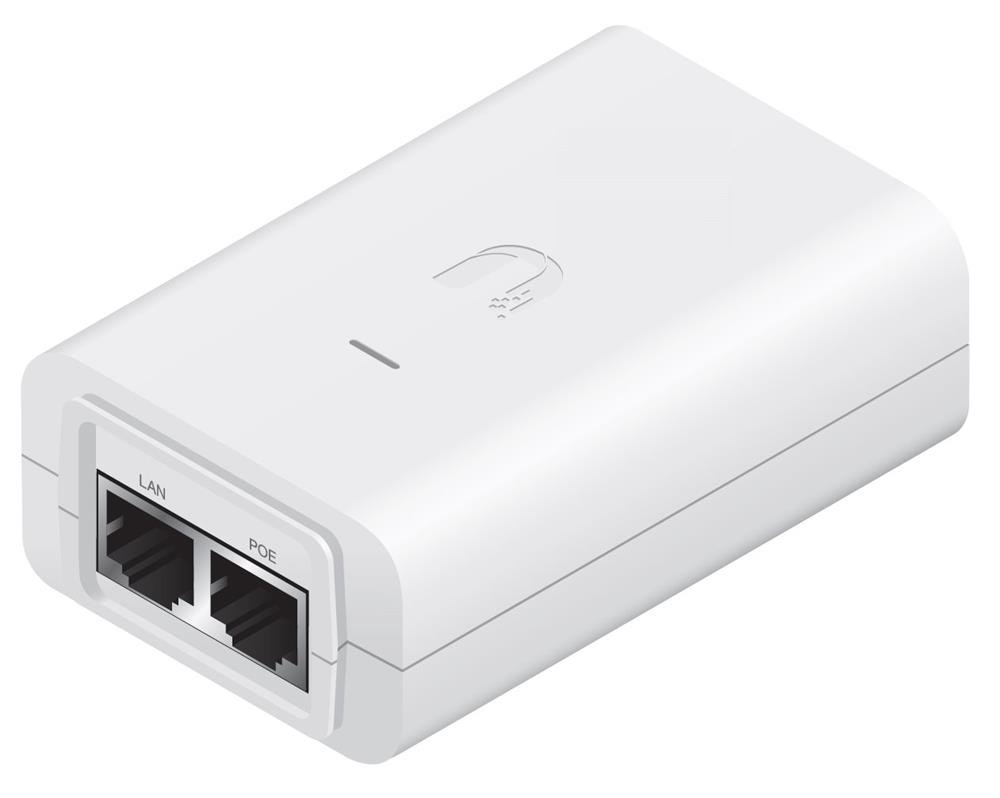

Ubiquiti POE-24-7W-G-AU PoE Injector, 24VDC, 7W, Gigabit
The Ubiquiti POE-24-7W-G Gigabit White (24V, 7W 0.3A) features earth grounding/ESD protection. Australian power cable.
Ubiquiti POE-24-7W-G Features:
• Dimensions: 72 x 45 x 33
• Weight: 72.1 g
• Output Voltage: 24VDC @ 0.3A
• LAN Activity Indicator: No
• Gigabit LAN Port: Yes
• Remote Reset Capability: Yes
• Reset Button: Yes
• Input Voltage: 100-240AC @ 50/60Hz
• Input Current: 0.3A @ 120VAC, 0.2A @240VAC
• Inrush Current: <40A Peak @ 120VAC, <70A Peak @ 230VAC
• Efficiency: 80+%
• Output Ripple: 1% Max.
• Switching Frequency: 65 kHz
• Line Regulation: ± 1%
• Load Regulation: ± 3%
• 2-Pair Powering: Pins 4, 5 (+) and Pins 7, 8 (-)
• Operating Temperature: 0 to 40°C (32 to 104°F)
• Storage Temperature: -30 to 70°C (-22 to 158°F)
• Operating Humidity: 35 to 95% Non-Condensing
• AC Connector: IEC-320 C6
• Data IN / POE: RJ45 Shielded Socket
• Surge Protection: Difference and Common Mode
• Clamping Protection: 11V Data, 60V Power
• Max. Surge Discharge: 1500A (8/20 µs) Power
• Peak Pulse Current: 36A (10/1000 µs) Data
• Shunt Capacitance: <5 pf data
• Response Time: <1 ns
• Compliance: IEC 60950-1:2005+A1 UL60950-1 EN55022:2010, EN55024:2010 FCC Class B
• AC Cable with Earth Ground: AU, RCM
