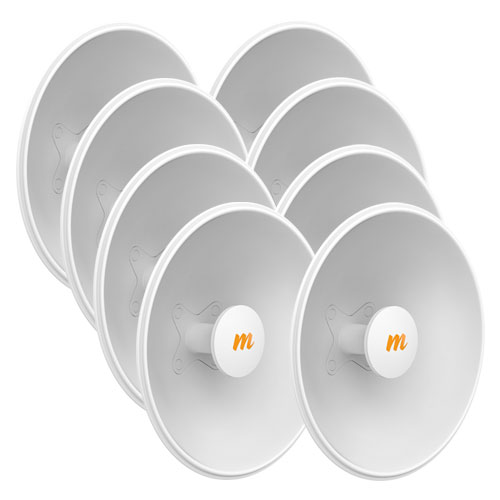

Mimosa N5-X25-8 Pack 4.9-6.4GHz 400mm Dish Ant. for C5x 8Pk

https://streakwave.com.au/web/image/product.template/4891/image_1920?unique=44974bb

Product Code: N2-X25-8

746.68 incl. GST 746.6800000000001 AUD 746.68

659.00


    This combination does not exist.

    Add to Cart

    Mimosa
    Mimosa

    The next generation of consumers will rely on wireless communication for everything. Mimosa is pioneering technology to bring the world a bigger, faster and stronger Internet. We believe that the future of the Internet is bigger capacity, faster speeds and better reliability. Mimosa wants to bring next generation Internet access everywhere. Whether your wireless access is non-existent or just too slow for the applications you need - Mimosa has the solution.


    100% Original
    Fast Delivery


    Share this product:

    Mimosa N25-X25-8 4.9-6.4GHz 400mm Dish Ant. for C5x 8Pk


    Product Code: N25-X25-8

    Mimosa N5-X25 (100-00091) is the industry’s most versatile, modular, radio solution with five gain options (8, 12, 16, 20 and 25 dBi). The ultra-rugged solution provides extended frequency operation from 4.9–6.4 GHz, with best-in-class noise immunity. Delivering the ultimate in flexibility and value, the C5x is the go-to solution for 5 GHz deployments. Out of the box, the C5x can be used in PTMP mode, with Ethernet link speeds of up to 100 Mbps. With the purchase of a PTMP speed feature key, speeds of up to 500 Mbps will be unlocked in PTMP mode. In order to unlock and utilize PTP mode, with speeds of up to 700 Mbps, a PTP feature key must be purchased. 8-Pack

    Product Features:

    • Twist-On, Flexible Antenna

    • PTP or PTMP Modes (feature key may be required)

    • Extended Frequency 4.9–6.4 GHz

    • Best-in-Class Noise Immunity

    • Ultra Rugged

    • Low-Power Consumption

    • Ultra Reliable

    • Gigabit Ethernet: 10/100/1000-Base-T

    • Management Services: Mimosa cloud monitoring and management; SNMPv2 & Syslog monitoring; HTTPS; HTML5-based web UI


     4.9-6.4 GHz Modular Twist-on Antenna, 400mm Dish for C5x only, 25 dBi gain. Contains 8 Antenna Assemblies.

    Specifications:

    • Gain: 25 dBi

    • Polarisation: Dual-slant 45°

    • Beamwidth Symmetric (3 dB): 8 dB

    • Front-to-Back Ratio (min): 40 dB

    • Front-to-Side Ratio (min): > 45 dB

    • Dimensions:

    • Diameter: 429 mm (16.89")

    • Depth: 116 mm (4.57")

    • Mount: Mimosa N5-X twist-on

    • Wind Survivability: 200 km/h (125 mph)
