Ubiquiti N-SW NanoSwitch
Ubiquiti
Ubiquiti Inc offers a broad and expanding portfolio of networking products and solutions for service providers and enterprises. Their service provider product platforms provide carrier-class network infrastructure for fixed wireless broadband, wireless backhaul systems and routing. Their enterprise product platforms provide wireless LAN infrastructure, video surveillance products, switching and routing solutions and machine-to-machine communication components. Ubiquiti Networks believes that their products are highly differentiated due to proprietary software protocol innovation, firmware expertise, and hardware design capabilities.
Share this product:

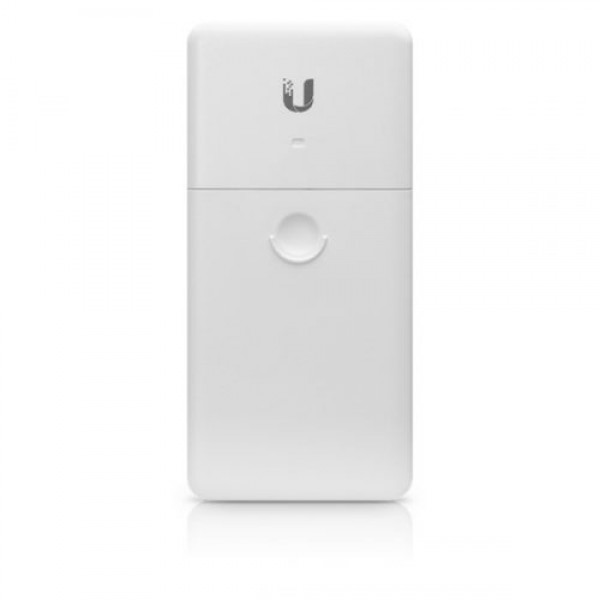

Ubiquiti N-SW NanoSwitch
Ubiquiti Nanoswitch N-SW Outdoor 4-Port PoE Passthrough Switch
Ubiquiti Model: N-SW
- (1) Gigabit 24V Passive PoE In Port
- (3) Gigabit 24V Passive PoE Out Ports
- Outdoor, Weather-Resistant Enclosure
Overview
Introducing the Ubiquiti Networks® NanoSwitch™, an unmanaged switch with four Gigabit Ethernet ports. For its total non‑blocking line rate, the NanoSwitch supports up to 4 Gbps.
N-SW Hardware Features Power over Ethernet Featuring a durable, weatherproof form factor, the NanoSwitch is ideal for outdoor deployment. For quick installation, the compact NanoSwitch can be easily mounted on a pole or wall.
- Dimensions 196.4 x 93.5 x 32.4 mm
- Weight 271 g
- Enclosure Characteristics White Polycarbonate
- Total Non-Blocking Line Rate 4 Gbps
- Typical Power Consumption 1.5W
- Passive PoE Max. Wattage per Port 24V, 2-Pair, 1A per Port (24W)
- Total Passive PoE Max. Wattage 24V, 2-Pair, 1A for 3 Ports (24W)
- Power Method Passive 24V, 2-Pair PoE In
- Power Supply POE-24-24W PoE Adapter (Not Included)
- Passive PoE Voltage Range 21.6 - 26.4V
- LEDs Speed/Link/Activity (All Ports)
- Networking Interfaces (4) 10/100/1000 Mbps RJ45 Ports
- PoE Interfaces Passive 24V, 2-Pair PoE In
- ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV
- Operating Temperature -30 to 70° C
- Operating Humidity 5 to 95% Non Condensing
