MTI Wireless Edge MT-464042/ND/B/P MTI 16dBi 65Deg 4x4 MU-MIMO 4.9-5.9GHz

Product Code: MT-464042/ND/B/P

224.46 incl. GST 224.46 AUD 224.46

217.09


    This combination does not exist.

    Add to Cart


    100% Original
    Fast Delivery


    Share this product:

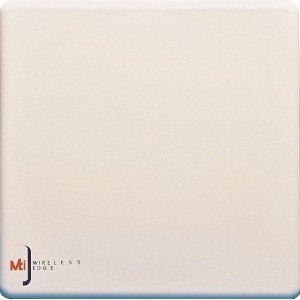

    MTI Wireless Edge MT-464042/ND/B/P MTI 16dBi 65Deg 4x4 MU-MIMO 4.9-5.9GHz

    ** SPECIFICALLY DESIGNED FOR USE WITH THE MIMOSA A5c **



    Electrical:

    • REGULATORY COMPLIANCE RoHS, CE 0682
    • FREQUENCY RANGE 4.9-5.9 GHz
    • GAIN 16 dBi ± 0.5 dB
    • VSWR 1.5 : 1 (typ), 1.7:1 (max)
    • POLARISATION Double Dual Linear ± 45°
    • -3dB ELEVATION BEAM-WIDTH 7º (typ)
    • -3 dB AZIMUTH BEAM-WIDTH 65° (typ)
    • ELEVATION SIDELOBE LEVEL -12 dB (typ.)
    • F/B RATIO -40 dB (typ)
    • CROSS POLARISATION -15 dB (typ)
    • PORT TO PORT ISOLATION 20dB (typ)

    Mechanical:

    • DIMENSIONS (LxWxD) 371 x 371 x 40mm (max)
    • CONNECTOR 4 x N-Type Female
    • WEIGHT 2 Kg (max)
    • MOUNTING KIT MT-120018
    • RADOME MATERIAL Plastic
    • BASE PLATE MATERIAL Aluminium with chemical conversion coating
    • POWER 6W (max)
    • INPUT IMPEDANCE 50 (ohm)
    • LIGHTNING PROTECTION DC Grounded
    • Antenna Mounting Bracket Included
