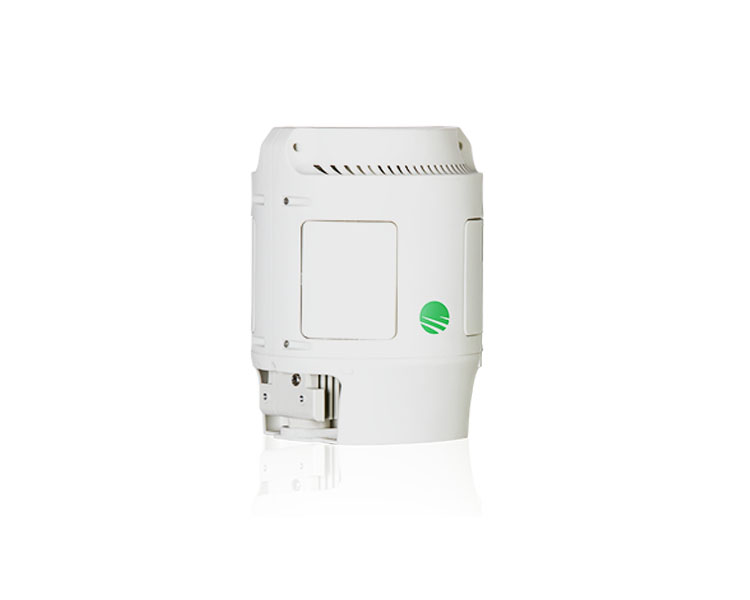

Siklu MH-N366-CCP-PoE-MWB MultiHaul™ TG Node, 360°, 3800Mbps, 1 RJ-45 10GE & 1 RJ-45 1GE & 1 SFP+ 10GE, Mounting Kit included, IP-67, White

MultiHaul™ BU, 90°, 500Mbps upgradable to 1800Mbps, 2 RJ-45 & 1 SFP (1 port PSE enabled), MK & PoE injector included, IP-65, White. 60GHz Point-to-Multipoint radio

•  Ultra-high multi-gigabit throughput
•  Plug & play with automatic alignment
•  Perfect for 5G fixed wireless and security networks

Millimetre waves + PtMP, a winning combo

The MultiHaul™ brings the advantages of millimetre waves – multi-gigabit throughput and high reliability – to a cost effective point-to-multipoint form factor. Seamlessly and quickly extend your fiber network and start delivering 5G-ready fixed-wireless today.

Product Features:

• Security / Safe City Networks

• Gigabit to the Home

• Smart City

• Business Services

• Wi-Fi Backhaul

Product Specifications:

• Topologies: Point to Multi-Point / Point to Point

• Built-In Antenna: Horizontal Scanning: 90° / Vertical Beam-width: 20°

• Frequency and Duplexing: 57-64GHz

• Channels and Width: 2 non-overlapping channels, 2160MHz wide

• Modulation and Coding: 9 levels of adaptive coding and modulation

• Line Rate (PHY) Line rate up to 2300Mbps

• Aggregate Throughput: Max capacity 1800Mbps, license dependant

• System Gain (Link Budget): 125dB (including antenna gain)

• Typical Reach: 800 - 1000ft (250 - 300m)

• Interfaces: 2 x RJ45 100/1000Base-T + 1 x SFP (supports 1GbE & 2.5GbE)

• Terminal Units (TU): Up to 8 Terminal Units

• Ethernet Features:

    IEEE 802.1d transparent bridging

    VLAN & VLAN stacking

    Jumbo frames

• Security: AES 128-bits

• Management and Provisioning:

    Zero-touch turn up; In-band, out-of-band management

    Web GUI: (one-click configuration of local and remote units) and embedded CLI

    SNMPv2/3, TACACS+, RADIUS

• Conformance:

    Radio: FCC Part 15.255

    EMC: FCC 47CFR.part 15

    Safety: UL 60950

• Power Supply: PoE, 10W (IEEE 802.3af) without PoE-out, 50W with PoE-Out (IEEE 802.3at+)

• PoE Out:

    ETH2: 26W, 802.3af

    ETH3: 13W, 802.3af

• Environmental:

    Operating Temperature: -22 to 131°F (-30 to 56°C)

    Optional: -49 to 131°F (-45 to 56°C)

    Ingress Protection Rating: IP65 (optional IP67)

• Dimensions: 7.5 x 5.2 x 3.5" (190.5 x 132.08 x 88.9mm)

• Weight: 3lbs (including mounting kit)

                                                                                                                                                       Please click here to download data sheet
