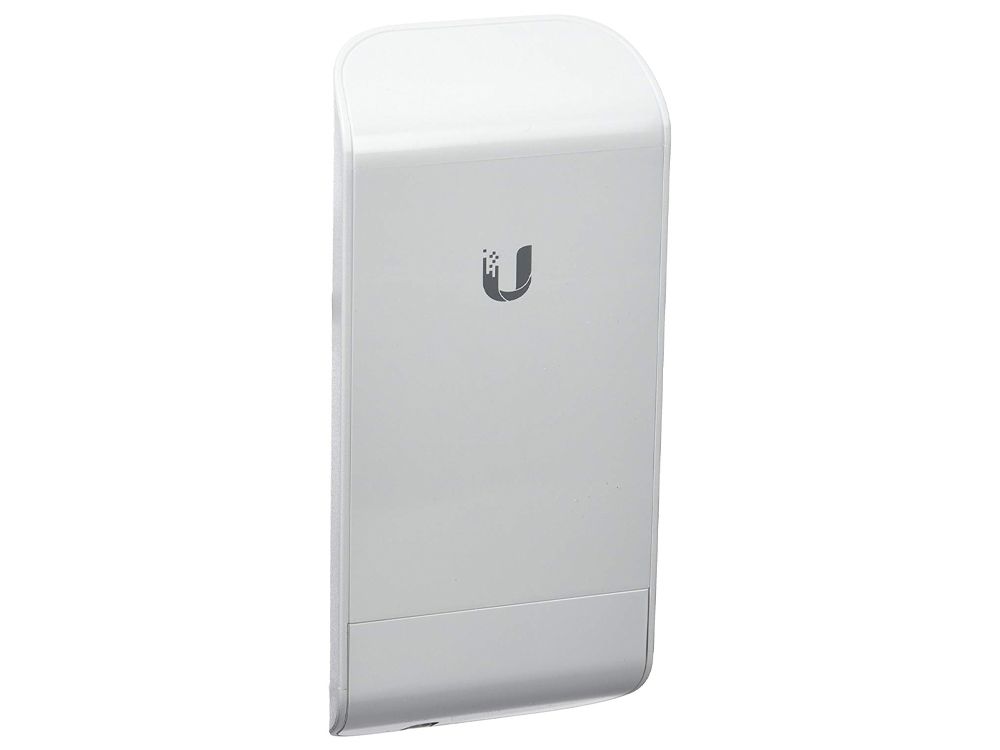

Ubiquiti LOCOM2 2.4GHz NanoStation Loco MIMO, AIRMAX
Ubiquiti
Ubiquiti Inc offers a broad and expanding portfolio of networking products and solutions for service providers and enterprises. Their service provider product platforms provide carrier-class network infrastructure for fixed wireless broadband, wireless backhaul systems and routing. Their enterprise product platforms provide wireless LAN infrastructure, video surveillance products, switching and routing solutions and machine-to-machine communication components. Ubiquiti Networks believes that their products are highly differentiated due to proprietary software protocol innovation, firmware expertise, and hardware design capabilities.
Share this product:
Ubiquiti LOCOM2 2.4GHz NanoStation Loco MIMO, AIRMAX
Product Code: LocoM2
Barcode: 817882023245
The original Ubiquiti NanoStation LOCOM2 set the bar for the world's first low-cost and efficiently designed outdoor broadband CPE. The Ubiquiti NanoStation M and Ubiquiti NanoStation Loco M take the same concept to the future with new redesigned sleek and elegant form-factors.
Ubiquiti 150+ Mpbs real outdoor throughput and up to 5km range. Featuring 2x2 MIMO technology, the new Ubiquiti NanoStation links significantly faster and farther than ever before.
The LOCOM2 antenna array designs featuring 8dBi at 2.4GHz. Both with optimised cross-polarity isolation and in a compact form-factor. Remote hardware reset circuitry of Ubiquiti NanoStation M allows for device to be reset remotely from power supply location.
Key Features:
Connect two remote locations on the one network
Share Internet connection between buildings, remote sites, etc.
Up to 200mW output power, 2x2 MIMO operation, 100Mbps
Integrated AirOS web software for controlling power, bridge/AP mode, etc.
Includes POE injector and 240V AC adaptor
Two units required for wireless bridge.
Dimensions: 161 mm x 31 mm x 80 mm
Weight: 180g (6.35 oz)
Power Supply: (PoE) 24V, 0.5A24V, 0.5A
Max. Power Consumption: 5.5W5.5W
Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
Operating Frequency: 2412-2462 MHz
Gain8.5 dBi
Networking Interface: (1) 10/100 Ethernet Port
Processor SpecsAtheros: MIPS 24Kc, 400 MHz
Memory: 32 MB SDRAM, 8 MB Flash
Frequency: 2.4 GHz
Cross-pol Isolation: 20 dB Minimum
Max. VSWR1.4:1
Beam-width: 60° (H-pol) / 60° (V-pol) / 60° (Elevation)
Polarisation: Dual Linear
Enclosure: Outdoor UV Stabilised Plastic
Mounting: Pole-Mount (Kit Included)
Operating Temperature: -30 to 75° C
Operating Humidity: 5 to 95% Noncondensing
Wireless Approvals: FCC Part 15.247, IC RS210, CE
RoHS Compliance: Yes
