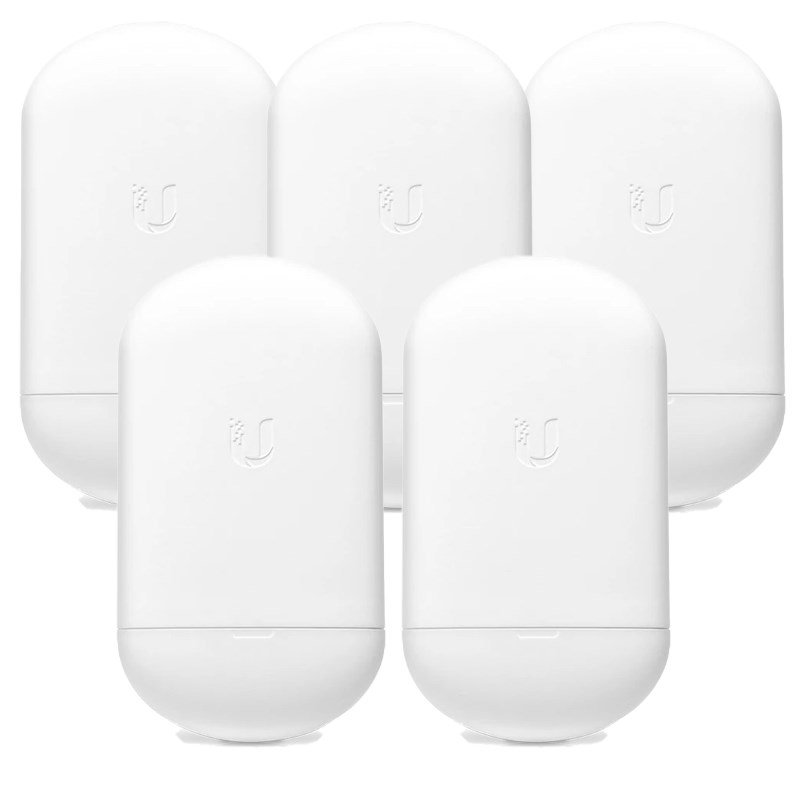

Ubiquiti Loco5AC-5 NanoStation UISP 5AC Loco NS-5ACL 5 Pack - No POE injector
Ubiquiti
Ubiquiti Inc offers a broad and expanding portfolio of networking products and solutions for service providers and enterprises. Their service provider product platforms provide carrier-class network infrastructure for fixed wireless broadband, wireless backhaul systems and routing. Their enterprise product platforms provide wireless LAN infrastructure, video surveillance products, switching and routing solutions and machine-to-machine communication components. Ubiquiti Networks believes that their products are highly differentiated due to proprietary software protocol innovation, firmware expertise, and hardware design capabilities.
Share this product:
Ubiquiti Loco5AC-5 NanoStation 5AC Loco NS-5ACL - No POE injector - 5 Pack
Product Code: Loco5AC-5 (5 Pack)
Barcode: 817882027250

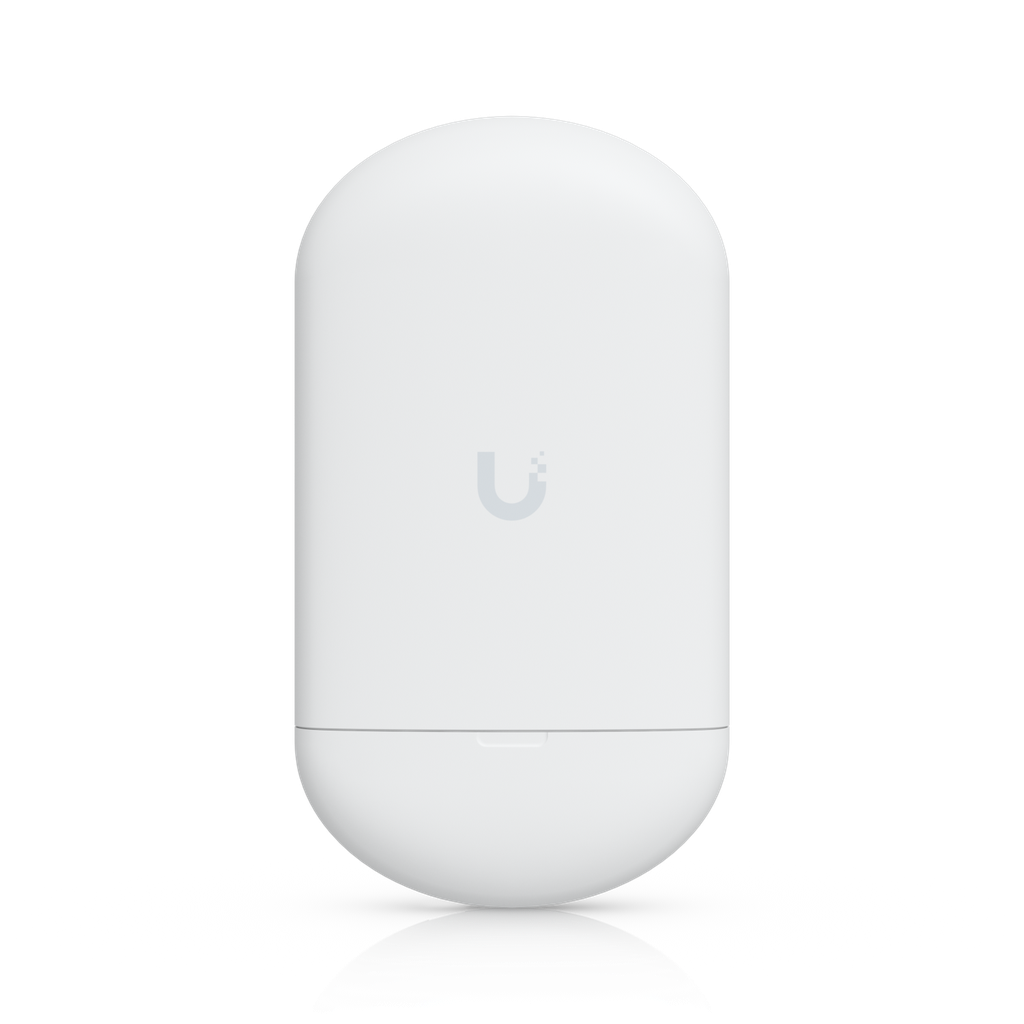

Ubiquiti Loco5AC NanoStation 5AC Loco 5 Pack
5 GHz, 10+ km link range
450+ Mbps throughput
Dedicated spectral analysis radio
Ubiquiti Networks set the bar for the world's first low-cost and efficient broadband Customer Premises Equipment (CPE) with the NanoStation® M. The NanoStation AC loco takes the same concept to the future with sleek form factors, along with integrated airMAX® (MIMO TDMA protocol) technology and dedicated Wi-Fi management.
The radio and antenna are combined to create a more efficient and compact CPE. The NanoStation AC loco gets maximum gain out of the smallest footprint. The low cost, high performance, and small form factor of the NanoStation AC loco makes it extremely versatile and economical to deploy.
| Mechanical | |
|---|---|
| Dimensions | 179 x 77.5 x 59.1 mm (7.1 x 3.1 x 2.3") |
| Weight | 180 g (6.4 oz) |
| Enclosure material | UV-stabilized plastic |
| Mounting | Pole mounting kit (Included) |
| Hardware | |
| Networking interface | (1) GbE RJ45 port |
| Power method | Passive PoE 2-pair (4, 5+; 7, 8 return) |
| Power supply | 24V, 0.3A gigabit PoE supply (Not included) |
| Supported voltage range | 22–27V DC |
| Max. power consumption | 7W |
| LEDs | Power, Ethernet, (4) signal strength |
| Ambient operating temperature | -40 to 70° C (-40 to 158° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| NDAA Compliant | Yes |
| System | |
| Gain | 13 dBi |
| Channel bandwidths | 10/20/30/40/50/60/80 MHz |
| Cross-pol isolation | 20 dB min. |
| Max. VSWR | 1.8:1 |
| Beamwidth | 45° (H-pol) / 45° (V-pol) / 45° (Elevation) |
| Polarization | Dual linear |
| Operating Frequency (MHz) | |
| Worldwide | 5150-5875 MHz |
| USA U-NII-1 U-NII-2A U-NII-2C U-NII-3 | 5150-5250 MHz 5250-5350 MHz 5240-5725 MHz 5725-5850 MHz |
| Management Radio (MHz) | |
| Worldwide | 2412 - 2472 MHz |
