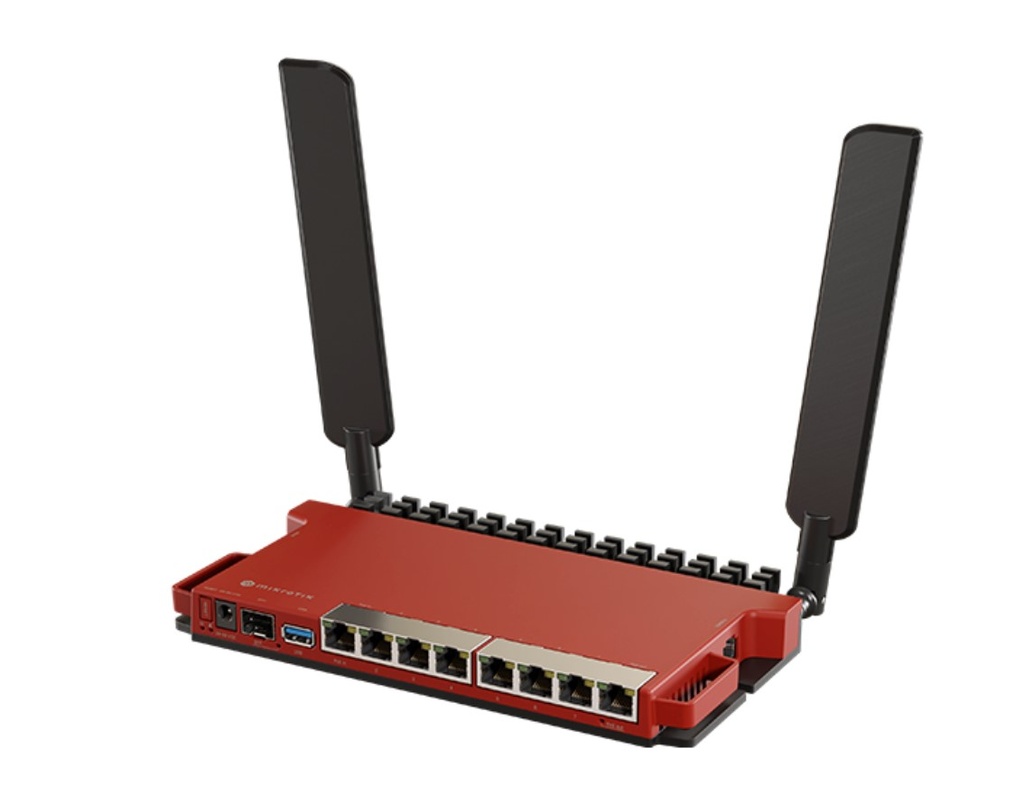

Mikrotik L009UiGS-2HaxD-IN PoE in out, 8xGBe, 1x2.5G SFP, Wifi6 2.4GHz


Product Code: L009UiGS-2HaxD-IN

Barcode: 4752224008596

243.65 incl. GST 243.65 AUD 243.65


    This combination does not exist.

    Add to Cart


    MikroTik provides hardware and software for Internet connectivity. Our experience in using industry standard PC hardware and complete routing systems allowed us in 1997 to create the RouterOS software system that provides extensive stability, controls, and flexibility for all kinds of data interfaces and routing.

    100% Original
    Fast Delivery

    Share this product:

    Mikrotik L009UiGS-2HaxD-IN PoE in out, 8xGBe, 1x2.5G SFP, Wifi6 2.4GHz

    L009 is more than just a router. This product line is up to 4 times faster than Mikrotik RB2011, it has a modern ARM CPU with container support, an innovative enclosure that allows mounting up to four routers in a single 1U space, more RAM, PoE, and 2.5G SFP support. This version comes with 2.4 GHz ax dual-chain wireless.

    There are three main reasons to choose the Mikrotik L009: better performance, more features, and some interesting quality-of-life improvements. Let’s start with the raw power and performance improvements.

    Mikrotik L009 features a powerful dual-core ARM CPU. It offers significant improvement when it comes to routing and filtering, complex firewall rules, IPsec hardware encryption, and various advanced RouterOS features. ARM CPU architecture provides significant advantages over older MIPS-based devices. Like using all the latest Linux Kernel features. Or implementing your own container projects. The combination of a modern ARM CPU and a full-sized USB port is perfect for running custom container projects. You could run a Pi-hole adblock on this router, for example. Or you could use the USB to add an LTE modem of your choice. Imagination is the real limit here.

    Mikrotik L009 is up to 4 times faster than RB2011 in most cases and setups, from simple fast path routing to complex bridge filters.

    All the ports are now Gigabit Ethernet ports. There’s PoE-in on the first port. You can use it instead of the DC jack to power the unit. And there’s PoE-Out* on the last port – for powering other devices. Another helpful addition is an SFP cage that supports both Gigabit and 2.5 Gigabit connectivity. We have tested a variety of MikroTik SFP modules and cables that support higher speeds – the 2.5G capability makes a sysadmin’s life so much easier– there’s a console port for quick direct-access configuration!

    At the heart of it all we have a speedy Marvell Peridot Switchchip which offers an impressive 2.5 Gigabit full duplex connection to the CPU to all the ports except Ether1. The first port has its own Gigabit full duplex line to the CPU. That means – countless configurations with no bottlenecks!

    The 2.4 GHz dual-chain wireless connectivity is also much stronger now. The Generation 6 Wifi6 or the ax standard wireless offers up to 90% higher speed in the 2.4 GHz spectrum! Not to mention the overall signal stability. It can handle more clients with better responsiveness.

    Mikrotiks new enclosure is a spectacular innovation on its own. It’s the same form-factor you might have seen with our highly sought-after Mikrotik RB5009 devices. It has several extremely useful properties. First of all, the case acts as a massive heat-sink, protecting your setups from overheating. But here’s the fun part: with a simple set of accessories, you can fit up to four of these routers in a single 1U rackmount space.

    Here at MikroTik, we’re the world champions of server room tetris. So here’s our latest lifehack for the most efficient server rooms: grab an RB5009 with PoE-out ports. And mount it together with seven L009 routers in just two 1U rackmount spaces. You’ll become a living legend among system administrators, setting a new example of efficient space management and simple, reliable powering. And if you don’t need the wireless capability, you can cut costs even more and try the other version of this router: the Mikrotik L009UiGS-RM. It has all the same features – except for the 2.4 GHz wireless. And it comes with all the necessary mounting accessories.

     L009UiGS-2HaxD-IN Specifications

    • Product code L009UiGS-2HaxD-IN

    • Architecture ARM 64bit

    • CPU IPQ-5018

    • CPU core count 2

    • CPU nominal frequency 800 MHz

    • Switch chip model 88E6190

    • RouterOS license 5

    • Operating System RouterOS v7

    • Size of RAM 512 MB

    • Storage size 128 MB

    • Storage type NAND

    • MTBF Approximately 200'000 hours at 25C

    • Tested ambient temperature -40°C to 70°C

    Wireless capabilities

    • Wireless 2.4 GHz Max data rate 574 Mbit/s

    • Wireless 2.4 GHz number of chains 2

    • Wireless 2.4 GHz standards 802.11b/g/n/ax

    • Antenna gain dBi for 2.4 GHz 4

    • Wireless 2.4 GHz chip model IPQ-5018

    • Wireless 2.4 GHz generation Wi-Fi 6

    • WiFi speed AX600


    • 10/100/1000 Ethernet ports 8

    • Number of 1G Ethernet ports with PoE-out 1

    • Fiber

    • Details

    • SFP ports 1 (2.5G supported)


    • Serial console port RJ45

    • Number of USB ports 1

    • USB Power Reset Yes

    • USB slot type USB 3.0 type A

    • Max USB current (A) 1.5


    • Number of DC inputs 2 (DC jack, PoE-IN)

    • DC jack input Voltage 24-56 V

    • Max power consumption 45 W

    • Max power consumption without attachments 12 W

    • Cooling type Passive

    • PoE in 802.3af/at

    • PoE in input Voltage 24-56 V


    • PoE-out ports Ether8

    • PoE out Passive PoE

    • Max out per port output (input 18-30 V) 1 A

    • Max out per port output (input 30-57 V) 450 mA

    • Max total out (A) 1.0 A

    Certification & Approvals

    • Certification CE, FCC, IC, EAC, ROHS

    • IP 20


    • Mode button Yes
