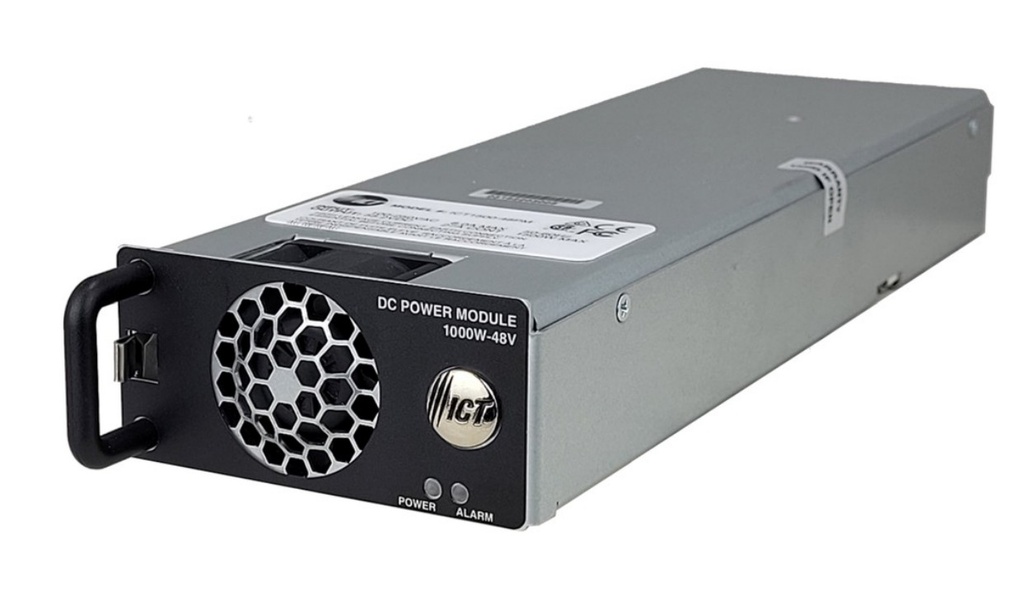

ICT Power ICT1000-48PM Power Module - 48VDC / 1000W
ICT Power 1000-Watt DC Power Module
ICT 1000-watt hot-swappable DC power module is designed to provide high performance, reliability, and redundancy for ICT 48-volt DC power systems. The high efficiency module is compatible with the ICT Modular Power Series, MPS Ultra, Hybrid Power Series and Hybrid Ultra which offer remote Ethernet-based communications for monitoring and control; enhanced security and reliability features including SNMPv1/v2c/v3 and TLS 1.3; fan fail detect alarms; and advanced battery management features for sealed lead acid and lithium-ion batteries.
AC InputAC Input Voltage (Nominal) 120/240 VAC Input Voltage Range 100-300 VAC (no derating) AC Input Current (per Module) at 110VAC nom. 11A max. Power Factor (typical) 0.99 Frequency 50/60Hz
Power ModulesICT1000-48PM Output Voltage +/- 55.2 VDC Output Voltage Range (adjustable) 46.0 – 60.0 VDC Power output per Module 1000W Maximum Output Current 18A Efficiency (peak) 91% Output ripple (rms) < 60mV Line regulation +/- 0.1% Load regulation 1.20% max
| AC Input Voltage (Nominal) | 120/240 VAC |
| Input Voltage Range | 100-300 VAC (no derating) |
| AC Input Current (per Module) at 110VAC nom. | 11A max. |
| Power Factor (typical) | 0.99 |
| Frequency | 50/60Hz |
| ICT1000-48PM | |
| Output Voltage | +/- 55.2 VDC |
| Output Voltage Range (adjustable) | 46.0 – 60.0 VDC |
| Power output per Module | 1000W |
| Maximum Output Current | 18A |
| Efficiency (peak) | 91% |
| Output ripple (rms) | < 60mV |
| Line regulation | +/- 0.1% |
| Load regulation | 1.20% max |
