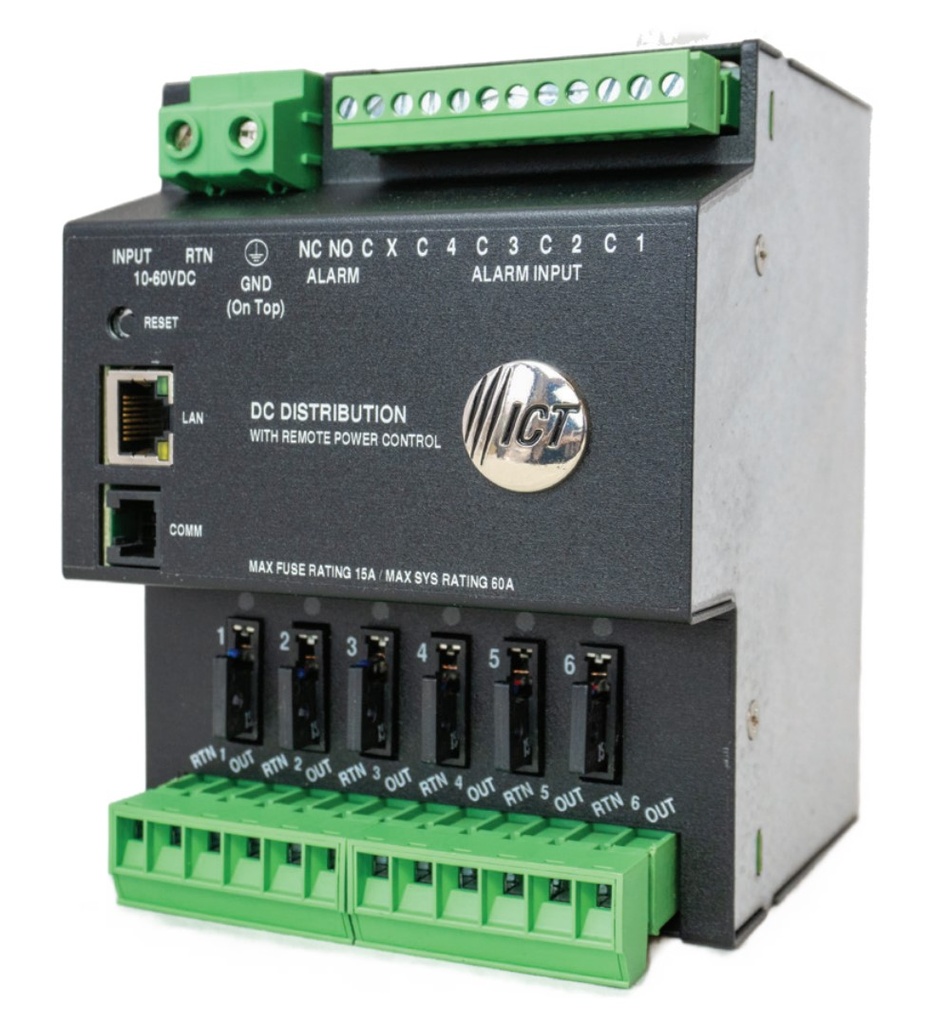

ICT Power ICT-DIN-PDU6 Intelligent DIN Power Distribution Unit 6x Outputs With Ethernet Monitoring & Control

ICT Power ICT-DIN-PDU6 Intelligent DIN Power Distribution Unit 6x Outputs With Ethernet Monitoring & Control

Six Fuse-Protected Outputs With Ethernet Monitoring & Control

The ICT DIN Series is designed, manufactured and supported in North America to meet the need for wireless communications, broadband and other demanding DC power applications.

Applications

• Fixed Wireless Access networks

• Internet of Things (IoT)

• SCADA

• Security and surveillance

• Industrial DC power

The ICT Intelligent DIN Power Distribution Unit is designed to provide DC power distribution to six individual outputs each rated at 15 A max. The integrated Ethernet controller provides reporting of current and status for each individual load, as well as the ability to power cycle each output.

Combined with the ICT DIN 360-watt power supply, remote monitoring and control of battery current and voltage, low voltage disconnect setpoints, and battery charge current settings are available through the ethernet controller and user interface.

Features

• Six DC load outputs each rated at 15 Amax.

• Each output is GMT fuse-protected

• Output voltage range of 10-60 VDC

• 60 A system current rating

• -30oC to +60oC operating temperature range TCP/IP Ethernet is standard and provides complete and easy-to-use remote monitoring and control of the connected loads using secure web server and graphical user interface or SNMP

• Supports HTTPS, SMTP, TLS1.2 and SNMPv3 protocols

• User log-off function for added security

• Network Watchdog feature

• Automatic load shedding

• Remote Alarm Report for each load output including fuse trip, voltage and current deviations

• Four alarm inputs for site monitoring sensors

• 30 day data logging

• Form C contacts

• Serial port for connecting to ICT DIN Series 360 W power supply, allowing remote monitoring and reporting
