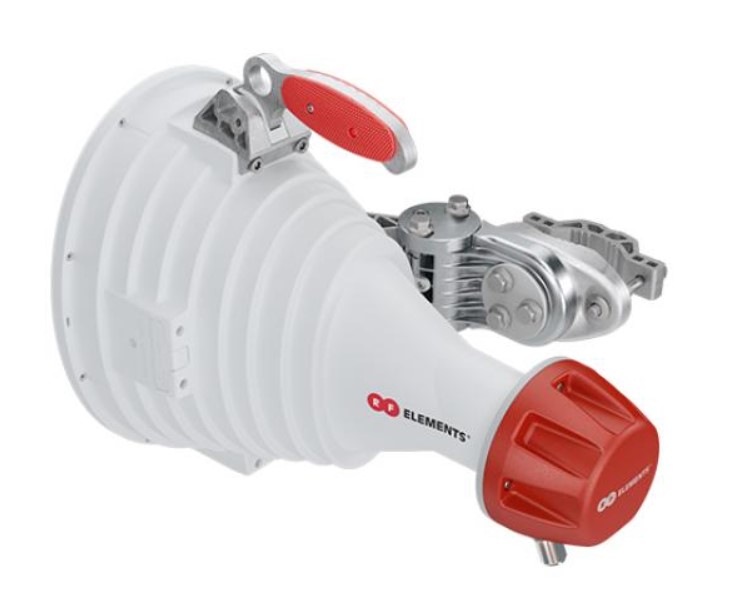

RF Elements HG3-CC-A30 Carrier Class Asymmetrical Horn 30 Degree Cone Coverage

https://streakwave.com.au/web/image/product.template/5419/image_1920?unique=36dd142

Product Code: HG3-CC-A30

866.36 incl. GST 866.36 AUD 866.36

764.67


    This combination does not exist.

    Add to Cart

    100% Original
    Fast Delivery


    Share this product:

    RF Elements HG3-TP-S30 5GHz Asymmetrical Horn TwistPort 30°

    30° Asymmetrical Horn CC has radiation pattern narrow in the azimuth and wide in the elevation plane, greatly improving the coverage planning options. Increased gain and zero side lobes are suitable for rural deployments. 30° Asymmetrical Horn CC Antenna exceeds the traditional patch array sector antenna thanks to high stability of gain and radiation pattern in the whole bandwidth of operation. Outstanding noise rejection and precision of radiation pattern favor 30° Asymmetrical Horn CC antenna for high-density AP clusters and dense co-location sites. 30° Asymmetrical Horn CC Antenna features two N-female connectors

    TECHNICAL DATA

    • Radio Connection 2x N Female Bulkhead Connector

    • Antenna Type Horn

    • Materials UV Resistant ABS Plastic, Polycarbonate, HDPE, Aluminium, Stainless Steel

    • Enviromental IP55

    • Pole Mounting Diameter 36-80 mm (recommend as close to 80mm as possible)

    • Temperature -35°C to +55°C (-31°F to +131°F)

    • Wind Survival 160 km/hour Wind Loading 67 N at 160 km/hour

    • Mechanical Adjustment ± 25° Elevation, ± 20° Azimuth

    • Weight 4.5 kg / 10.0 lbs – single unit* 6.6 kg / 14.6 lbs – single unit incl. package*

    • Single Unit Retail Box: 435 × 360 × 250 mm / 17.1 × 14.2 × 9.8 inch*
