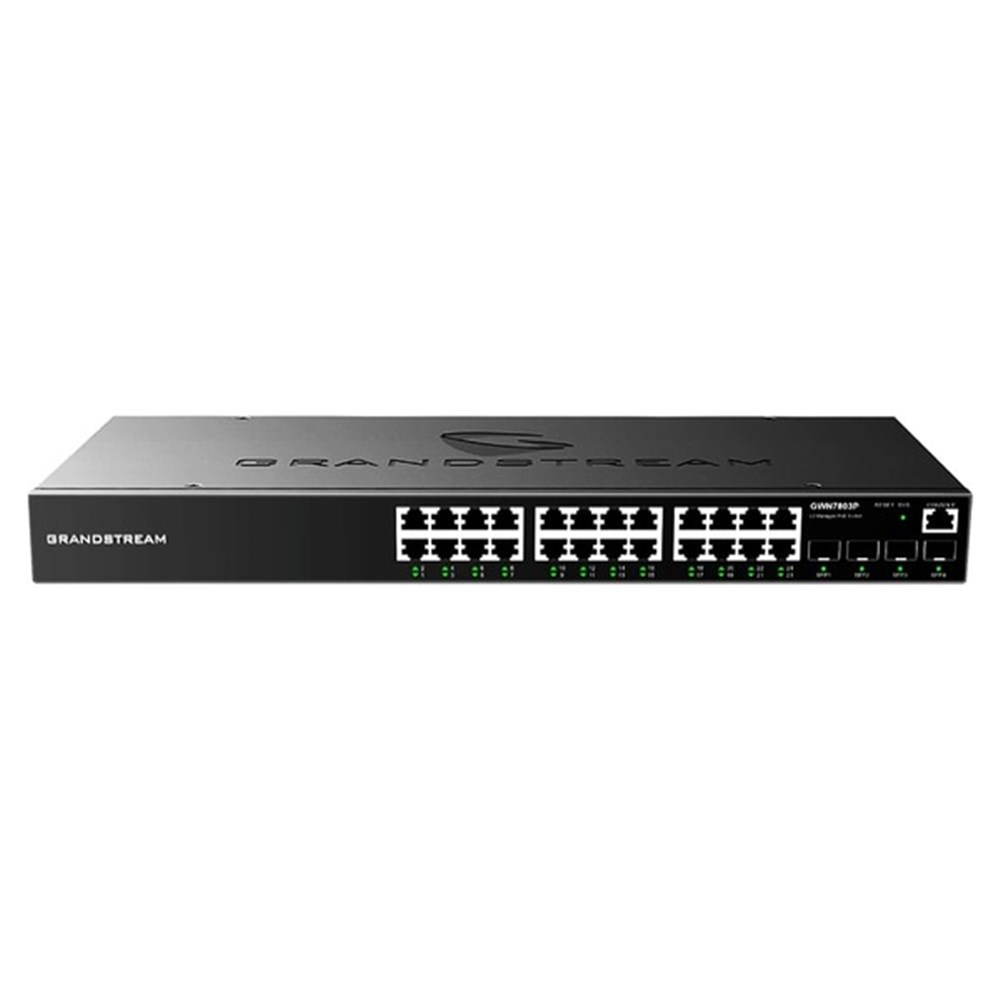

Grandstream GWN7803P PoE Network Switch 24xGigE 4xSFP

Grandstream GWN7803P PoE Network Switch 24xGigE 4xSFP

The Grandstream GWN7800 series are Layer 2+ managed network switches that allow small-to-medium enterprises to build scalable, secure, high performance, and smart business networks that are fully manageable. It supports advanced VLAN for flexible and sophisticated traffic segmentation, advanced QoS for prioritization of network traffic, IGMP Snooping for network performance optimization, and comprehensive security capabilities against potential attacks. The PoE models provide smart dynamic PoE output to power IP phones, IP cameras, Wi-Fi access points and other PoE endpoints. The GWN7800 series can be managed in a number of ways, including the local network controller embedded in the web user interface of the GWN7800 series switch. The series is also supported by GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise Wi-Fi management platform. The enterprise-grade GWN7800 series are the ideal managed network switches for small-to-medium businesses.

Key Features & Benefits of the Grandstream GWN7803P Enterprise 24-Port Gigabit L2+ Managed PoE Switch:

• 24x Gigabit Ethernet Ports with PoE/PoE+ support (IEEE 802.3af/at), 4x Gigabit SFP Ports

• Smart power control to support dynamic PoE/PoE+ power allocation per port

• Max. PoE Power Budget 360W

• Max Output Power per PoE Port 30W

• Total non-blocking throughput 28Gbps

• Switching Capability 56Gbps

• Forwarding Rate 41.66M packets per second

• Packet Buffer 4.1MB

• Forwarding Mode: store-and-forward

• Integrated Power Supply 400W

• Multicast: IGMP Snooping, MLD Snooping, MVR

• DHCP server, DHCP relay, Option 82, 60,160 and 43

• 1x Console Port

• 1x tri-color LED for device tracking and status indication,

• 28x green LEDs for data ports

• 24x yellow-color LEDs for PoE ports

• Desktop, wall-mount, or rack-mount (rack-mount brackets included)

• Operating temperature 0°Cto 45°C, humidity 10-90% RH (Non-condensing)

• Storage temperature -10°C to 60°C, humidity: 5% to 95% (Non-condensing)

• 3 Year Warranty

Switching:

• 8K static, dynamic and filtering MAC addresses

• 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN

• VLAN virtual interface

• GVRP (pending)

• 8 link aggregation groups

• Spanning tree, 64 instances for STP/RTSP/MSTP

QoS/ACL:

• Auto detection and prioritization of voice/video/RTP/SIP/other latency-sensitive packets (pending)

• Port priority

• Priority mapping

• Queue scheduling, including SP, WRR, WFQ, SP-WRR and SP-WFQ

• Traffic shaping

• Rate limit

• 1.5K ACL for Ethernet, IPv4 and IPv6

Maintenance:

• CPU and memory monitoring, SNMP, RMON, LLDP&LLDP-MED, backup and restore, syslog, alert, diagnostics including Ping, Traceroute, port mirroring, UDLD(TBD) and copper test

Security:

• User hierarchical management and password protection, HTTPS, SSH, Telnet

• 802.1X authentication

• AAA authentication including RADIUS, TACACS+

• Storm control

• Port isolation, port security, sticky MAC

• Filtering MAC address

• IP source guard, DoS attack prevention, ARP inspection

• DHCP Snooping

• Loop protection including BPDU protection, root protection and loopback protection

• Kensington Security Slot (Kensington Lock) support
