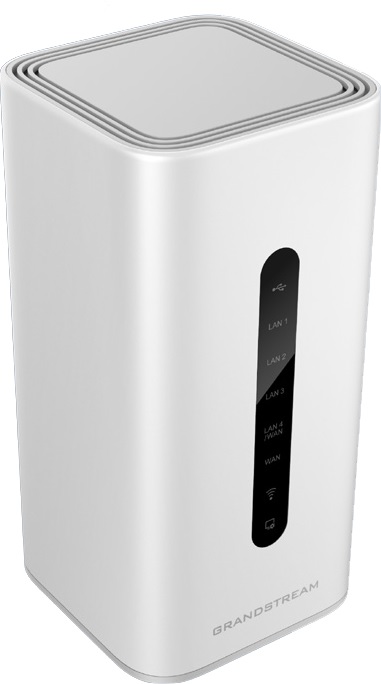

Grandstream GWN7062 2x2 802.11ax WiFi ROUTER with 3 LAN + 1 LAN/WAN + 1 WAN GigE
Grandstream
Grandstream Networks, Inc. has been connecting the world since 2002 with SIP Unified Communications solutions that allow businesses to be more productive than ever before. Grandstream solutions lower communication costs, increase security protection and enhance productivity.
Share this product:
Grandstream GWN7664LR 4x4 802.11ax WiFi-6 Wireless Access Point Outdoor
Grandstream GWN7664LR Outdoor 4x4 802.11ax WiFi 6 Long Range Wireless Access Point. The GWN7664LR is an outdoor 802.11ax 4×4:4 Wi-Fi 6 access point for medium-to-large businesses and enterprises who need to provide long-range coverage in both indoor and outdoor spaces. It offers weatherproof casing and heat resistant technology, dual-band 4×4:4 MU-MIMO with DL/UL OFDMA technology and a sophisticated antenna design for maximum network through that supports 750 clients and an expanded 300-meter coverage range.
To ensure easy installation and management, the GWN7664LR Wifi6 AP includes a built-in controller embedded within the product’s web user interface. It is also supported by GWN.Cloud and GWN Manager, Grandstream’s free cloud and on-premise Wi-Fi management platform. The GWN7664LR is the ideal Wi-Fi AP for voice-over-Wi-Fi deployment and offers a seamless connection with Grandstream’s Wi-Fi capable voice and video IP phones. With support for advanced QoS, low-latency real-time applications, mesh networks, captive portals and dual Gigabit networks ports with PoE/PoE+, the GWN7664LR is an ideal outdoor Wi-Fi access point for enterprises, multiple floor offices, warehouses, hospitals, schools and more.
Features
3.55Gbps aggregate wireless throughput, 3.5Gbps aggregate wired throughout
Dual-band 2.4GHz and 5GHz 4×4:4 MU- MIMO with DL/UL OFDMA technology
Support 750 concurrent Wi-Fi client devices
Up to 300-meter coverage range
Advanced QoS to ensure real-time performance of low-latency applications
Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
Power Supply Not Included - Sold Separately
Details | |
---|---|
Manufacturer's Code | GWN7664LR |
Wi-Fi Standards | IEEE 802.11 b/g/n/ac/ax |
Antennas | 4 dual band external antennas; 2.4GHz, gain 3.5dBi, 5 GHz, gain 3.5dBi |
Frequency Bands | 2.4GHz radio: 2412 - 2484 MHz, 5GHz radio: 5180 - 5825 MHz, *Not all frequency bands can be used in all regions |
Wi-Fi Data Rates | 2.4GHz - up to 802.11ax: 1147 Mbps, 5GHz - up to 802.11ax: 2402 Mbps |
Channel Bandwidth | 2.4G: 20 and 40 MHz (x4), 5G: 20, 40 and 80 MHz (x4) |
System Security | WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device |
MU-MIMO | 4×4:4 2.4GHz, 4×4:4 5GHz |
Coverage Range | Up to 300 meters *Coverage range can vary based on environment |
Maximum TX Power | 5G: 25dBm, 2.4G: 26dBm |
Receiver Sensitivity Max | 2.4GHz - 99dBm, 5GHz -95dBm |
SSIDs | 32 SSIDs total, 16 per radio (2.4GHz & 5GHz) |
Concurrent Clients | 750 |
Network Interfaces | 1x 1G Port and 1x 2.5G Port, support 2.5Gbps aggregate wired throughout |
Auxiliary Ports | 1x Reset Pinhole |
Mounting | Wall mount or pole mount, kits included |
LEDs | 1 tri-color LEDs for device tracking and status indication |
Network Protocols | IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM |
QoS | 802.11e/WMM, VLAN, TOS |
Network Management | Embedded controller can manage up to 50 local GWN APs, GWN.Cloud offers a free cloud management platform for unlimited GWN APs, GWN Manager offers premise-based software controller for up to 3,000 GWN APs |
Power and Green Energy Efficiency | PoE 802.3af/ 802.3at; Maximum Power Consumption: 18W |
Environmental | Operation:-30°Cto 60°C, Storage: -30°C to 60°C, Humidity: 10% to 90% Non-condensing |
Physical | Unit Dimension: 562.3mm(L)x140mm(W)x44.9mm(H); Unit + Mounting Kits Dimension: 562.3mm(L)x140mm(W)x66.9mm(H); Entire Package Dimension: 260mm(L)x218.5mm(W)x108mm(H); |
Package Content | GWN7664LR 802.11ax Wireless AP, Mounting Kits, Quick Installation Guide |
Weatherproof Grade | IP66-level weatherproof capability when installed vertically |
Compliance | FCC, CE, RCM, IC, UKCA |
