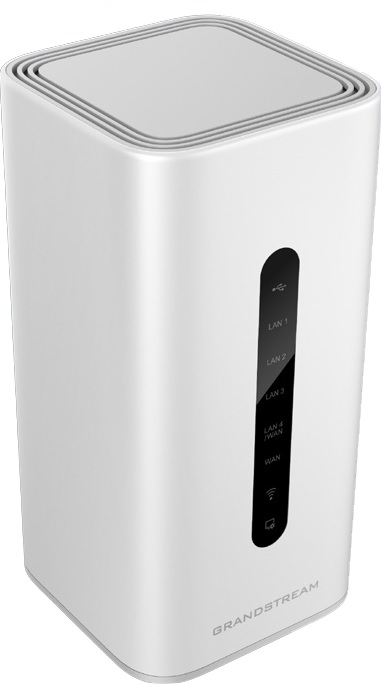

Grandstream GWN7062 2x2 802.11ax WiFi ROUTER with 3 LAN + 1 LAN/WAN + 1 WAN GigE

Product Code: GWN7062

Barcode: 6947273703600

191.51 incl. GST 191.51 AUD 191.51


    This combination does not exist.

    Add to Cart


    Grandstream Networks, Inc. has been connecting the world since 2002 with SIP Unified Communications solutions that allow businesses to be more productive than ever before. Grandstream solutions lower communication costs, increase security protection and enhance productivity.

    100% Original
    Fast Delivery

    Share this product:

    Grandstream GWN7664LR 4x4 802.11ax WiFi-6 Wireless Access Point Outdoor

    Grandstream GWN7664LR Outdoor 4x4 802.11ax WiFi 6 Long Range Wireless Access Point. The GWN7664LR is an outdoor 802.11ax 4×4:4 Wi-Fi 6 access point for medium-to-large businesses and enterprises who need to provide long-range coverage in both indoor and outdoor spaces. It offers weatherproof casing and heat resistant technology, dual-band 4×4:4 MU-MIMO with DL/UL OFDMA technology and a sophisticated antenna design for maximum network through that supports 750 clients and an expanded 300-meter coverage range.

    To ensure easy installation and management, the GWN7664LR Wifi6 AP includes a built-in controller embedded within the product’s web user interface. It is also supported by GWN.Cloud and GWN Manager, Grandstream’s free cloud and on-premise Wi-Fi management platform. The GWN7664LR is the ideal Wi-Fi AP for voice-over-Wi-Fi deployment and offers a seamless connection with Grandstream’s Wi-Fi capable voice and video IP phones. With support for advanced QoS, low-latency real-time applications, mesh networks, captive portals and dual Gigabit networks ports with PoE/PoE+, the GWN7664LR is an ideal outdoor Wi-Fi access point for enterprises, multiple floor offices, warehouses, hospitals, schools and more.


    • 3.55Gbps aggregate wireless throughput, 3.5Gbps aggregate wired throughout

    • Dual-band 2.4GHz and 5GHz 4×4:4 MU- MIMO with DL/UL OFDMA technology

    • Support 750 concurrent Wi-Fi client devices

    • Up to 300-meter coverage range

    • Advanced QoS to ensure real-time performance of low-latency applications

    • Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device

    Power Supply Not Included - Sold Separately

    Manufacturer's CodeGWN7664LR
    Wi-Fi StandardsIEEE 802.11 b/g/n/ac/ax
    Antennas4 dual band external antennas; 2.4GHz, gain 3.5dBi, 5 GHz, gain 3.5dBi
    Frequency Bands2.4GHz radio: 2412 - 2484 MHz, 5GHz radio: 5180 - 5825 MHz, *Not all frequency bands can be used in all regions
    Wi-Fi Data Rates2.4GHz - up to 802.11ax: 1147 Mbps, 5GHz - up to 802.11ax: 2402 Mbps
    Channel Bandwidth2.4G: 20 and 40 MHz (x4), 5G: 20, 40 and 80 MHz (x4)
    System SecurityWEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device
    MU-MIMO4×4:4 2.4GHz, 4×4:4 5GHz
    Coverage RangeUp to 300 meters *Coverage range can vary based on environment
    Maximum TX Power5G: 25dBm, 2.4G: 26dBm
    Receiver Sensitivity Max2.4GHz - 99dBm, 5GHz -95dBm
    SSIDs32 SSIDs total, 16 per radio (2.4GHz & 5GHz)
    Concurrent Clients750
    Network Interfaces1x 1G Port and 1x 2.5G Port, support 2.5Gbps aggregate wired throughout
    Auxiliary Ports1x Reset Pinhole
    MountingWall mount or pole mount, kits included
    LEDs1 tri-color LEDs for device tracking and status indication
    Network ProtocolsIPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
    QoS802.11e/WMM, VLAN, TOS
    Network ManagementEmbedded controller can manage up to 50 local GWN APs, GWN.Cloud offers a free cloud management platform for unlimited GWN APs, GWN Manager offers premise-based software controller for up to 3,000 GWN APs
    Power and Green Energy EfficiencyPoE 802.3af/ 802.3at; Maximum Power Consumption: 18W
    EnvironmentalOperation:-30°Cto 60°C, Storage: -30°C to 60°C, Humidity: 10% to 90% Non-condensing
    PhysicalUnit Dimension: 562.3mm(L)x140mm(W)x44.9mm(H); Unit + Mounting Kits Dimension: 562.3mm(L)x140mm(W)x66.9mm(H); Entire Package Dimension: 260mm(L)x218.5mm(W)x108mm(H);
    Package ContentGWN7664LR 802.11ax Wireless AP, Mounting Kits, Quick Installation Guide
    Weatherproof GradeIP66-level weatherproof capability when installed vertically
    ComplianceFCC, CE, RCM, IC, UKCA
