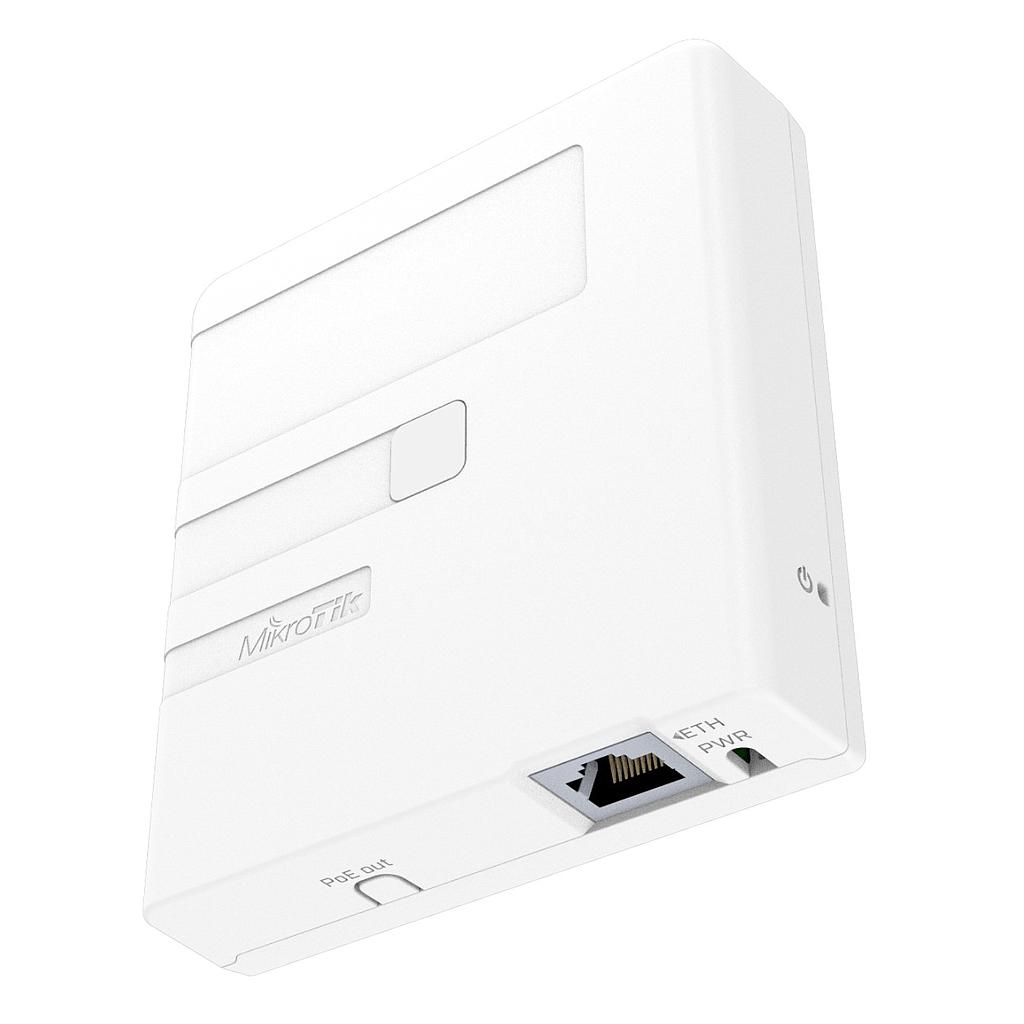

MikroTik GPEN21 GPEN PoE Injector with SFP
The GPEN21 is a smart power injector that serves as an advanced software controlled repeater. Not only can it power your uplink devices via PoE, it can also provide a range of useful software features:
Interface management and monitoring
GPEN link fault detection
VLAN support
SNMP reporting
Basic traffic shaping
GPEN21 has an Ethernet and SFP port for fiber connectivity. Customers can choose to use GPEN21 to power optical module for uplink to provider, or to provide PoE to power Ethernet uplink to provider (that uses our GPeR and/or netPower products) The GPEN unit can be securely attached to a wall or the communications cabinet. The Ethernet cable can be routed either directly through its bottom cable opening or into the wall, as preferred.
Product specifications:
| Details | |
|---|---|
| Product code | GPEN21 |
| 10/100/1000 Ethernet ports | 2 |
| Can be used indoors | Yes |
| Certification | CE/RED, EAC, ROHS |
| DC jack input Voltage | 12-57 V |
| Max out per port output (input < 30 V) | 850 mA |
| Max out per port output (input > 30 V) | 625 mA |
| Max power consumption | 30 W |
| Max power consumption without attachments | 3 W |
| Max total out (A) | 850 mA |
| Mode button | Yes |
| Number of 1G Ethernet ports with PoE-out | 1 |
| Number of DC inputs | 2 (PoE-IN, DC jack) |
| Output Voltage | Yes, Passive PoE up to 57 V |
| PoE in | 802.3af/at |
| PoE in input Voltage | 12-57 V |
| PoE out | Passive PoE up to 57V |
| PoE-out ports | Ether2 |
| SFP ports | 1 |
| Tested ambient temperature | -20°C to 70°C |
