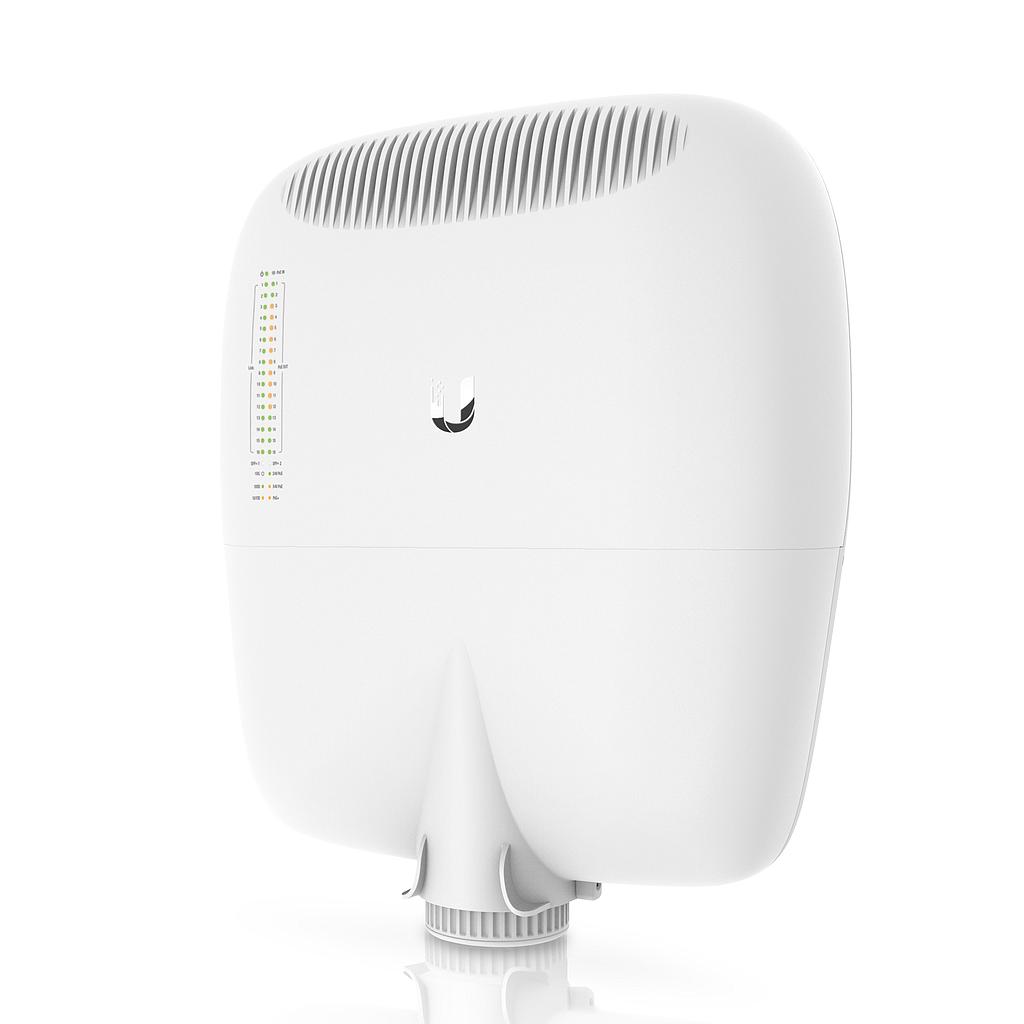

Ubiquiti EP-S16 EdgePoint WISP Switch 16-port
Product Code: EP-S16
The EdgePoint™ offers an innovative combination of robust routing performance, fiber backhaul capability, and the convenience of passive PoE support. Ubiquiti Networks introduces the EdgePoint™, part of the EdgeMAX® platform.
The first application-specific designed WISP control point, the EdgePoint combines EdgeMAX routing features with fiber backhaul and versatile powering capabilities. The EdgePoint is available in three models:
EP-R6 Layer-3 router
EP-R8 Layer-3 router
EP-S16 Layer-2 switch with some layer-3 capabilities
Breakthrough in Tower Deployment
The EdgePoint features FiberProtect to significantly reduce electrostatic discharge (ESD) failures and electromagnetic interference (EMI), greatly improve data signal integrity, and consolidate the wired data backhaul to a single fiber cable run for long-distance connectivity.
Switching Configuration:
The EP-S16 provides advanced features, including:
MSTP/RSTP/STP
VLAN, Private VLAN, Voice VLAN
Link Aggregation
DHCP Snooping, IGMP Snooping
TACACS+, RADIUS, 802.1X, MAC Filtering, ACL
DiffServ, CoS
Static Routing, Policy-Based Routing
Advanced Applications:
For the EP-S16, layer-2 link aggregation provides similar redundancy and increased performance benefits.
EP-S16 Features:
The EP-S16 features 16 RJ45 Ethernet ports and two SFP+ ports.
The Bottom Panel
Power Options:
54VDC, 6A Terminal Block
Dual PoE Input
(1) Console Port
Data;Ports*
(16) RJ45 Ports
(2) SFP+ Ports
Sixteen RJ45 ports support PoE:
PoE Input or Output:
(2) Ports with Two Options:
54V, 1.5A Passive PoE Input or
54 or 24V, 1.4A Passive PoE Output*
PoE Output
(2) 54 or 24V, 1.4A Passive PoE Output Ports*
(12) PoE+ or 24V, 0.7A Passive PoE Output Ports*
Cabling Protection:
Strain Relief for Fiber Optic Strands:
Cable Sleeve and Option for Conduit (Not Included)
Cable Tie Slots (Cable Ties Not Included)
Back Panel:
Lanyard Loop for Ease of Installation
Slot for PicoStation®M2HP (Not Included) to Allow for Wireless Management
Pole-Mount Bracket (Wall-Mount Bracket Also Included)
Ground Bonding Point
Accessories (Sold Seperately)
EdgePower 54V, 150W DC Power Supply Unit
