Ubiquiti EP-54V-150W EdgePower, 54v, 150W


Product Code: EP-54V-150W

Barcode: 810354023972

354.09 incl. GST 354.09000000000003 AUD 354.09


    This combination does not exist.

    Add to Cart


    Ubiquiti Inc offers a broad and expanding portfolio of networking products and solutions for service providers and enterprises. Their service provider product platforms provide carrier-class network infrastructure for fixed wireless broadband, wireless backhaul systems and routing. Their enterprise product platforms provide wireless LAN infrastructure, video surveillance products, switching and routing solutions and machine-to-machine communication components. Ubiquiti Networks believes that their products are highly differentiated due to proprietary software protocol innovation, firmware expertise, and hardware design capabilities.

    100% Original
    Fast Delivery

    Share this product:

    Ubiquiti EP-54V-150W EdgePower, 54v, 150W

    Product Code: EP-54V-150W

    Barcode: 810354023972

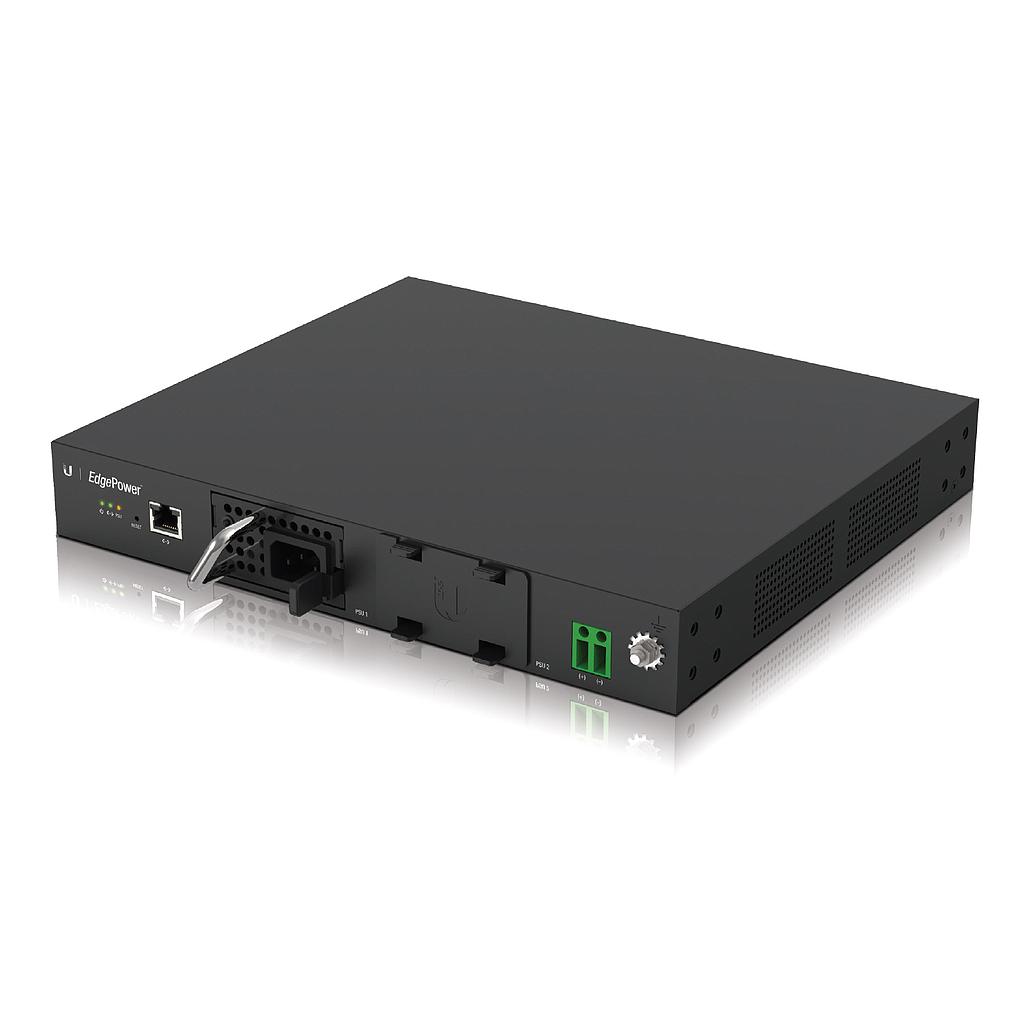

    The EdgePower is a high power, modular PSU system designed to connect to EdgePoint routers/switches, and provide reliable power to attached PoE devices. The EdgePower uses modular PSUs for flexible configuration options. The EdgePower can utilize two modular PSUs to provide up to 300W of power, or be configured to provide up to 150W of power with an automatic PSU backup. It consists of a rack mountable, two-bay housing and control unit, and includes one AC-DC 54V, 150W PSU module. The second PSU bay can house an AC-DC or DC-DC PSU module.

    Product Includes:

    • (1) EP-54V-150W

    • (1) Power Cord

    • (4) Mount Brackets

    • (16) M4 x 5.4 Bracket Screws

    • (4) #10-32 x 5/8" Rack-Mount Screws

    • (4) #10-32 x 5/8" Cage Nuts

    • (8) M4 x 30 Mounting Screws

    • (8) M4 x 24 Screw Anchors

    • (1) Quick Start Guide

    Product Specification:

    • Dimensions (w/o mount brackets): 299.8 x 286.9 x 42.55 mm (11.89 x 11.3 x 1.675")

    • Weight (w/o mount brackets): 2.7 kg (5.95 lbs)

    • Power Method: 100-240VAC/50-60 Hz, Universal Input

    • Maximum Power Output: 150W (1 PSU Module) / 300W (2 PSU Modules @ 150W Each)

    • LEDs: System On/Off, Management Port Link, PSU1+PSU2, PSU1/PSU2

    • Networking Interface: (1) 10/100 RJ45 Ethernet

    • Management Interface: Ethernet In-Band, Web UI

    • Rack-Mount: Yes, 1U High

    • Operating Temperature: 0 to 40°C (32 to 104°F)

    • Operating Humidity: 10 to 90% RH

    • ESD/EMP Protection: Air ± 24KV; Contact ± 24KV

    • Certifications: CE, FCC, IC
