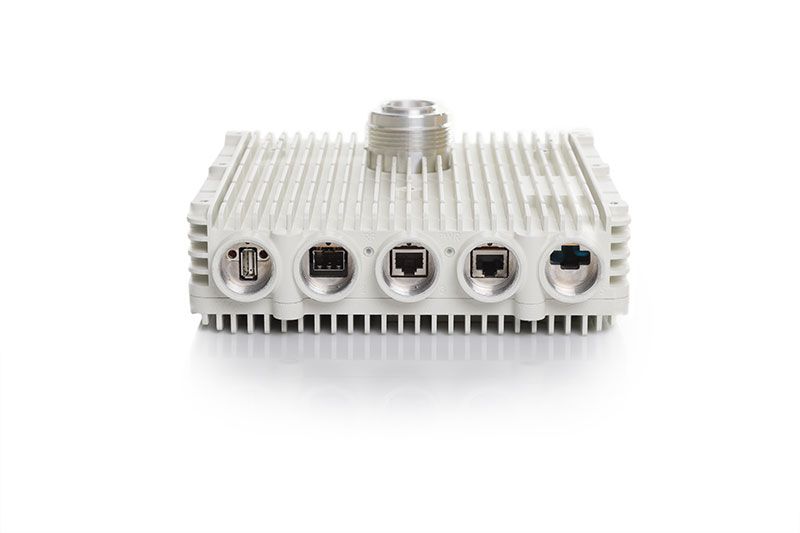

Siklu EH-8010FX-ODUL-N-2C1P-EX-D EtherHaul-8010FX ODU with ANT. port, TX Low; Power: DC/PoE; Capacity up to 10Gbps; ports: 1x dual-media RJ-45/SFP+ (1x RJ-45 for management/traffic)
Siklu
Siklu brought to the market affordable gigabit capacity for a variety of applications. Our technology brings scalability, multi-gigabit capacity and reliability to the world of wireless networks, and we are dedicated to delivering great value through fast-and-easy-to-deploy solutions that deliver flawless, predictable performance.
Share this product:
Siklu EH-8010FX-ODUL-2C1P-EX-D EtherHaul-8010FX ODU with ANT. port
10Gbps 70/80GHz Radi Wireless Fibre Connectivity
The EH-8010FX delivers 10Gbps Full Duplex throughput for high capacity networks in Metro, Aggregation and Trunking applications.
Applications for a Wide Range of Vertical Markets
- Fibre Network Extension/ Backup
- Enterprise Multi Gigabit-Connectivity
- Metro and Aggregation Networks
- Multi-Dwelling Unit Gigabit Broadband
- Mobile Backhaul
10Gbps Over Long Distance
The EH-8010FX radio delivers 10Gbps full duplex point-to-point wireless Ethernet connectivity with the longest mmWave reach by means of the highest system gain in the market. Incorporating dozens of Siklu innovations, the EH-8010FX is based on the same platform that has been deployed in tens of thousands of links from the EtherHaul family.
Carrier Grade Features
High throughput and low latency combine to deliver fibre compatible performance. The EH-8010FX incorporates QoS-aware adaptive bandwidth coding and modulation for high availability and easy integration with Ethernet switches or MPLS routers in highly resilient topologies.
The EH-8010FX is designed to connect into existing networks with its support for both copper and fibre 10G interfaces allowing service providers and enterprises to extend their copper or fibre networks.
Small Size, Easy to Deploy & Manage
The all-outdoor radio has a small footprint and is light weight which makes site acquisition a breeze. The product comes pre-configured out of the box with no license to download greatly simplifying the time and cost for installation. The intuitive web GUI manages local and remote units to enable fast commissioning and configuration.
Exceptional Value
With its IP67 construction, the EH-8010FX is extremely rugged and designed to last for years in the harshest conditions at a price that yields quick Return-On-Investment (ROI) and minimises Total Cost of Ownership (TCO). The advanced 10Gbps system delivers an unbeatable price per Gb. Its small and light form factor lowers installation costs, increases reliability and reduces site visits.
Massive Spectrum Availability, and High Reuse
The EH-8010FX operates over the interference-free 71-76/81-86GHz E-band spectrum, with a total of 10GHz of bandwidth for use worldwide. By using a high-gain pencil-beam antenna, this helps guarantee spectrum will be available everywhere and maximises spectrum re-use. Additionally, E-band systems are governed by low licensing fees and a quick licensing processes.
Details | |
Product Code | EH-8010FX-ODUL-2C1P-EX-D |
Frequency / Duplexing | 71-76GHz / 81-86GHz, FDD |
Channel Bandwidth, Modulation & Adaptive Rate | 2,000MHz, Up to 9 levels of hitless adaptive bandwidth, coding and modulation - boost gain by over 25dB |
Throughput | 10,000Mbps full duplex |
Tx Power | BPSK: +18dBm, QAM128: +14dBm |
Receive Signal Level (RSL) | RSL @ BPSK = -75dBm, RSL @ QAM128 = -50dBm |
Reach | 1.7/2.3 mile @ 99.95% availability (rain zone K/E, 2ft ANT.) |
Interfaces | 1 combo 10GE port: 802.3bz (RJ-45, CAT6a or better) or SFP+ (MMF or SMF), 1GE port: 802.3ab (RJ-45, CAT5 or better) |
Power Supply | PoE+ or 36÷57VDC; 50W |
Management & Provisioning | In / Out-of-band management, Web GUI or CLI, SNMPv2/3, TACACS+, RADIUS, Zero-touch turn-up |
Traffic Management | Transparent Bridge, VLAN encapsulation |
Conformance | Radio: USA FCC Part 15.101 & ETSI EN 302 217; EMC: USA FCC 47CFR.part 15 & ETSI EN 301 489; Safety UL/EN 60950 |
Environmental | Operating Temperature: -45° to +55°C (-49° to +131°F), Ingress Protection Rating: IP67 |
Dimensions | ODU + 0.5ft antenna: 9.17” x 8.11” x 5.55” (23.3cm x 20.6cm x 14.1cm), ODU + 1ft antenna (Dia. x Depth): 12.6” x 4.3” (32cm x 13cm), ODU + 2ft antenna (Dia. x Depth): 25.6” x 15.35” (65cm x 37cm) |
Weight | ODU + 0.5ft antenna: 9.2lbs. (4.1kg), ODU + 1ft. antenna: 9.9lbs. (4.4kg), ODU + 2ft. antenna: 24.3lbs (10.9kg) |
