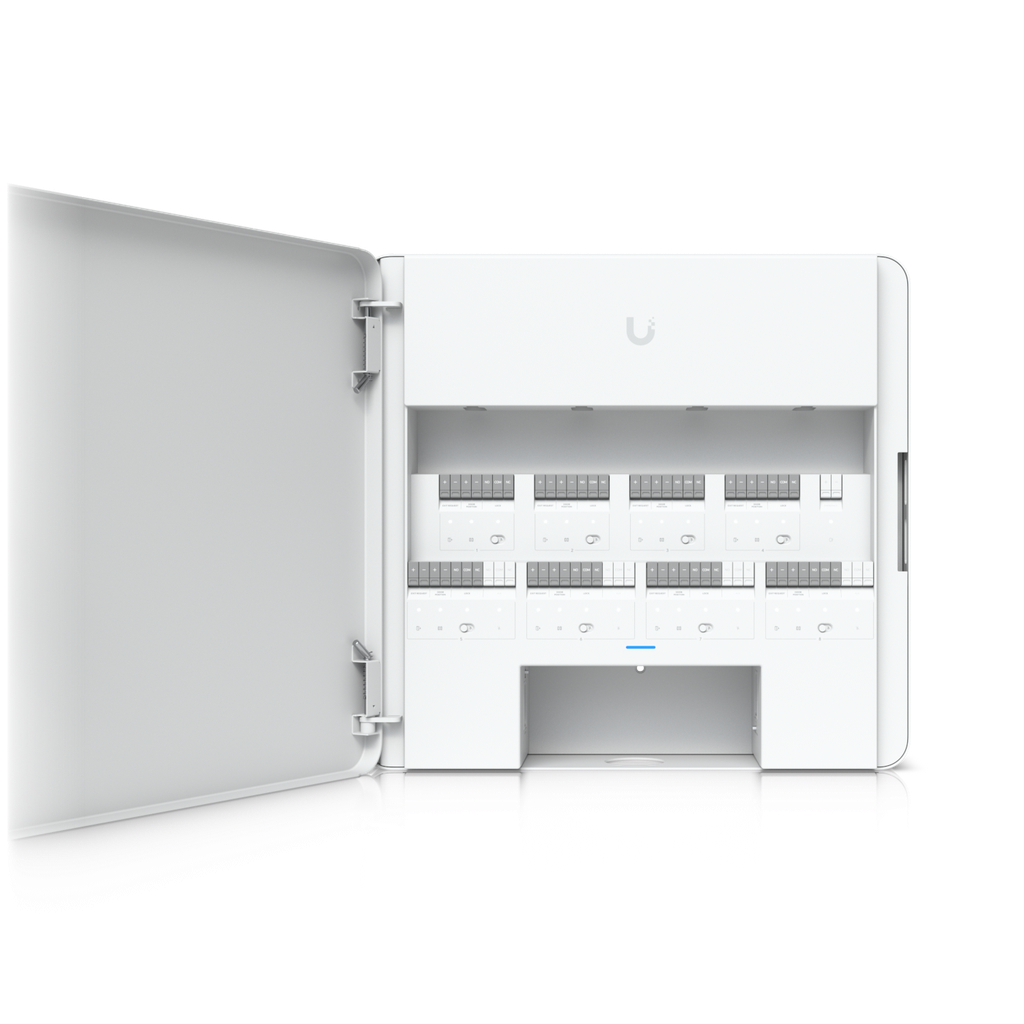

Ubiquiti EAH-8 UniFi Enterprise Access Hub, Entry/Exit Control to 8 Doors, Battery Backup Support, Lock terminals

https://citytechnology.com.au/web/image/product.template/20970/image_1920?unique=60eb899

Product Code: EAH-8

2,706.77 incl. GST 2706.77 AUD 2,706.77

2,389.00


    This combination does not exist.

    Add to Cart

    Ubiquiti
    Ubiquiti

    Ubiquiti Inc offers a broad and expanding portfolio of networking products and solutions for service providers and enterprises. Their service provider product platforms provide carrier-class network infrastructure for fixed wireless broadband, wireless backhaul systems and routing. Their enterprise product platforms provide wireless LAN infrastructure, video surveillance products, switching and routing solutions and machine-to-machine communication components. Ubiquiti Networks believes that their products are highly differentiated due to proprietary software protocol innovation, firmware expertise, and hardware design capabilities.


    100% Original
    Fast Delivery


    Share this product:

    Ubiquiti EAH-8 UniFi Enterprise Access Hub, Entry/Exit Control to 8 Doors, Battery Backup Support, Lock terminals

    Ubiquiti Enterprise Access Hub

    Ubiquiti Enterprise-grade access hub with entry and exit control to eight doors and battery backup support.

    (8) Lock terminals (12V or Dry)

    (8+8) Inputs for request-to-exit devices and door position sensors

    (8) PoE ports for Access Readers

    (4) AUX terminals for chimes, sirens, or door openers

    (1) Battery backup input (32–48V)


    Technical Specifications

    Mechanical

    • Dimensions 379 x 355 x 105 mm (15 x 14 x 4.1")

    • Weight Device: 9.1 kg (20 lb)

    • Mount: 624 g (1.4 lb)

    • Enclosure material SGCC housing with PC cover

    • Mounting material SGCC wall mount plate

    Hardware

    • Networking interface (10) 10/100/1000 Base-T

    • Power method Universal input, 100-240V AC,~4.4A Max, 50/60Hz

    • 32–48V DC Lead Acid Battery

    • Power supply AC/DC, internal

    • Max. power consumption 240W

    • PoE interface (8) PoE (Pins 1, 2+; 3, 6-)

    • Voltage range PoE mode 44–57V DC

    • Total available PoE 60W

    • Max. PoE wattage per port 15.4W

    • Button (1) Factory-reset

    • LEDs System: white/blue

    • Output relays: steady white

    • Ethernet: flashing white

    • Digital input (8) Inputs for request-to-exit devices

    • (8) Inputs for door position sensors

    • (1) Emergency

    • Dry output relay (8) Lock terminals (12V or Dry)

    • (4) AUX terminals for advanced setup (Chime/Siren/Door opener)

    • Powered output relay Lock: 12V DC, 1A/ Dry

    • Aux: Dry only
