Mikrotik CRS804-4DDQ-hRM 4 x 400G DD QSFP56 2 x 10G Ethernet
MikroTik CRS804-4DDQ-hRM compact 1U 400G switch with 4 x QSFP56-DD ports, dual 1G/10G Ethernet, RouterOS v7 and redundant power.
MikroTik
MikroTik provides hardware and software for Internet connectivity. Our experience in using industry standard PC hardware and complete routing systems allowed us in 1997 to create the RouterOS software system that provides extensive stability, controls, and flexibility for all kinds of data interfaces and routing.
Share this product:
MikroTik CRS804-4DDQ-hRM 400G QSFP56-DD Switch
Product code: CRS804-4DDQ-hRM
The MikroTik CRS804-4DDQ-hRM is a compact 1U 400 Gigabit switch designed for high-bandwidth fabrics, AI and GPU clusters, all-flash storage networks and future-ready backbone upgrades.
Use CRS804-4DDQ-hRM where 400G uplinks, dense high-speed switching and MikroTik RouterOS v7 management are required in a cost-effective rackmount form factor.
Four 400G QSFP56-DD ports
Four QSFP56-DD interfaces provide 400G connectivity and support breakout modes down to 1G, 2.5G, 5G, 10G, 25G and 50G.
Dual 1G/10G Ethernet
Two RJ45 Ethernet ports support 10M, 100M, 1G and 10G modes for management or flexible connectivity.
High-speed switch silicon
The Marvell 98DX7335 switch chip is built for wire-speed switching across the 400G port set.
Enterprise rack hardware
Dual redundant AC inputs, hot-swap power supplies, hot-swap cooling fans and RouterOS v7 support demanding network environments.

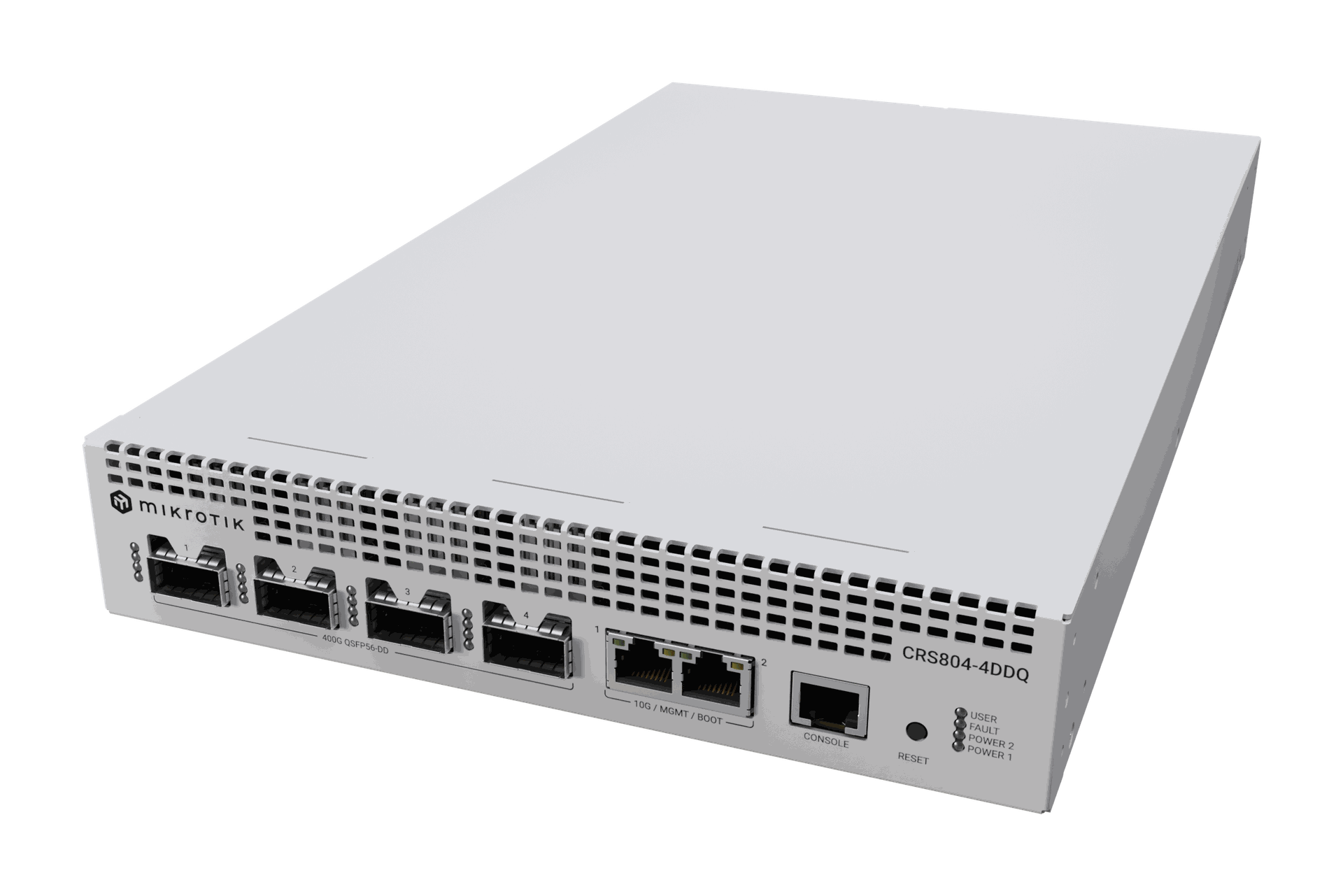

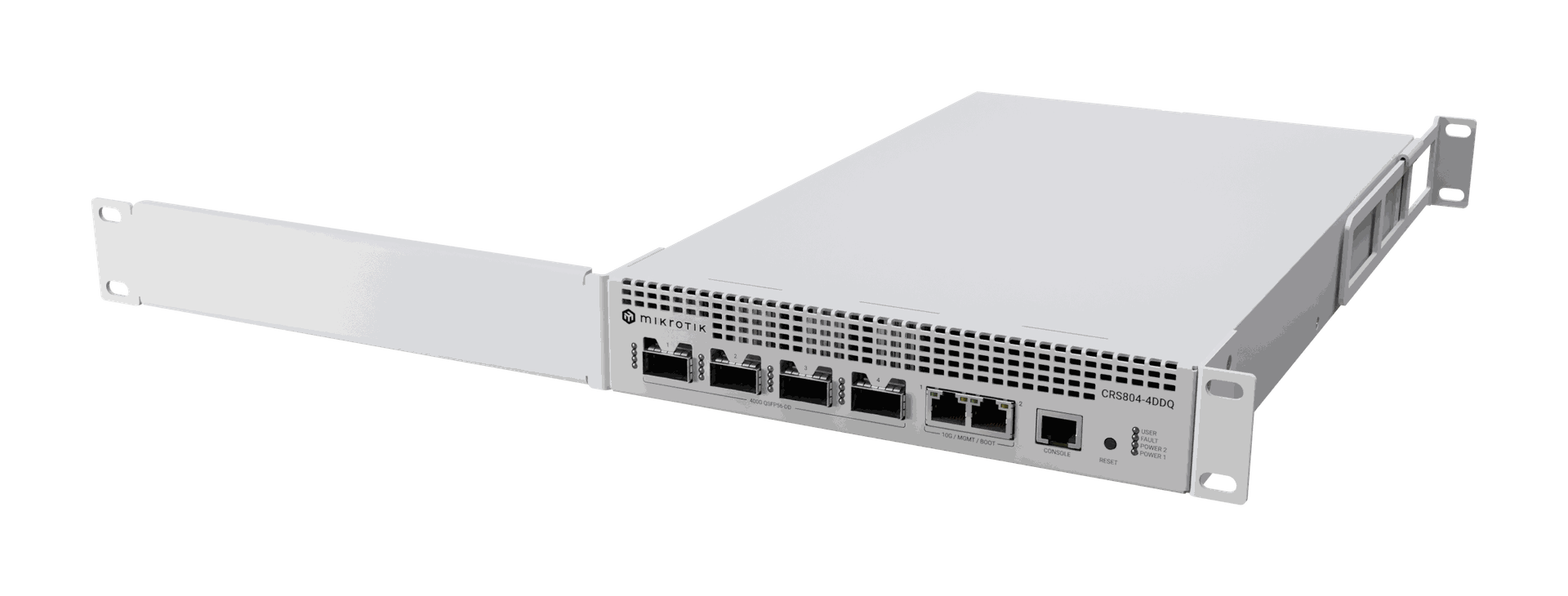

Product views
Ideal applications
- AI and GPU cluster switching
- 400G backbone and aggregation links
- All-flash storage fabrics and high-throughput data movement
- Media production and scientific workloads
- Future-proofing existing core networks with 400G capacity
Key specifications
- Product code: CRS804-4DDQ-hRM
- CPU: AL52400 quad-core ARM 64-bit
- CPU frequency: 2000 MHz
- Memory: 4 GB RAM
- Storage: 512 MB NAND
- Operating system: RouterOS v7, license level 6
- Switch chip: 98DX7335
- QSFP56-DD: 4 x 400G QSFP56-DD ports
- Ethernet: 2 x 1G/2.5G/5G/10G Ethernet ports, supported 10M/100M/1G/10G
- Power: 2 x 100-240 V AC inputs
- Max power consumption: 123 W, or 92 W without attachments
- Cooling: 2 hot-swap fans
- Included parts: 2 x IEC cords, rackmount hardware, rear support ears, RMK-2x10/19 and K-99 fastening set
- Operating temperature: -10°C to 60°C
- Certifications: CE, EAC, ROHS
- IP rating: IP20
Why choose the CRS804-4DDQ-hRM?
The CRS804-4DDQ-hRM brings 400G switching into a compact MikroTik platform with practical management ports, RouterOS v7, redundant power and hot-swap cooling. It is aimed at sites that need very high throughput without moving straight to a much larger enterprise chassis.
Frequently asked questions
What are the main ports on the CRS804-4DDQ-hRM?
It has four 400G QSFP56-DD ports plus two RJ45 Ethernet ports that support 10M, 100M, 1G and 10G modes.
Can the QSFP56-DD ports use breakout modes?
Yes. MikroTik lists breakout support for 1G, 2.5G, 5G, 10G, 25G and 50G modes on the QSFP-DD ports.
What workloads is this switch suited to?
It is suited to AI and GPU clusters, all-flash storage fabrics, compact 400G cores and high-throughput backbone upgrades.
Does it have redundant power?
Yes. The CRS804-4DDQ-hRM includes dual AC inputs and hot-swap power supplies.
Which operating system does it run?
It runs MikroTik RouterOS v7 with license level 6.
