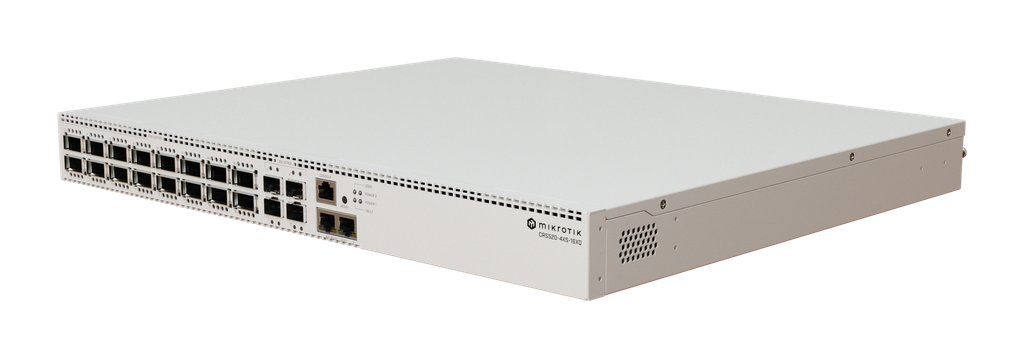

Mikrotik CRS520-4XS-16XQ-RM 16x 100G QSFP28 ports, 4x 25G SFP28 ports
MikroTik
MikroTik provides hardware and software for Internet connectivity. Our experience in using industry standard PC hardware and complete routing systems allowed us in 1997 to create the RouterOS software system that provides extensive stability, controls, and flexibility for all kinds of data interfaces and routing.
Share this product:
Mikrotik CRS520-4XS-16XQ-RM 16x 100G QSFP28 ports, 4x 25G SFP28 ports
An ultra-fast enterprise switch with extra processing power due to the CCR series CPU & the best price per 100 Gigabit port on the market!
Welcome to the forefront of networking: the future-proof CRS520-4XS-16XQ-RM with extra processing power, 4 GB of DDR4 RAM, and the best price per 100 Gigabit port we’ve seen so far.
With 16x 100 Gigabit QSFP28 ports, 4x 25 Gigabit SFP28 ports, and an extra pair of 10 Gigabit Ethernet ports, this switch can bring a lot of value to complicated enterprise networks, data centers, multimedia studios, and other setups where you would typically use several devices. Now – a single CRS520 can do the trick!
Avid CCR users might recognize the powerful quad-core ARM CPU running at 2 GHz, and ask – why would a switch need all that power? Two reasons:
1) CRS520 is more than a switch. You can run OSPF/BGP, out-of-band/management VPNs, ACLs, Jumbo frames and even L3HW Offloaded routing;
2) Future-proofing: as our friends at Marvell keep expanding the capabilities of their spectacular switch-chips, our in-house software team is busy exploring ways to add even more Hardware Offloaded features. You can expect software updates that will take the CRS520 to the next level! And all that without any paywalls or subscriptions.
Specifications
Details | |
---|---|
Product code | CRS520-4XS-16XQ-RM |
Architecture | ARM 64bit |
CPU | AL52400 |
CPU core count | 4 |
CPU nominal frequency | 2 GHz |
Switch chip model | 98CX8410 |
RouterOS license | 5 |
Operating System | RouterOS v7 |
Size of RAM | 4 GB |
Storage size | 128 MB |
Storage type | NAND |
MTBF | Approximately 200'000 hours at 25C |
Tested ambient temperature | -20°C to 50°C |
Suggested price | $3495.00 |
Powering
Details | |
---|---|
Number of AC inputs | 2 |
AC input range | 100-240 |
Frequency (Hz) | 47-63 |
Max power consumption | 183 W |
Max power consumption without attachments | 123 W |
Cooling type | 4 fans |
Ethernet
Details | |
---|---|
Number of 1G/2.5G/5G/10G Ethernet ports | 2 |
Fiber
Details | |
---|---|
Number of 25G SFP28 ports | 4 |
Number of 100G QSFP28 ports | 16 |
Peripherals
Details | |
---|---|
Serial console port | RJ45 |
Other
Details | |
---|---|
CPU temperature monitor | Yes |
PCB temperature monitor | Yes |
Voltage Monitor | Yes |
Certification & Approvals
Details | |
---|---|
Certification | CE, EAC, ROHS |
IP | 20 |
