Mikrotik CRS518-16XS-2XQ-RM 2x 100G QSFP28 ports,16x 25G SFP28 ports

Product Code: CRS518-16XS-2XQ-RM

2,282.40 incl. GST 2282.4 AUD 2,282.40

2,329.00


    This combination does not exist.

    Add to Cart

    MikroTik
    MikroTik

    MikroTik provides hardware and software for Internet connectivity. Our experience in using industry standard PC hardware and complete routing systems allowed us in 1997 to create the RouterOS software system that provides extensive stability, controls, and flexibility for all kinds of data interfaces and routing.


    100% Original
    Fast Delivery


    Share this product:

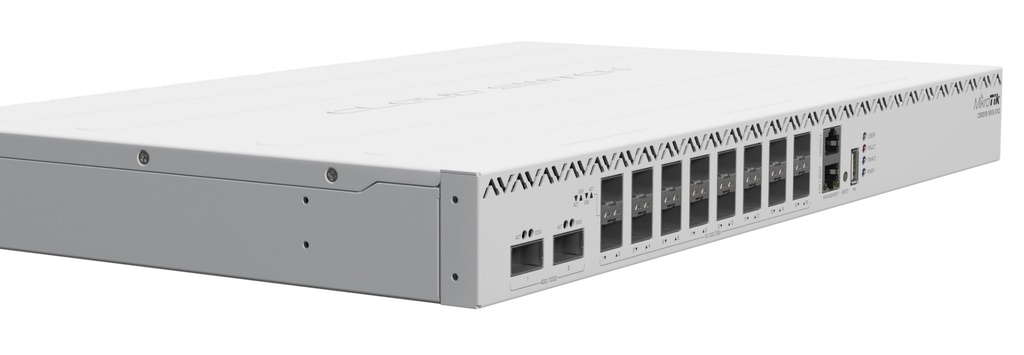

    Mikrotik CRS518-16XS-2XQ-RM 2x 100G QSFP28 ports,16x 25G SFP28 ports

    Mikrotiks 100 Gigabit switch for enterprise networks and data centers. Hot-swappable parts and insane port density with 1.2 Tbps switching capacity!

    'Mikrotiks 100 Gigabit product family grows, the time has come to introduce a serious enterprise-level switch. A switch that is up for the challenge when the CRS504 port density is just not enough. Introducing the spectacular CRS518-16XS-2XQ!With 2x 100 Gigabit QSFP28 ports and 16x 25 Gigabit SFP28 ports, this is the perfect cost-effective addition to any enterprise network or data center. And with dual-redundant hot-swappable power supplies and fans, you won’t have to worry about unnecessary downtime.

    Here’s a real-life setup – similar to the one we’re using in our office:

    At the top, you could place two flagship CCR2216 routers to provide the main connectivity and routing. Then a blazing-fast 100 Gigabit connection leads to three CRS518 distribution level switches. This is where all the magic happens. The CRS518 switches connect every access level device to the main network, deal with traffic filtering, and network policy enforcement. And they handle all that with grace and dignity – thanks to the fantastic Marvell Prestera Aldrin2 switch-chip. The same chip you’ve seen in our flagship CCR2216 that did wonders with L3 Hardware Offloading.

    The two hot-swap power supplies support a high input voltage range: 100-240V. The board itself uses up to 45W of power, while the total maximum power consumption goes up to 77W with all the attachments. It can be a bit more power-hungry than the CRS504, but you would be too if you had 16x 25-Gigabit ports, wouldn’t you? Our 100 Gigabit product family keeps growing: switches, routers, cables, and QSFP28 modules. If you want real speed and ultimate flexibility for the best price on the market – you want MikroTik!

    Specifications

    • Product code CRS518-16XS-2XQ-RM

    • Switch chip model 98DX8525

    • CPU QCA9531 650 MHz

    • CPU architecture MIPSBE

    • CPU core count 1

    • Size of RAM 64 MB

    • RAM type DDR2

    • Storage 16 MB, Flash

    • Number of 100M Ethernet ports 1

    • Number of 25G SFP28 ports 16

    • Number of 100G QSFP28 ports 2

    • USB port 1 (type A)

    • Operating system Only v7 RouterOS

    • Dimensions 443 x 265 x 44.5 mm

    • Operating temperature -40°C to +70°C

    Powering

    • Number of AC inputs 2

    • Nominal voltage 12 V

    • Nominal current 12.5 A

    • AC input range 100-240 V

    • Max power consumption (without attachments) 45 W

    • Max power consumption 77 W
