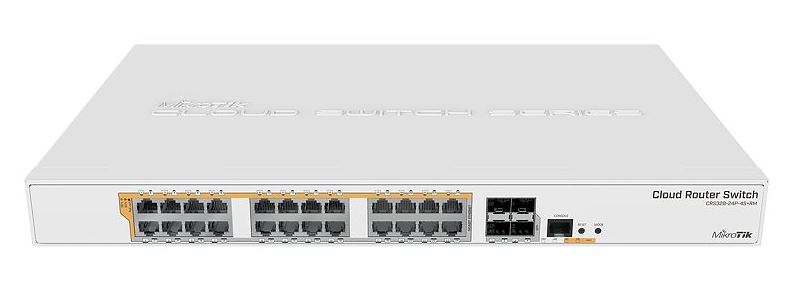

MikroTik CRS328-24P-4S+RM 500W 24 PoE+ Gigabit Ethernet 4 SFP+ ports Rack Mount
MikroTik
MikroTik provides hardware and software for Internet connectivity. Our experience in using industry standard PC hardware and complete routing systems allowed us in 1997 to create the RouterOS software system that provides extensive stability, controls, and flexibility for all kinds of data interfaces and routing.
100% Original
Fast Delivery
Share this product:
MikroTik CRS328-24P-4S+RM 500W 24 PoE+ Gigabit Ethernet 4 SFP+ ports Rack Mount
CRS328-24P-4S+RM is a 28 independent port switch, it has 24 Gigabit Ethernet ports, which offer different power output options: Passive PoE, low voltage PoE, 802.3af/at (Type 1 “PoE” / Type 2 “PoE+”) with auto-sensing. PoE-Out is passed over mode B pins (4,5+)(7,8-). The four SFP+ ports provide up to 10 Gbps connectivity options via either optical fiber or Ethernet modules (not included).
CRS328-24P-4S+RM comes in a 1U rackmount case with 100-240 V AC 500 W power supply built-in. The device consumes up to 44 W leaving guaranteed 450 W (3x150 W per every 8 Ethernet ports) to power your PoE devices. Each port can provide up to 30 W of power with any power output option you choose.
The device has a “Dual boot” feature that allows you to choose between two operating systems - RouterOS or SwOS. If you prefer to have a simplified operating system with only switch specific features, use SwOS. If you would like the ability to use routing and other Layer 3 features in your CRS, use RouterOS. You can select the desired operating system from RouterOS, from SwOS or from the RouterBOOT loader settings. All the feature set comes with disruptive price, providing best price/performance on the market.
Specifications:
Product code: CRS328-24P-4S+RM
Architecture: ARM 32bit
CPU: 98DX3236
CPU core count: 1
CPU nominal frequency: 800 MHz
Dimensions: 443 x 300 x 44 mm
RouterOS licence: 5
Operating System: RouterOS / SwitchOS
Size of RAM: 512 MB
Storage size: 16 MB
Storage type: FLASH
MTBF: Approximately 200'000 hours at 25C
Tested ambient temperature: -20°C to 60°C
Powering:
Number of AC inputs: 1
AC input range: 100-240
Max power consumption: 494 W
Max power consumption without attachments: 44 W
Cooling type: 2 fans
PoE-out:
PoE-out ports: Ether1-Ether24
PoE out: 802.3af/at
Max out per port output (input 18-30 V): 1000 mA
Max out per port output (input 30-57 V): 450 mA
Max total out (A): 20 A
Ethernet:
10/100/1000 Ethernet ports: 24
Fibre:
SFP+ ports:4
Peripherals:
Serial console port: RJ45
Other:
CPU temperature monitor: Yes
Current Monitor: Yes
PCB temperature monitor: Yes
Voltage Monitor: Yes
Mode button: Yes
Certification & Approvals:
Certification: CE, EAC, ROHS
IP: IP00
