MikroTik CRS328-24P-4S+RM 500W 24 PoE+ Gigabit Ethernet 4 SFP+ ports Rack Mount

Product Code: CRS328-24P-4S+RM

Barcode: 4752224002228

888.20 incl. GST 888.2 AUD 888.20

859.00


    This combination does not exist.

    Add to Cart

    MikroTik
    MikroTik

    MikroTik provides hardware and software for Internet connectivity. Our experience in using industry standard PC hardware and complete routing systems allowed us in 1997 to create the RouterOS software system that provides extensive stability, controls, and flexibility for all kinds of data interfaces and routing.


    100% Original
    Fast Delivery


    Share this product:

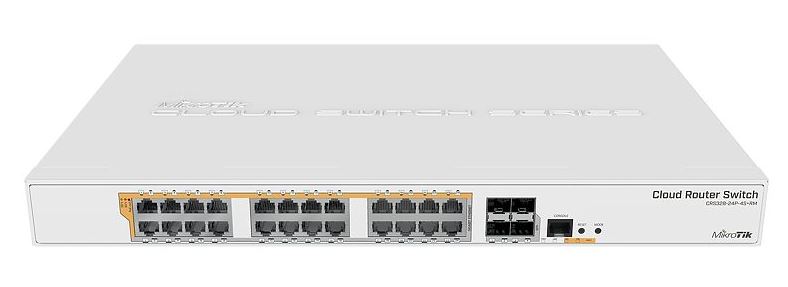

    MikroTik CRS328-24P-4S+RM 500W 24 PoE+ Gigabit Ethernet 4 SFP+ ports Rack Mount


    CRS328-24P-4S+RM is a 28 independent port switch, it has 24 Gigabit Ethernet ports, which offer different power output options: Passive PoE, low voltage PoE, 802.3af/at (Type 1 “PoE” / Type 2 “PoE+”) with auto-sensing. PoE-Out is passed over mode B pins (4,5+)(7,8-). The four SFP+ ports provide up to 10 Gbps connectivity options via either optical fibre or Ethernet modules (not included).

    CRS328-24P-4S+RM comes in a 1U rackmount case with 100-240 V AC 500 W power supply built-in. The device consumes up to 44 W leaving guaranteed 450 W (3x150 W per every 8 Ethernet ports) to power your PoE devices. Each port can provide up to 30 W of power with any power output option you choose.

    The device has a “Dual boot” feature that allows you to choose between two operating systems - RouterOS or SwOS. If you prefer to have a simplified operating system with only switch specific features, use SwOS. If you would like the ability to use routing and other Layer 3 features in your CRS, use RouterOS. You can select the desired operating system from RouterOS, from SwOS or from the RouterBOOT loader settings. All the feature set comes with disruptive price, providing best price/performance on the market.



    Specifications:

    Details

    Product code

    CRS328-24P-4S+RM

    Architecture

    ARM 32bit

    CPU

    98DX3236

    CPU core count

    1

    CPU nominal frequency

    800 MHz

    Dimensions

    443 x 300 x 44 mm

    License level

    5

    Operating System

    RouterOS / SwitchOS

    Size of RAM

    512 MB

    Storage size

    16 MB

    Storage type

    FLASH

    Tested ambient temperature

    -20°C to 60°C


    Powering:

    Details

    Number of AC inputs

    1

    AC input range

    100-240

    Max power consumption

    494 W

    Max power consumption without attachments

    44 W


    PoE-out:

    Details

    PoE-out ports

    Ether1-Ether24

    PoE out

    802.3af/at

    Max out per port output (input < 30 V)

    1000 mA

    Max out per port output (input > 30 V)

    450 mA

    Max total out (A)

    20 A


    Ethernet:

    Details

    10/100/1000 Ethernet ports

    24


    Fiber:

    Details

    SFP+ ports

    4


    Peripherals:

    Details

    Serial port

    RJ45


    Other:

    Details

    CPU temperature monitor

    Yes

    PCB temperature monitor

    Yes

    Mode button

    Yes
