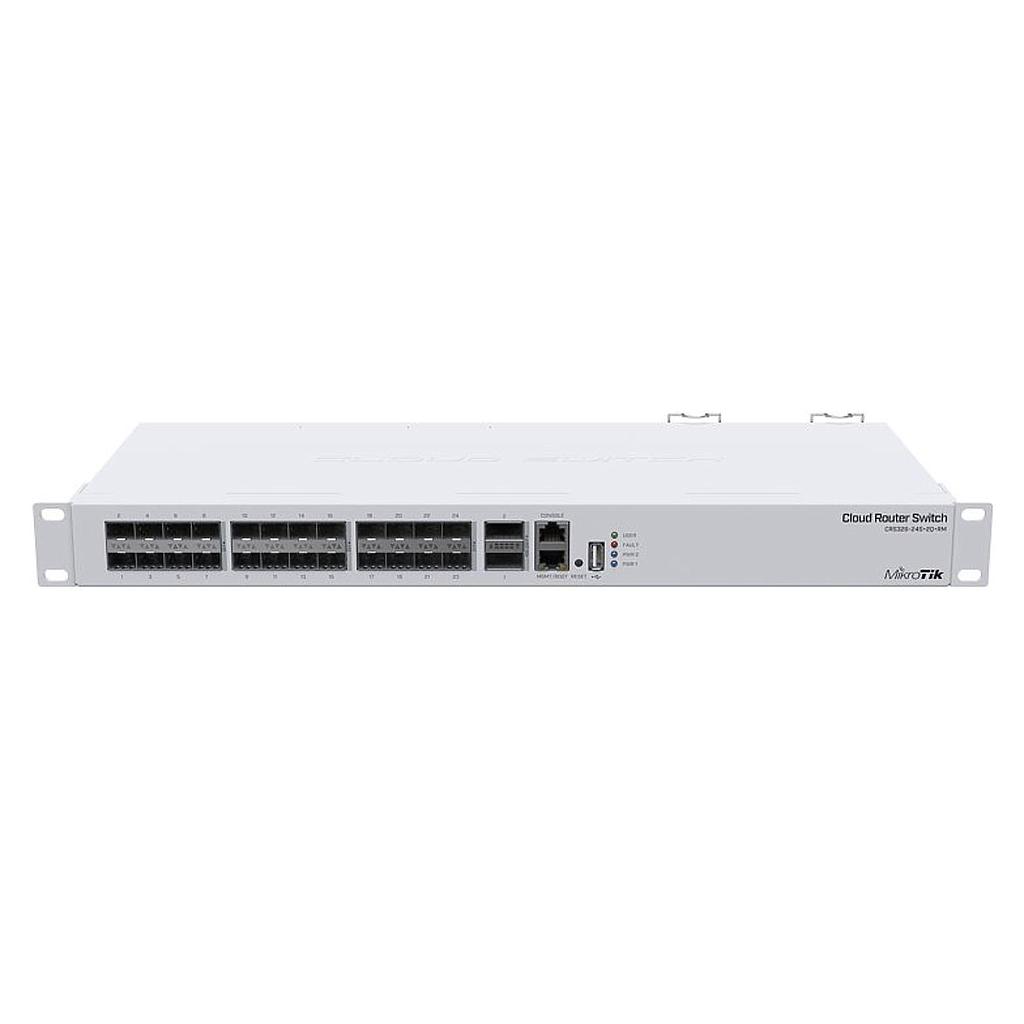

MikroTik CRS326-24S+2Q+RM 40Gpbs Switch 24 x SFP+, 2 x 40G QSFP
MikroTik
MikroTik provides hardware and software for Internet connectivity. Our experience in using industry standard PC hardware and complete routing systems allowed us in 1997 to create the RouterOS software system that provides extensive stability, controls, and flexibility for all kinds of data interfaces and routing.
100% Original
Fast Delivery
Share this product:
MikroTik CRS326-24S+2Q+RM 40Gpbs Switch 24 x SFP+, 2 x 40G QSFP
If you are working with substantial amount of data – like providing Internet access or maintaining a huge data center – this is the perfect upgrade for your setup. CRS326-24S+2Q+RM is our first product with 40 Gbps QSFP+ ports for remarkably fast and stable fiber connection.
Overall it has two 40 Gbps QSFP+ ports and twenty four 10 Gbps SFP+ ports, which provides total nonblocking throughput of 320 Gbps and switching capacity of 640 Gbps with forwarding rate of 252 Mpps with most common packets.
CRS326-24S+2Q+RM is easy to manage – it has a full size USB port for configuration and dual power supply for redundancy – no unexpected downtime, your clients and colleagues will be thankful!
You can choose between our legendary feature-packed RouterOS for booting or a simpler, but still powerful SwOS. If you would like the ability to use routing and other Layer 3 features in your CRS, use RouterOS
Specifications:
Product code: CRS326-24S+2Q+RM
Architecture: MIPSBE
CPU: QCA9531
CPU core count: 1
CPU nominal frequency: 650 MHz
Dimensions: 443 x 200 x 44 mm
RouterOS licence: 5
Operating System: RouterOS or SwitchOS
Size of RAM: 64 MB
Storage size: 16 MB
Storage type: FLASH
MTBF: Approximately 200'000 hours at 25C
Tested ambient temperature: -20°C to 60°C
Powering:
Number of AC inputs: 2
AC input range: 100-240
Max power consumption: 69 W
Max power consumption without attachments: 42 W
Cooling type: 3 fans
Ethernet:
10/100 Ethernet ports: 1
Fibre:
SFP+ ports: 24
Number of 40G QSFP+ ports: 2
Peripherals:
Serial console port: RJ45
Number of USB ports: 1
USB Power Reset: Yes
USB slot type: USB type A
Max USB current (A): 1
Certification & Approvals:
Certification: CE, EAC, ROHS
IP: IP20
